Wood Texture Wire Brush Machine

Wood Texture Wire Brush Machine

The wood texture wire brush machine uses rollers of different materials to brush surfaces with different effects, usually including steel wire rollers, nylon rollers, sandpaper rollers, and disc brushes.

Inquiry Contact

Technical parameters

Model	RMTS60	RMTS130
Max. working width	600mm	1300mm
Max working thickness	5-90mm	5-90mm
Feeding speed	5-30m/min	5-30m/min
First unit power	7.5kw Wire brush roller	11kw Wire brush roller
Second unit power	5.5kw Wire brush roller	7.5kw Wire brush roller
Third unit power	5.5kw nylon roller	5.5kw nylon roller
Weight	2300kg	4200kg

Video

Characteristic

The Model RMTS130 wood texture wire brush machine is suitable for surface process and antique imitation of solid wood panels, wood plastic panels, carbonized wood, veneer panels and other materials. It can be used for furniture manufacturing, floor processing, decorative panel texture production, etc. The processed wood has a distinct wood grain texture and natural wood grain concavo-convex surface.

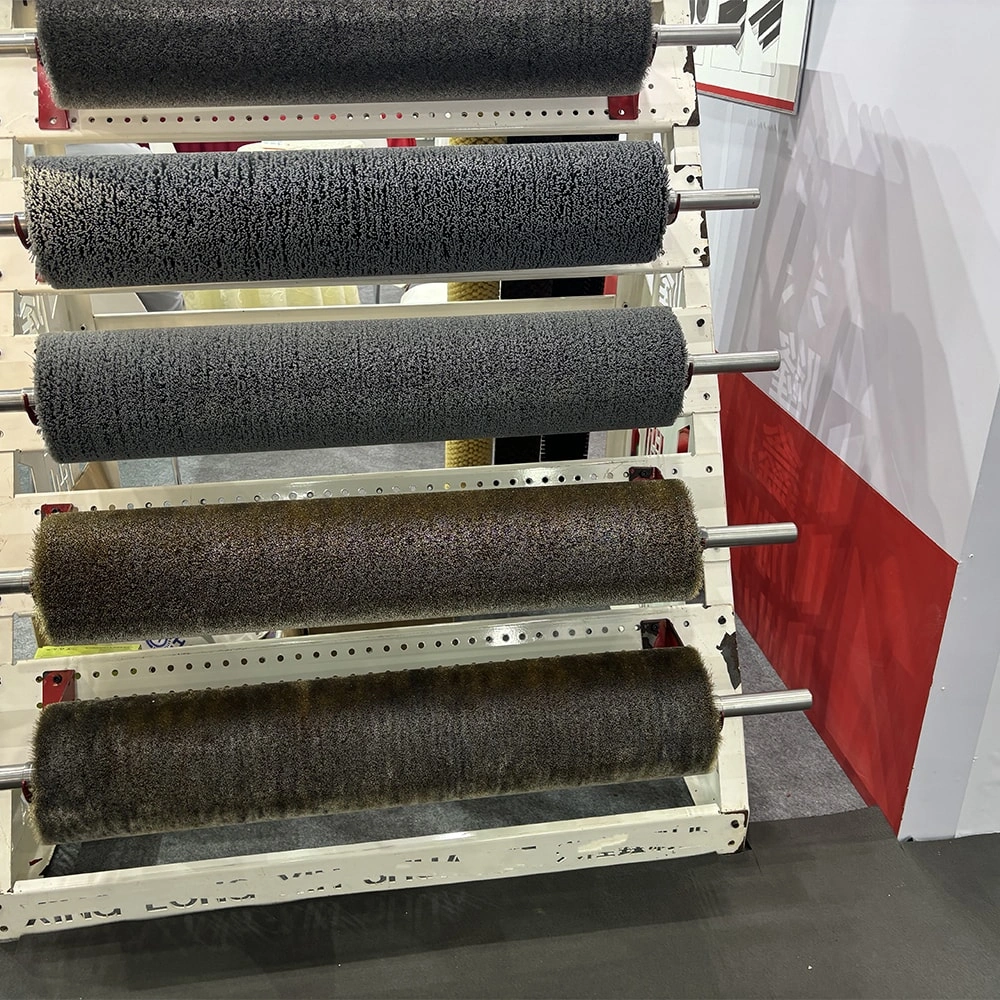

Wood texture wire brush machine can be equipped with different wire drawing rollers according to the customer's requirements, usually using combination of steel wire brush rollers and nylon rollers.

The function of steel wire brush rollers is for industrial style design with obvious unevenness and antique treatment of solid wood furniture. The function of nylon rollers is to combine with the polishing process to achieve a smooth to rough gradient effect.

Wood texture wire brush machine not only can the lifting of the workbench be adjusted, but the lifting of the rollers can also be adjusted separately. Suitable for various technical processes.

You may also be concerned about

The reasons for the deviation of the abrasive belt

The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Adjustment methods for abrasive belt deviatio

Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
Maintenance and repair of Wide Belt Sander

1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
Flow rate adjustment of the spray gun

The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Cleaning after using the spray painting machine

Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
