Brush Sanding Machine

Brush Sanding Machine

This brush sanding machine is used for surface polishing of solid wood, MDF board and wood-plastic board, especially for door and cabinet boards.

Inquiry Contact

Technical parameters

Model	RMG100S6	RMG130S6
Max Working Width	1000mm	1300mm
Working Thickness	8-160mm	8-160mm
Feeding speed	5-20m/min	5-20m/min
Cross brush amount	9pcs	9pcs
Brush disc amount	9pcs	9pcs
Brush roller power	2.2kw*2	2.2kw*2
Oscillating power	0.55kw*2	0.37kw*4
Working air pressure	≥0.6Mpa	≥0.6Mpa
Volume of dust collector	10000m3/h	12000m3/h

Video

Characteristic

This brush sanding machine is used for surface polishing of solid wood, MDF board and wood-plastic board, especially for door and cabinet boards.

The use of brush rollers can solve the problem of sanding uneven surfaces.It can make flat plate workpieces and painted parts smoother and more rounded. The main purpose is to sanding the workpieces with irregular surfaces.The brush sanding machine can be equipped with suitable brush heads according to different surface of the board.

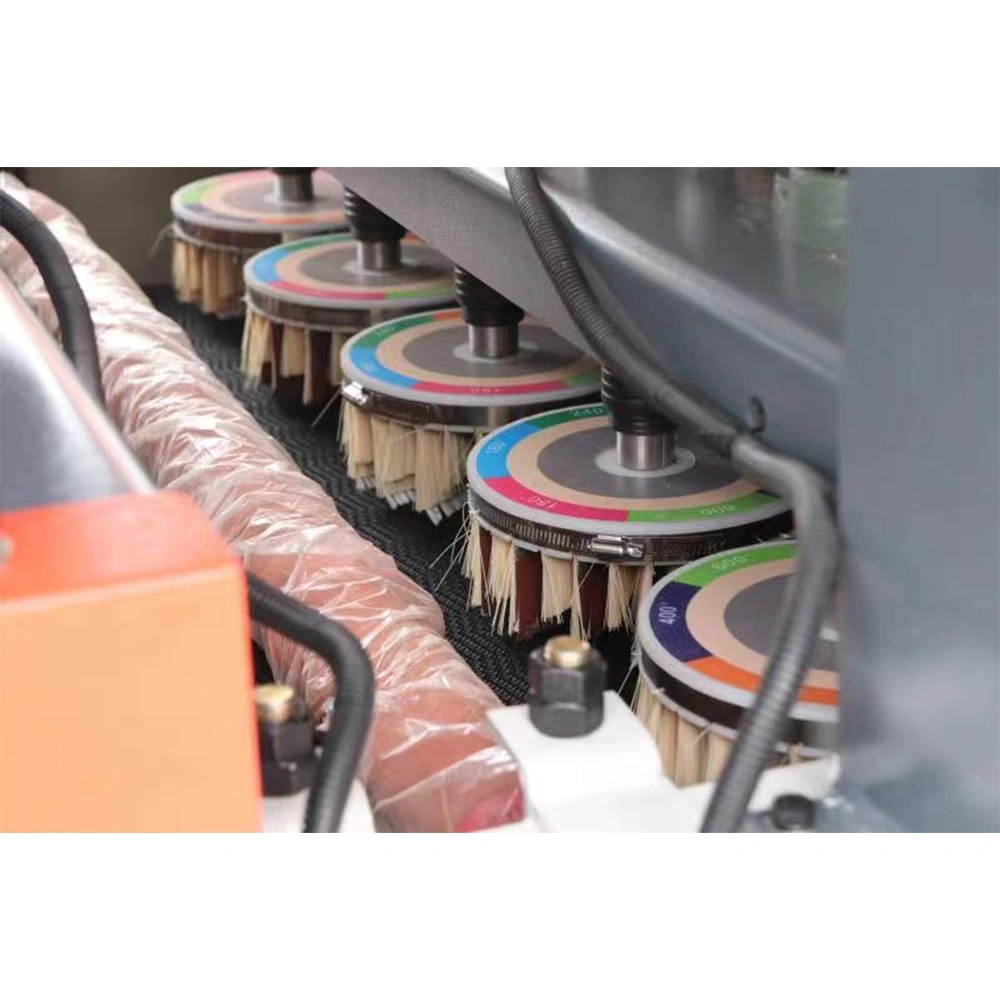

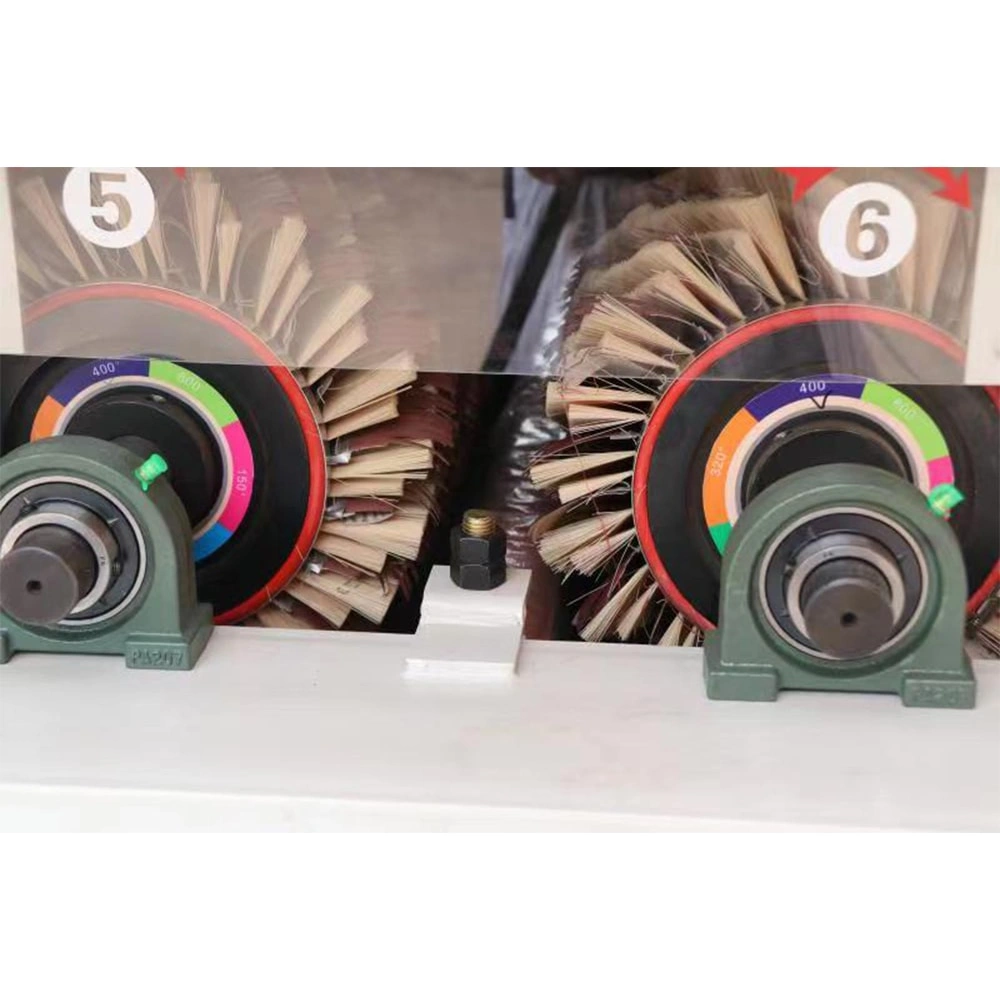

The brush sanding machine consists of two rows of oscillating brush discs, two rows of oscillating cross rollers, and two rows of brush rollers.It can complete the all-round polishing of the workpiece without any blind spots.

You may also be concerned about

The reasons for the deviation of the abrasive belt

The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Adjustment methods for abrasive belt deviatio

Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
Maintenance and repair of Wide Belt Sander

1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
Flow rate adjustment of the spray gun

The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Cleaning after using the spray painting machine

Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
