Top&Bottom Wide Belt Sander

Top&Bottom Wide Belt Sander

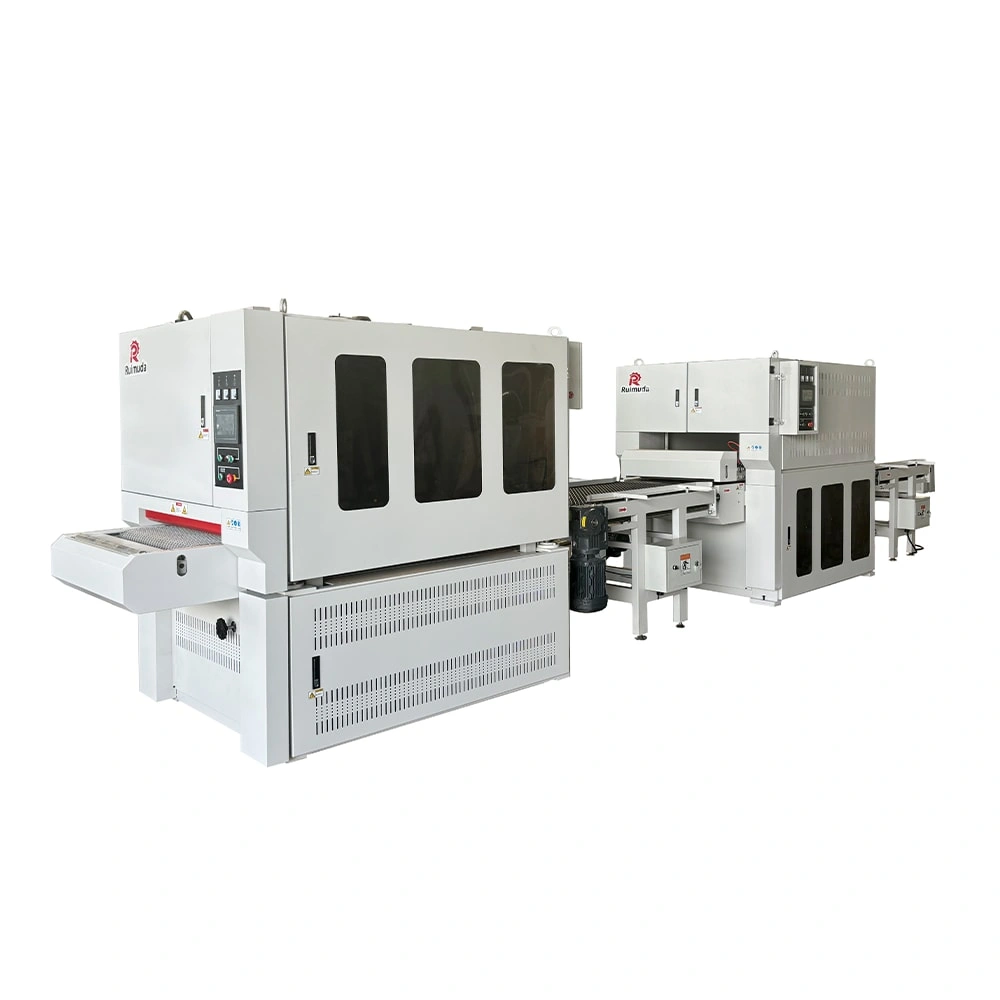

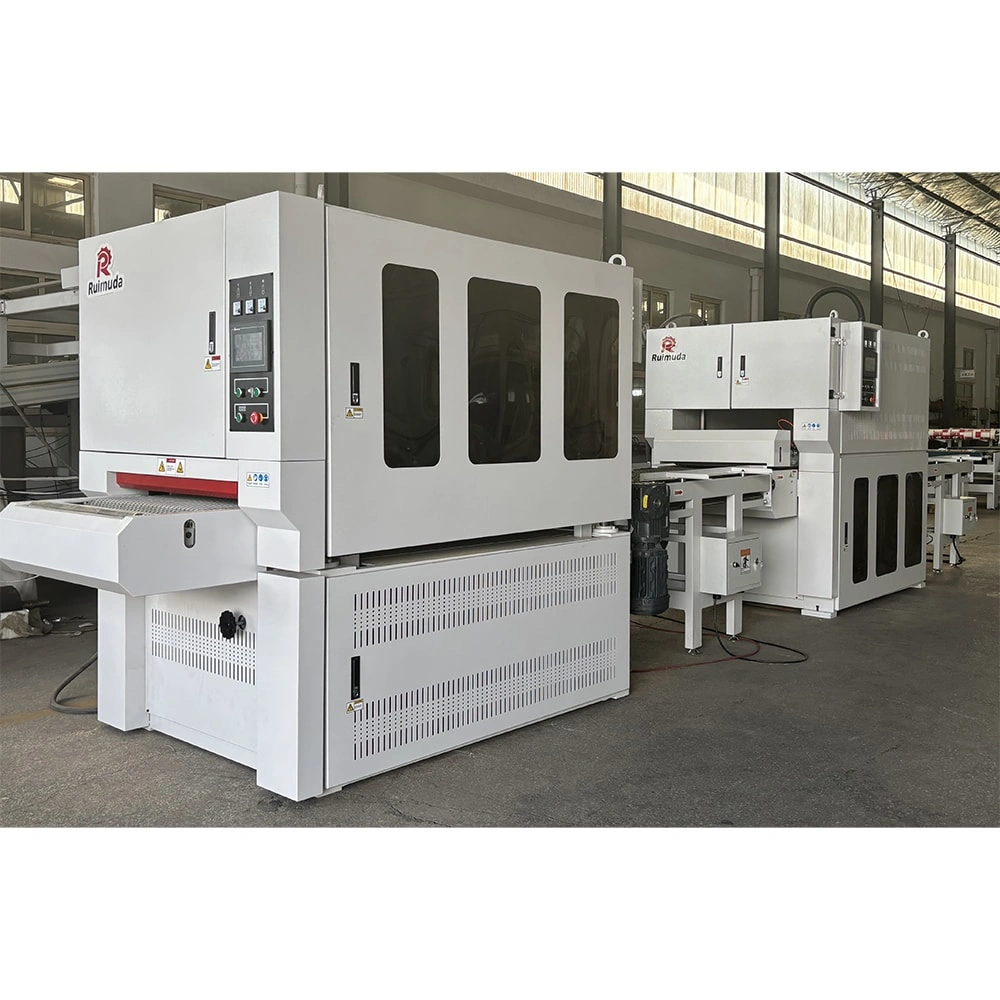

There are two sanding machines in total. The workpieces are connected by a conveyor belt in the middle, which can simultaneously precisely sanding the upper and lower surfaces of the workpieces, thus improving work efficiency.

Inquiry Contact

Technical parameters

Model	RMT63R-R-RP Top	RMB63R-R-RP Bottom
Working width	630mm	630mm
Working thickness	3-120mm	3-120mm
Feeding speed	5-25m/min	5-25m/min
1st unit power	11kw	11w
2 nd unit power	11kw	11kw
Air pressure	0.55Mpa	0.55Mpa
Compressed air consumption	0.12m³/min	0.12m³/min
Volume of dust collector	>10000m³/h	>10000m³/h

Video

Characteristic

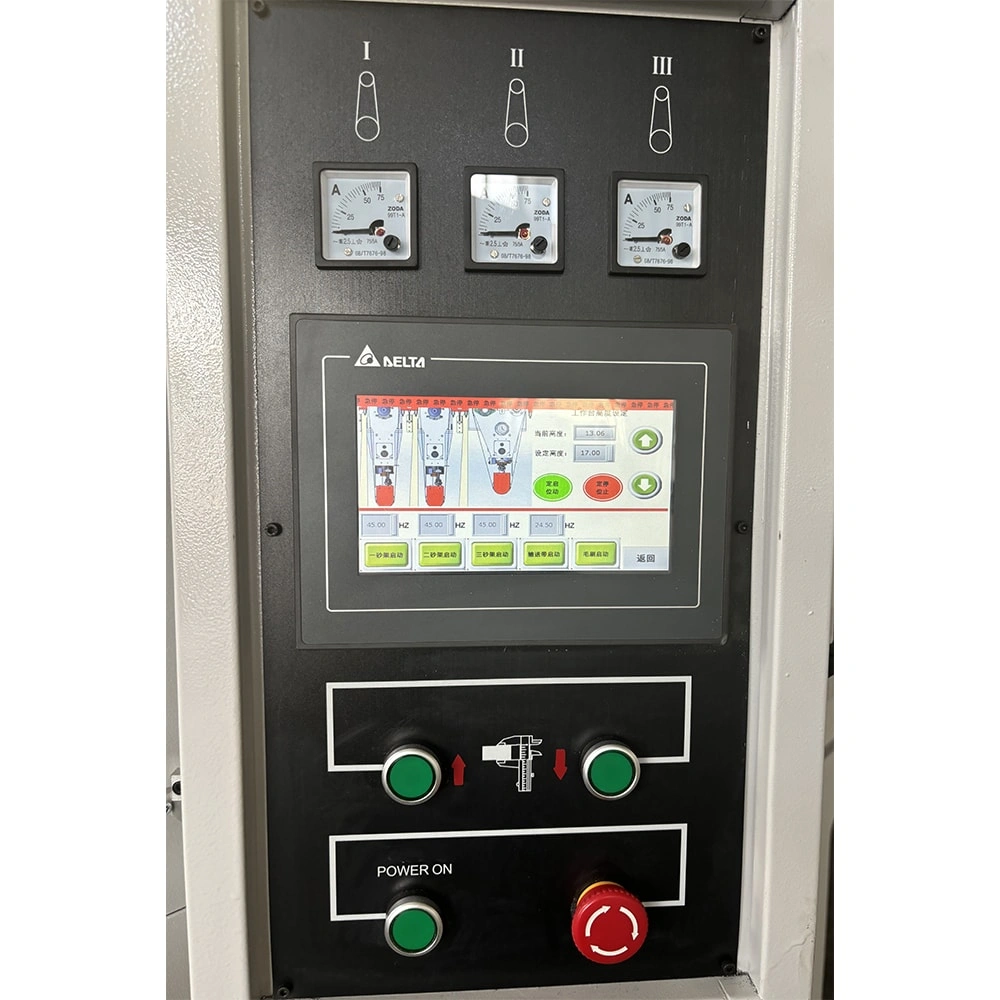

The PLC touch screen control of the Top and Bottom wide belt sander is the core link of human-machine interaction. It integrates complex equipment operation, parameter adjustment and status monitoring into an intuitive touch interface, greatly enhancing operational efficiency and safety.

The emergency button and alarm light of the Top and Bottom wide belt sander are the core components of the equipment safety protection system, used to quickly shut down and warn personnel in emergency situations to avoid accidents.
