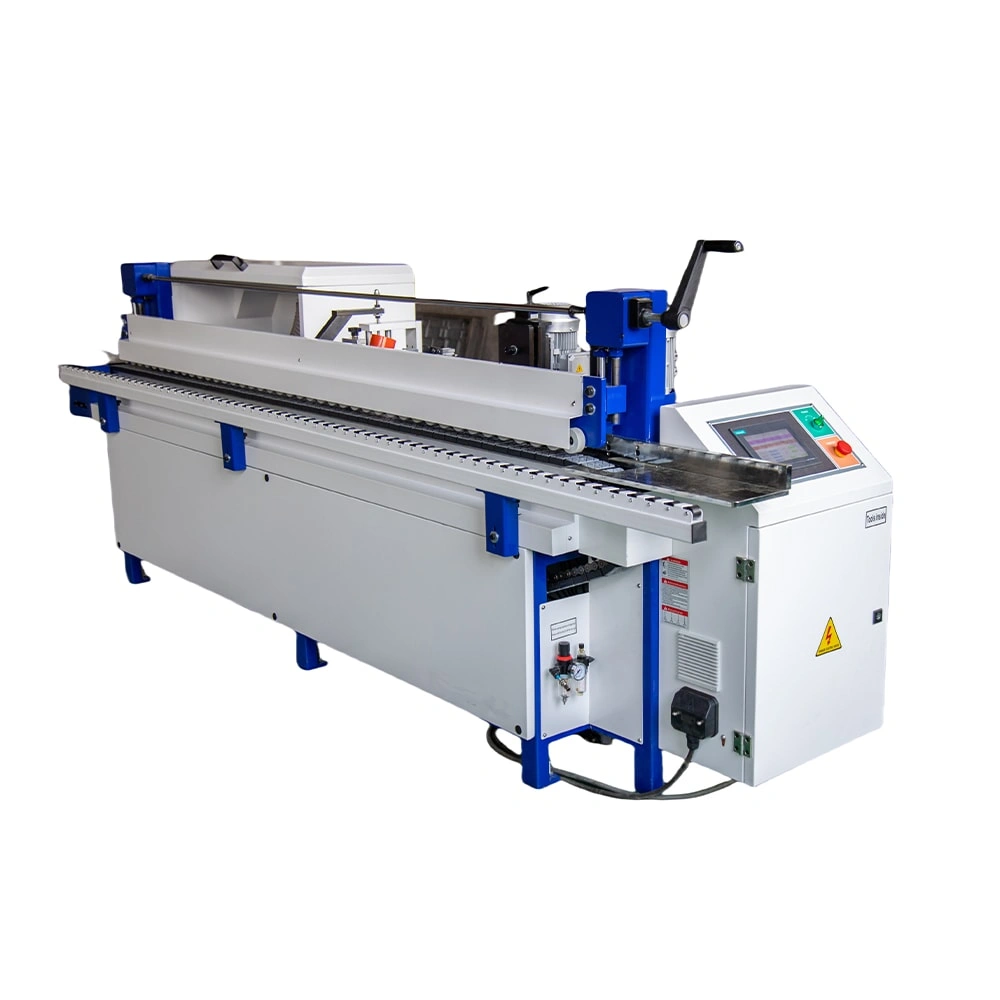

The model RM80DS edge sander machine is mainly for the polishing or sanding of different wood materials such as solid wood, plywood, MDF, veneer board, etc. The speed of the rollers is adjustable with frequency inverters, so it can use different speed according to the hardness of the wood materials.
| Model | RM80DS |
|---|---|
| Rough sanding power | 1.1kw 180grit |
| Fine sanding power | 1.1kw 240grit |
| Sanding belt oscillating power | 0.25kw |
| Brush sanding power | 0.75*2 |
| Brush sanding oscillating power | 0.75*2 |
| Feeding power | 1.5kw |
| Total power | 6.97kw |
| Brush sanding diameter | 300mm |
| Max. Sanding Thickness | 30mm |
| Feeding speed | 0-12m/min Adjustable |
The model RM80DS edge sander machine is mainly for the polishing or sanding of different wood materials such as solid wood, plywood, MDF, veneer board, etc.
The speed of the rollers is adjustable with frequency inverters, so it can use different speed according to the hardness of the wood materials.

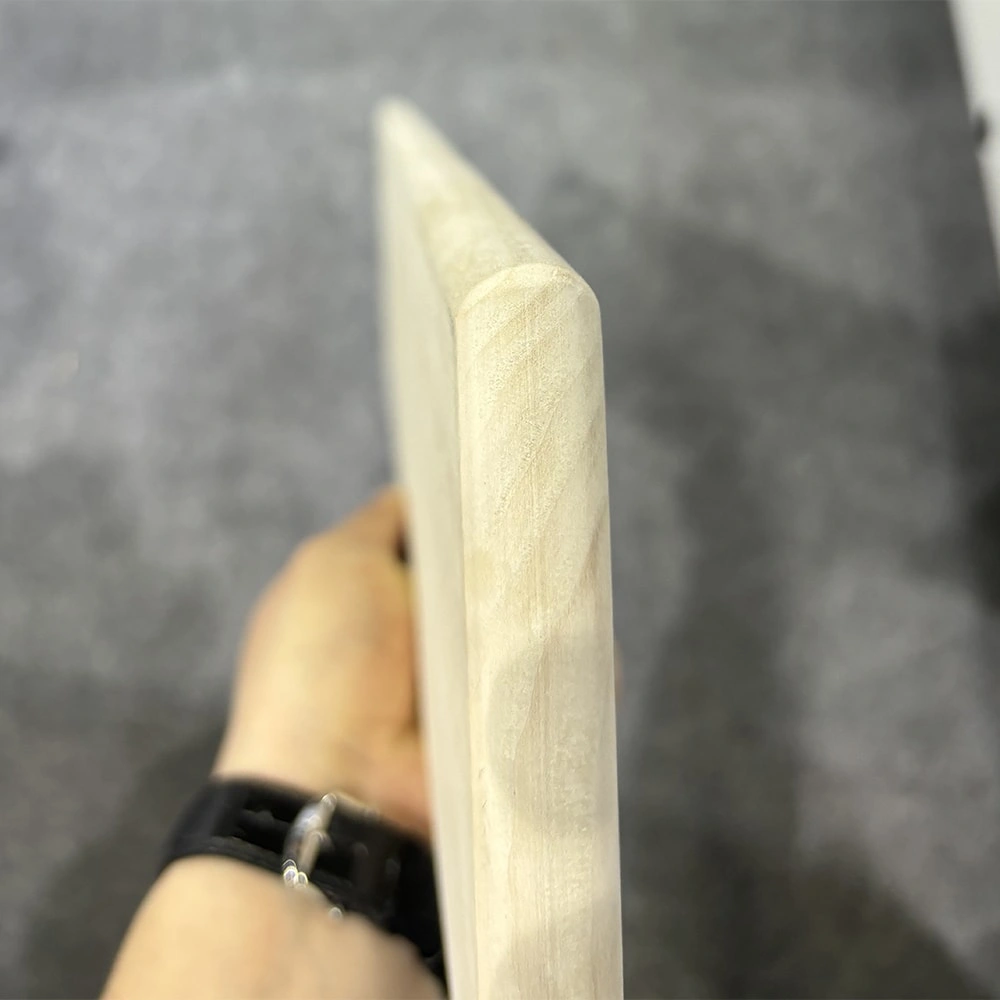

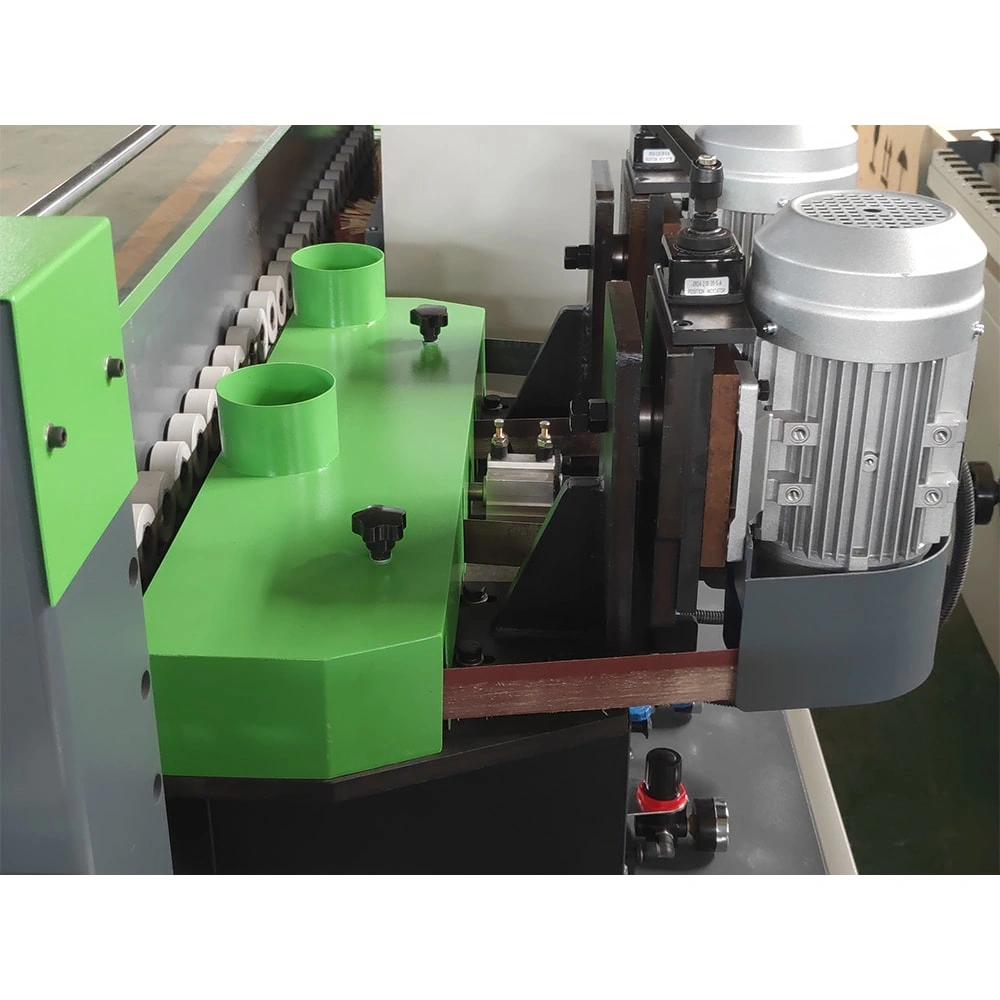

The combination of triangular abrasive belts and roller sanding brush is used to polishing the edges of the board.
The edge sander is equipped with our independently developed PLC system,It’s can control the speed and operation of each sanding tool, and adjust different working combinations according to different wood materials.
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
