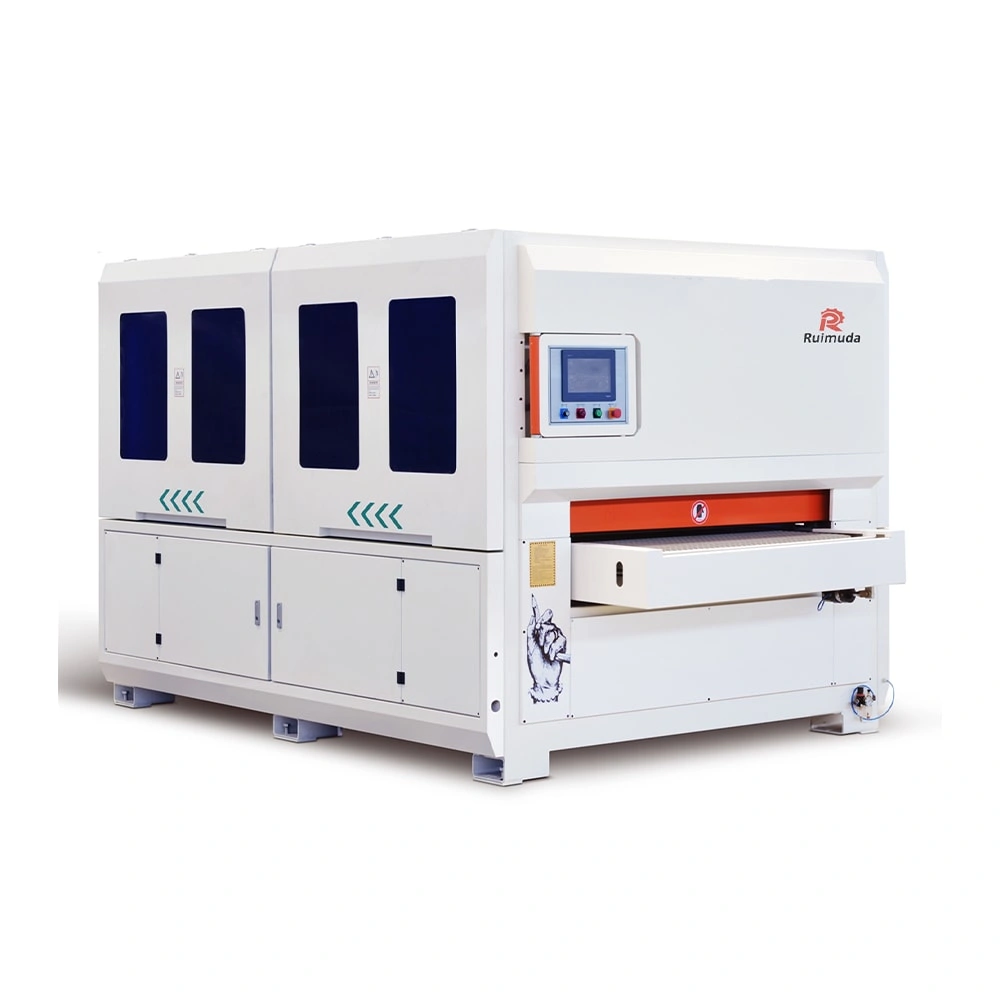

Heavy Brush Sanding Machine

Heavy Brush Sanding Machine

Heavy Brush Sanding Machine is mainly used for grinding uneven and irregular surfaces. The sanding machine will not damage the surface patterns of the board.

Inquiry Contact

Technical parameters

Model	RMG630P6	RMG130P6
Working Width	20-630mm	20-1300mm
Working Thickness	5-120mm	5-120mm
Min working length	350mm	350mm
Brush disc speed	0-400r/min	0-400r/min
Brush disc amount	7pcs	7pcs
Cross brush speed	0-400r/min	0-400r/min
Cross brush amount	6pcs	6pcs
Brush roller speed	0-400r/min	0-400r/min
Brush roller amount	2pcs	2pcs
Oscillating speed	30times/min	30times/min
Feeding speed	0-18m/min	0-18m/min
Volume of dust collector	8200m3/h	10000m3/h

Video

Characteristic

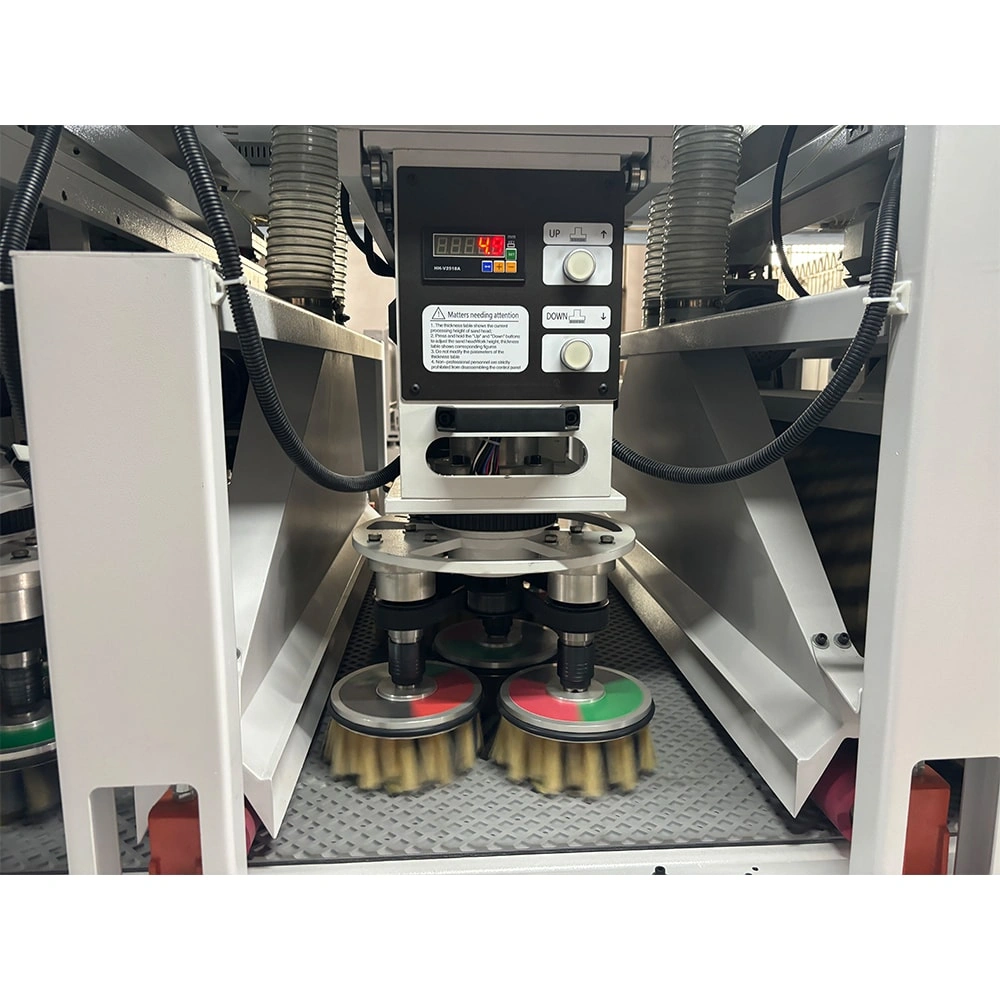

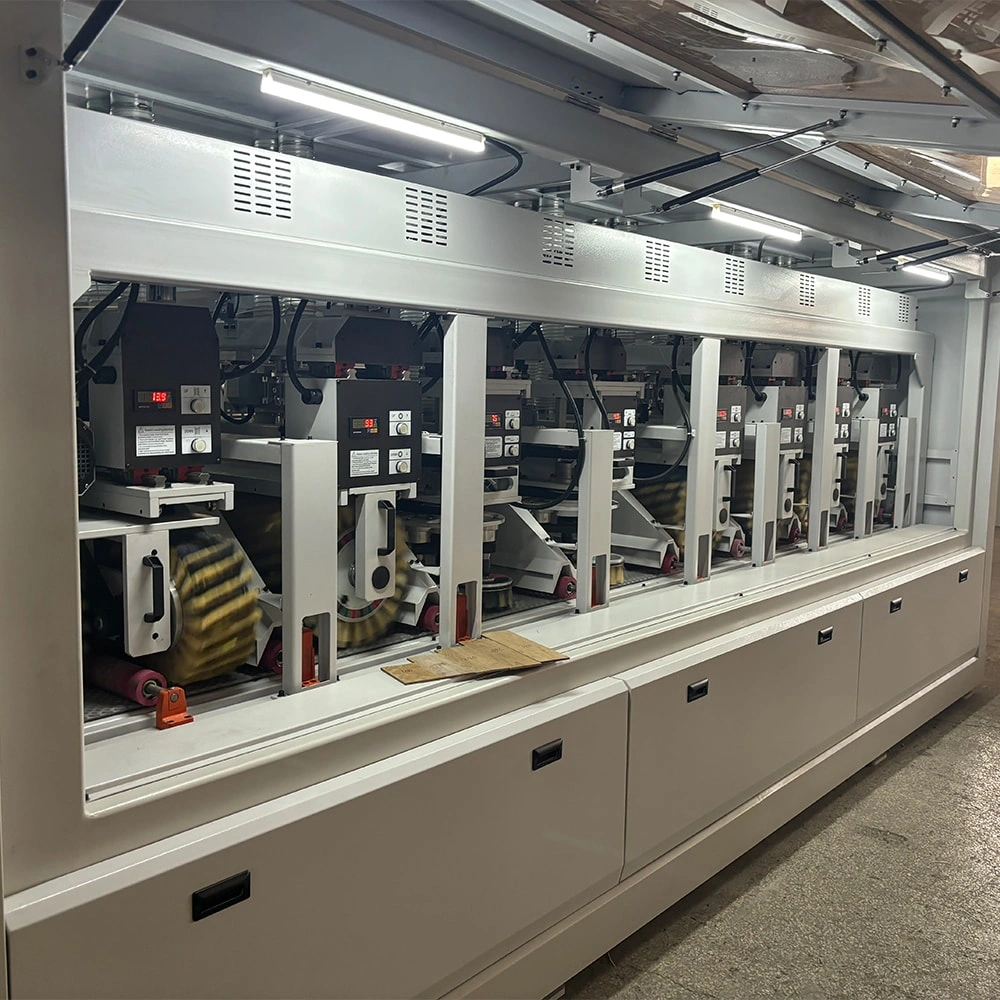

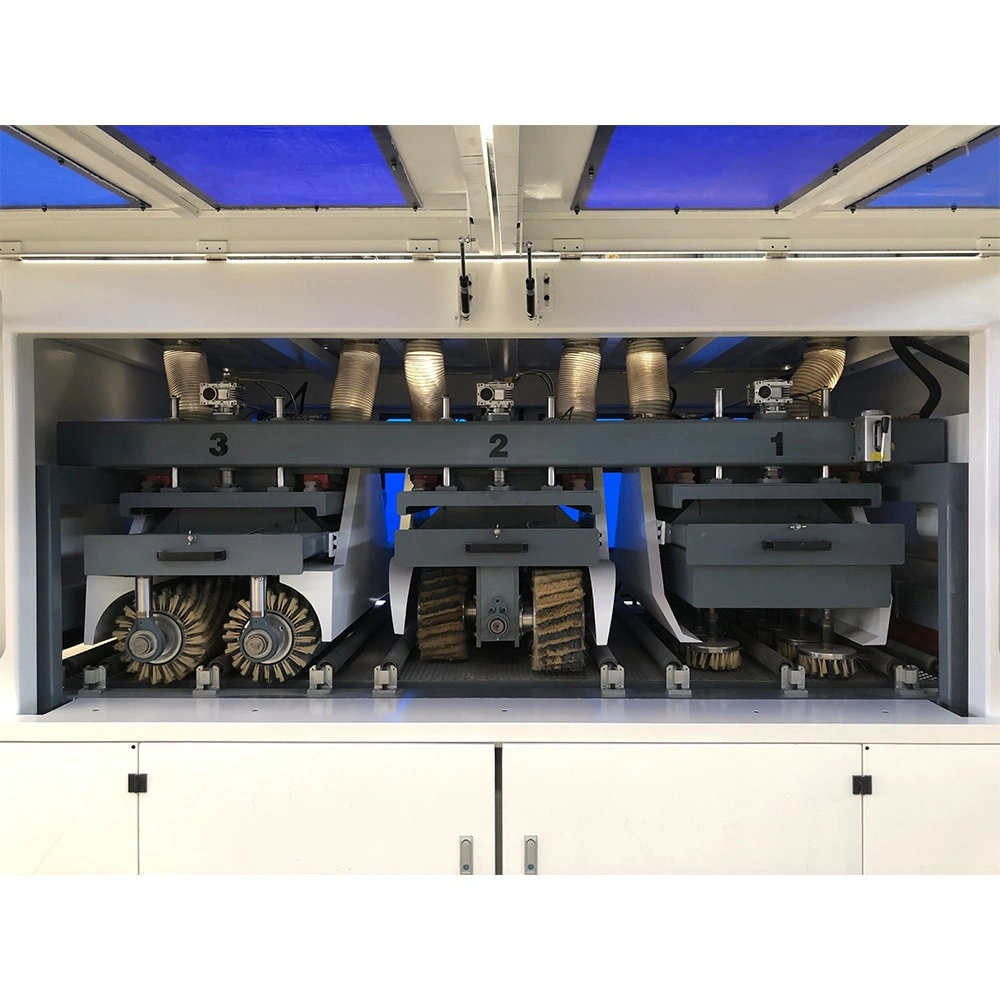

The Model RMG130P6 Heavy Duty Brush Sanding Machine uses sanding heads to move left and right and oscillate to polish uneven and irregular surfaces. Especially wooden doors and cabinet panels.

Each group of polishing heads adopts an independent lifting control system, which is mainly aimed at accurately "wrapping" or "following" the three-dimensional contour of the workpiece in the width direction by adjusting the height of each group of polishing heads separately.This is one of the most important technologies of the Heavy Duty Brush sanding machine .

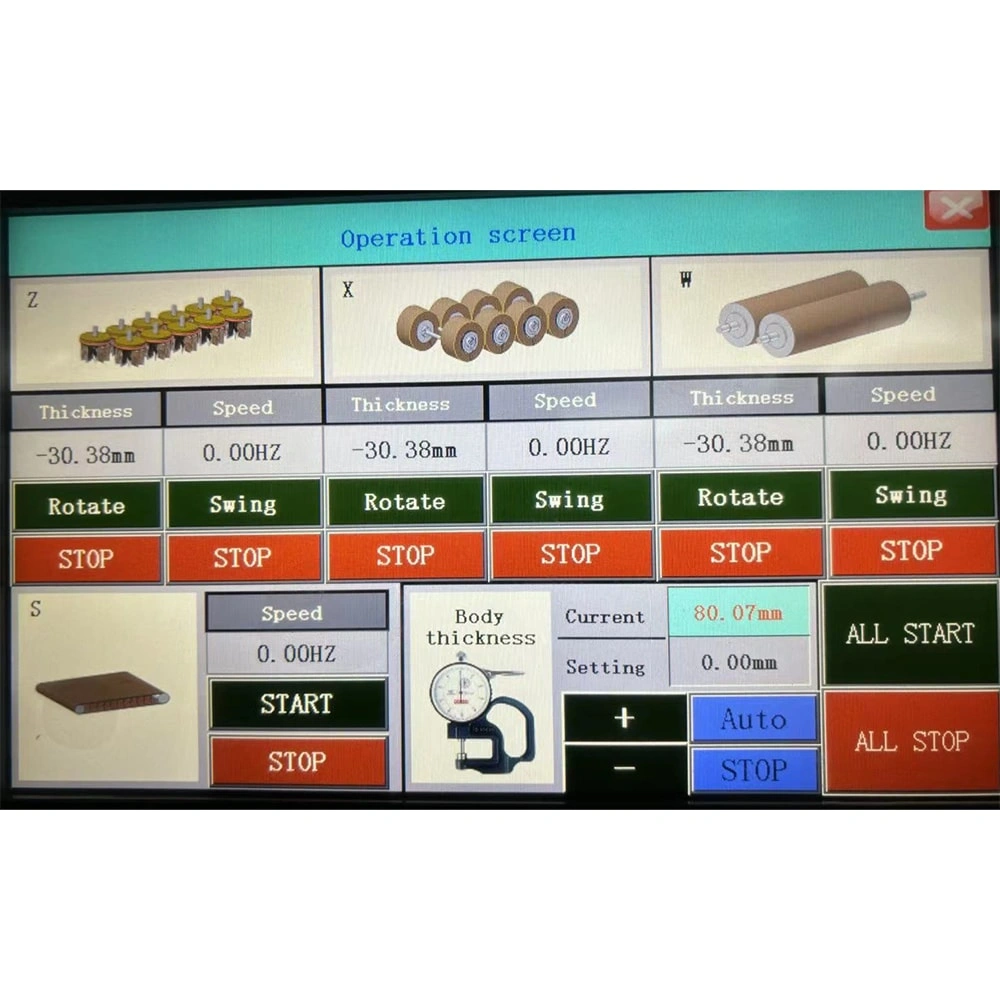

PLC control is an important component of the Heavy Duty Brush sanding machine. Through the numerical control system, the sanding path of each polishing head is adjusted properly. The polishing head moves according to the program instructions to complete the polsihing of complex curved surfaces.

You may also be concerned about

The reasons for the deviation of the abrasive belt

The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Adjustment methods for abrasive belt deviatio

Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
Maintenance and repair of Wide Belt Sander

1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
Flow rate adjustment of the spray gun

The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Cleaning after using the spray painting machine

Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
