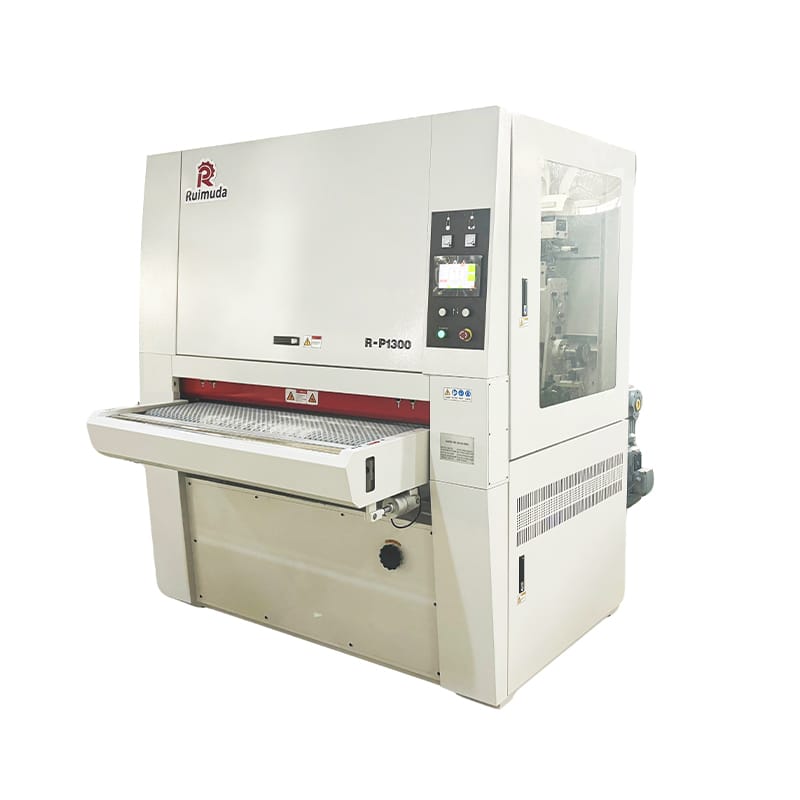

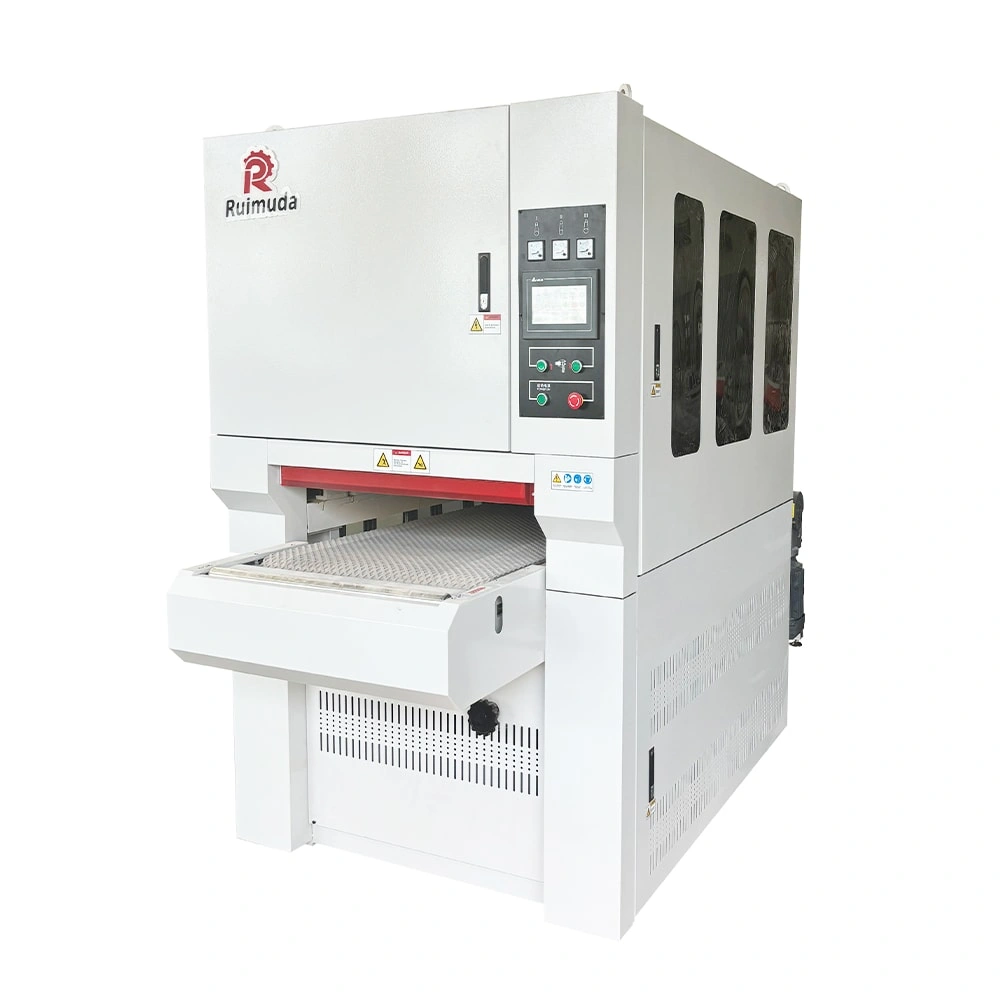

Lacquered Panel Sander

Lacquered Panel Sander

After the primer is sanded, the uneven paint on the surface of the workpiece can be eliminated, improving the smoothness and preparing for the next topcoat process. Lacquered panel sander can be used as a single machine or combined into a production line, such as a roller coating production line and a spray production line, to form an automated production line.

Inquiry Contact

Technical parameters

Model	RML130	RML630
Max. Working width	1300mm	600mm
Working thickness	2.5-100mm	2.5-100mm
Working air pressure	0.8Mpa	0.8Mpa
Speed of sandpaper	Speed is adjustable	Speed is adjustable
Feed speed	2-22m/min	2-22m/min
Diameter of roller	Φ240mm speed is adjustable	Φ190mm speed is adjustable
Power of abrasive belt 1st unit	15KW	7.5KW
Diameter of pad roller	Φ100mm speed is adjustable	Φ100mm speed is adjustable
Power of abrasive belt 2nd unit	15KW	7.5KW
Power of feeding	4kw speed is adjustable	2.2kw speed is adjustable

Video

Characteristic

The lacquered panel sander is usually used for polishing the lacquer after spraying, using sanding pads to polish the surface of the wood panels and make it smoother, Due to the thin surface coating of the primer, which is generally only about 0.1mm,this requires the lacquer sander to have high-precision sanding.

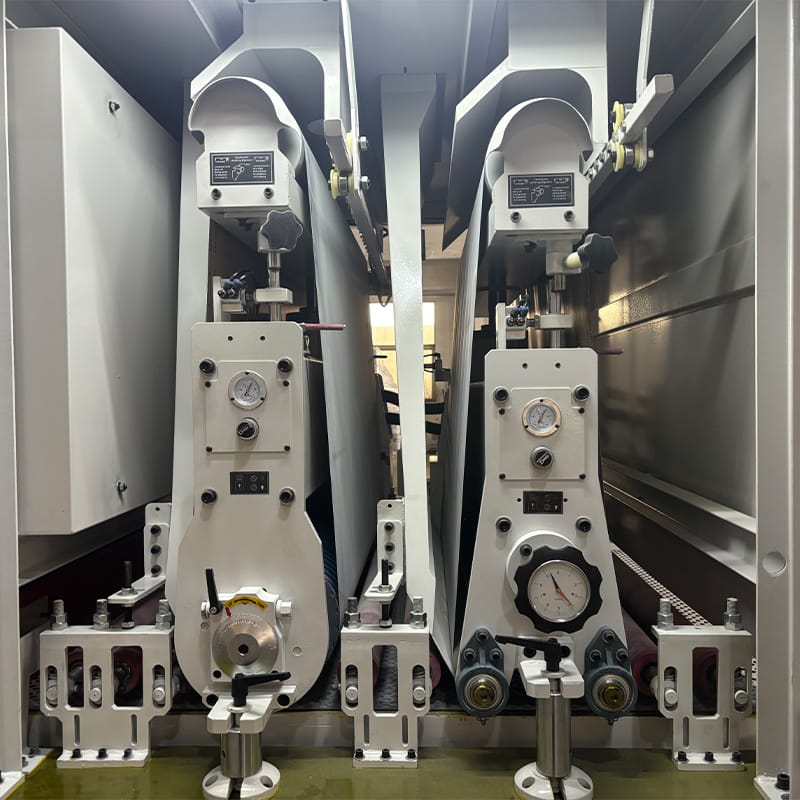

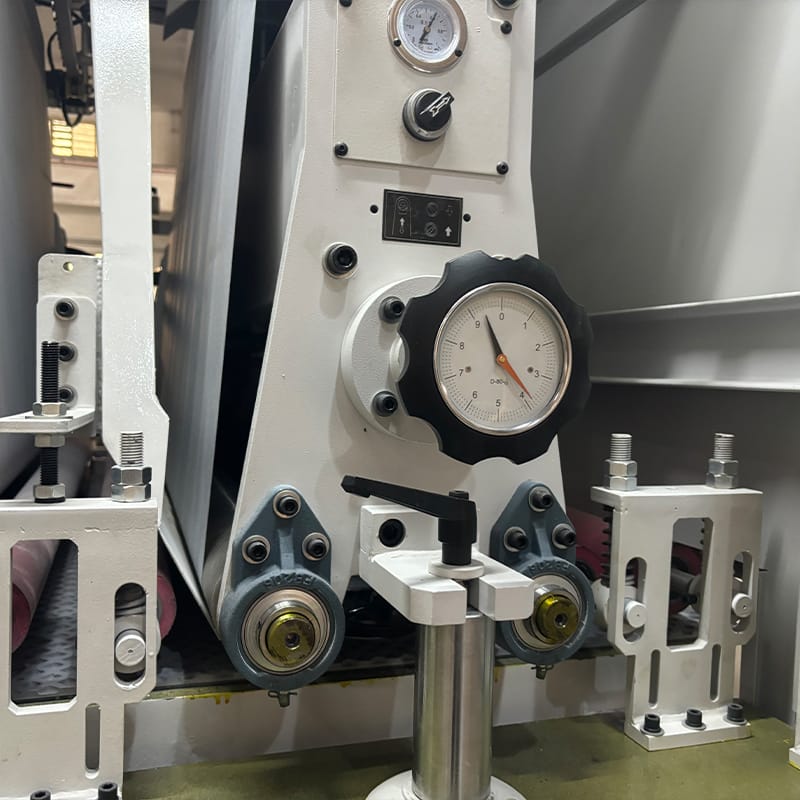

The sanding pad is the most important part of the lacquered panel sander, The sanding pad is made of soft material to evenly distribute the grinding pressure, It can lightly sanding the primer,avoid excessive local wear.

Our company has comprehensively optimized its unique rack design, shock absorption technology, and other aspects to resist the vibration and torque generated by the sanding machine during high-speed operation and prevent deformation of the machine body. Adapt to long-term continuous operations of the lacquered panel sander to avoid metal fatigue leading to cracking or decreased accuracy.
