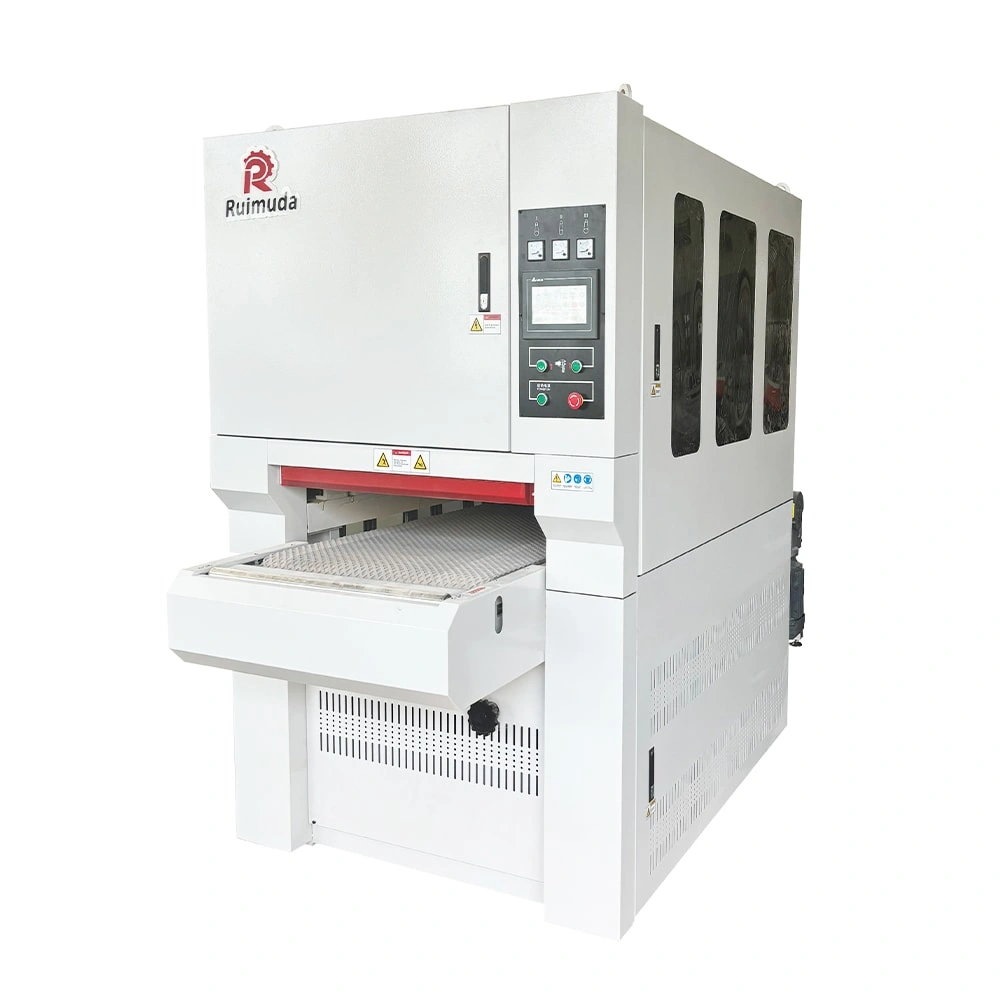

Planer Wide Belt Sander

Planer Wide Belt Sander

The planer sander machine is equipped with a spiral cutter roller. According to the customer's needs, the diameter of the spiral cutter roller can be changed. The larger the diameter of the spiral cutter roller, the greater the working efficiency.

Inquiry Contact

Characteristic

Model	RMK130	RMK60
Max Working width	1300mm	600mm
Thickness of sanded panel	3-100mm	3-100mm
Min working length	>580mm	>580mm
Feeding speed	3-17m/min	3-17m/min
Diameter of planer	Φ240mm	Φ180mm
Power of planing roller	22kw	7.5kw
Power of abrasive belt on 2ndunit	30kw	7.5kw
Power of abrasive belt on 3rdunit	22kw	4kw
Working pressure	0.55MPa	0.55MPa
Compressed air consumption	0.2m3/h	0.2m3/h

Video

Characteristic

Planer wide belt sander is equipped with a spiral cutter system, mainly for composite materials such as solid wood, density board, plywood, etc., especially for quickly removing thick surfaces. The blade rotates at high speed to cut the surface of the material, and then sandpaper is used to polish the cutting surface. One pass, can remove maximum 5mm.

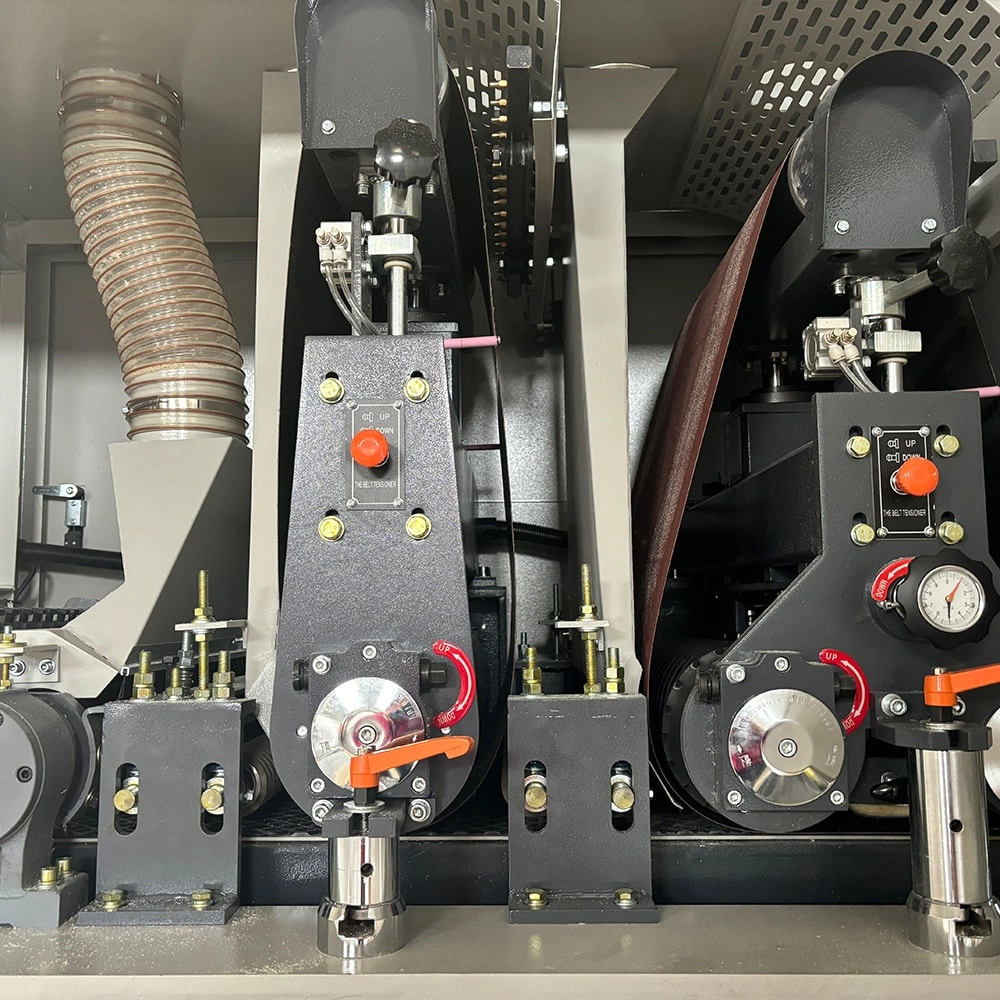

The spiral cutter system is an important component of the planer wide belt sander.,The blades are distributed in a spiral shape. The high-precision design of the blade spindle and the blade, along with the benefits brought by segmented cutting, makes the planing surface smoother and finer.

This planer wide belt sander is equipped with reliable safety devices.When the workpiece is not properly fixed, the feeding speed is too fast, or the sanding resistance suddenly changes, Anti-rebound device can prevent the workpiece from being thrown out by the high-speed sand belt.
