| Model | RMR1450G |
|---|---|
| Min. cutting size | 25mm |
| Max. cutting size | 1450mm |
|
Max PVC cutting thickness |
0.5mm |
| Max. diameter of roller for PVC | Φ600mm |
| Pneumatic core shaft diameter | Φ76mm |
| Speed | 0-60m/min |
| Total Power | 2.2 Kw |

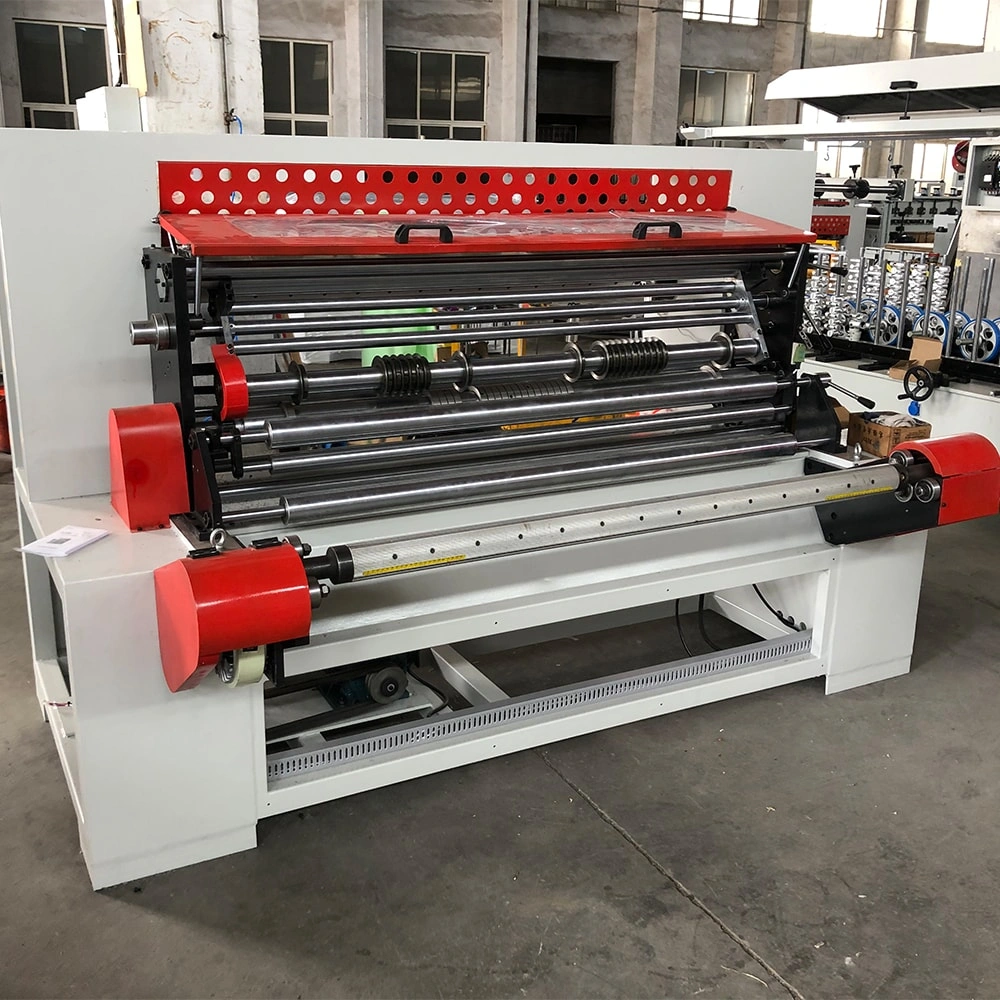

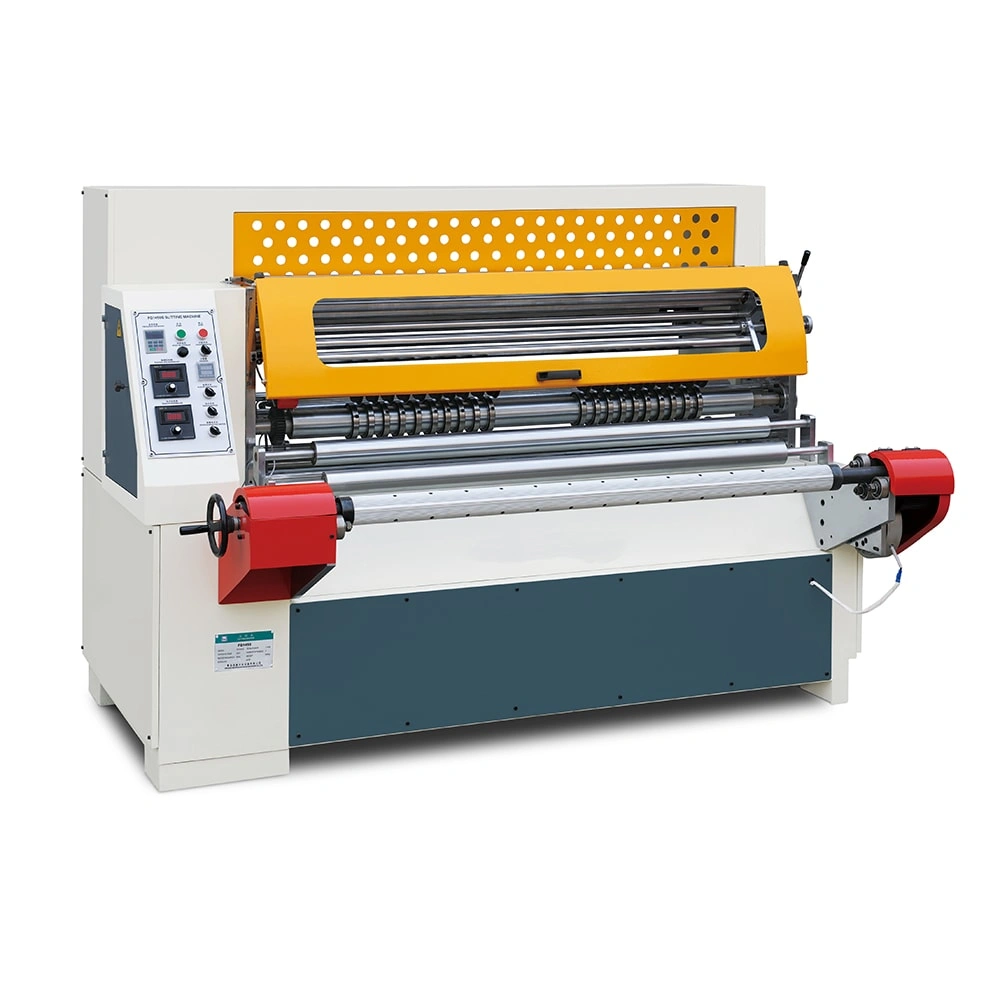

The PVC round knife slitting machine can adjust the cutting speed and the cutting size according to the size of the cutting film.

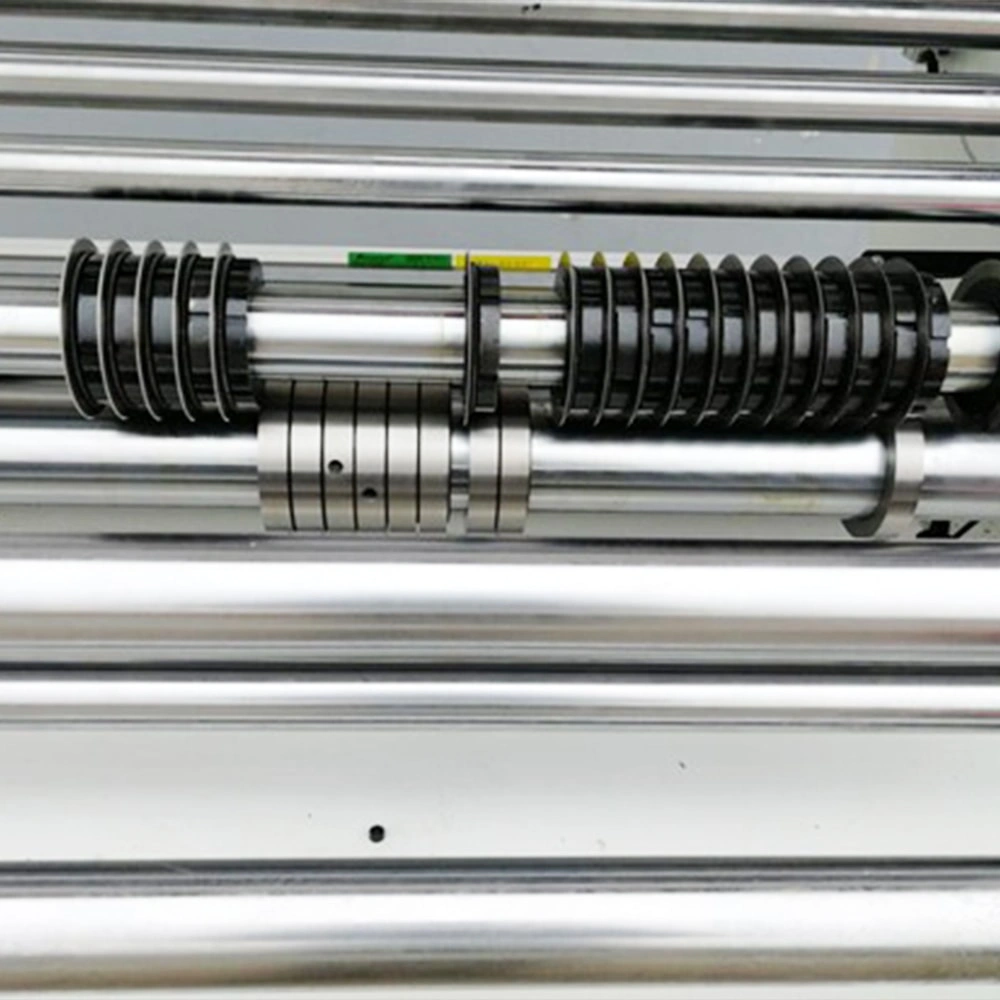

The PVC round knife slitting machine has a total of 20 circular blades, which can be freely combined for use. Anti static rods can eliminate static electricity generated during the work process, ensuring the safety of workers.
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
