| Model | RM2300A |
|---|---|
| Working area | 2550×1300mm |
| Max working thickness | 400mm |
| Total power | 26.5 Kw |
| Vacuum | -0.1Mpa |
| Overall dimensions | 2750×2900×1150mm |
| Weight | 650kg |

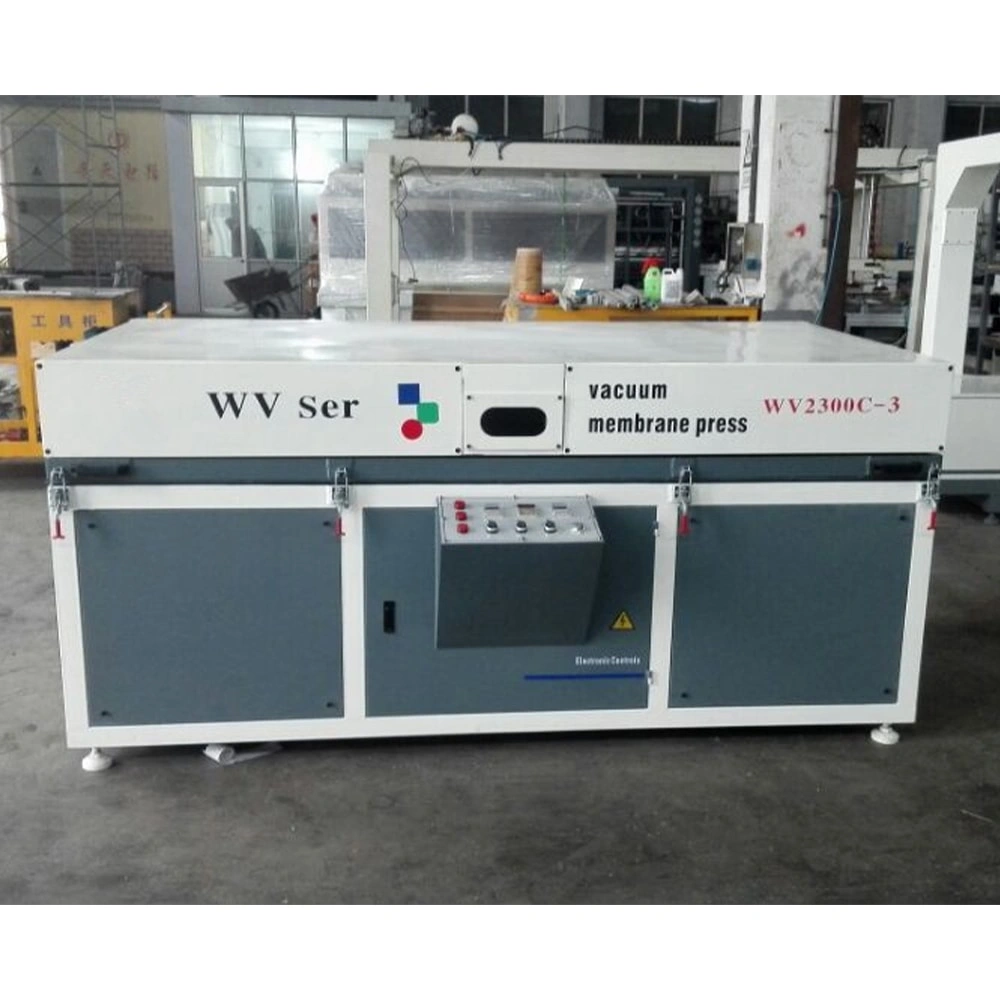

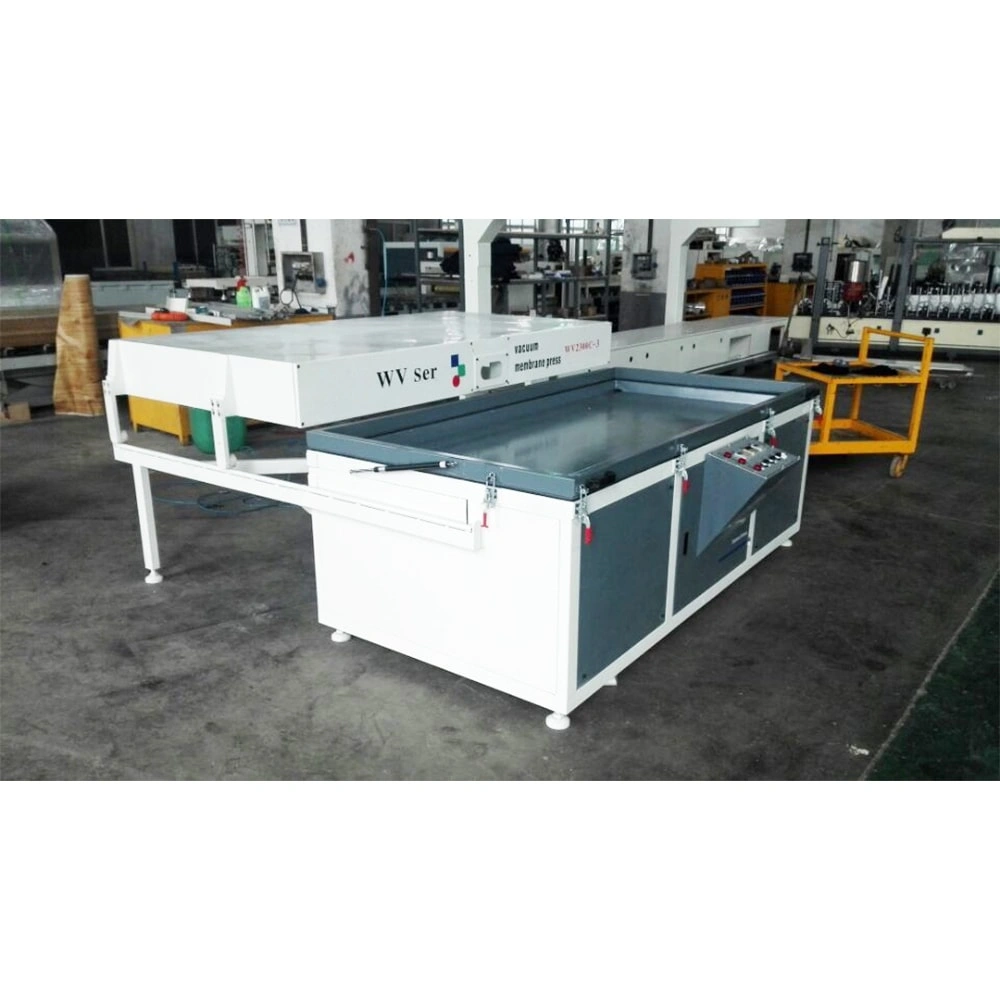

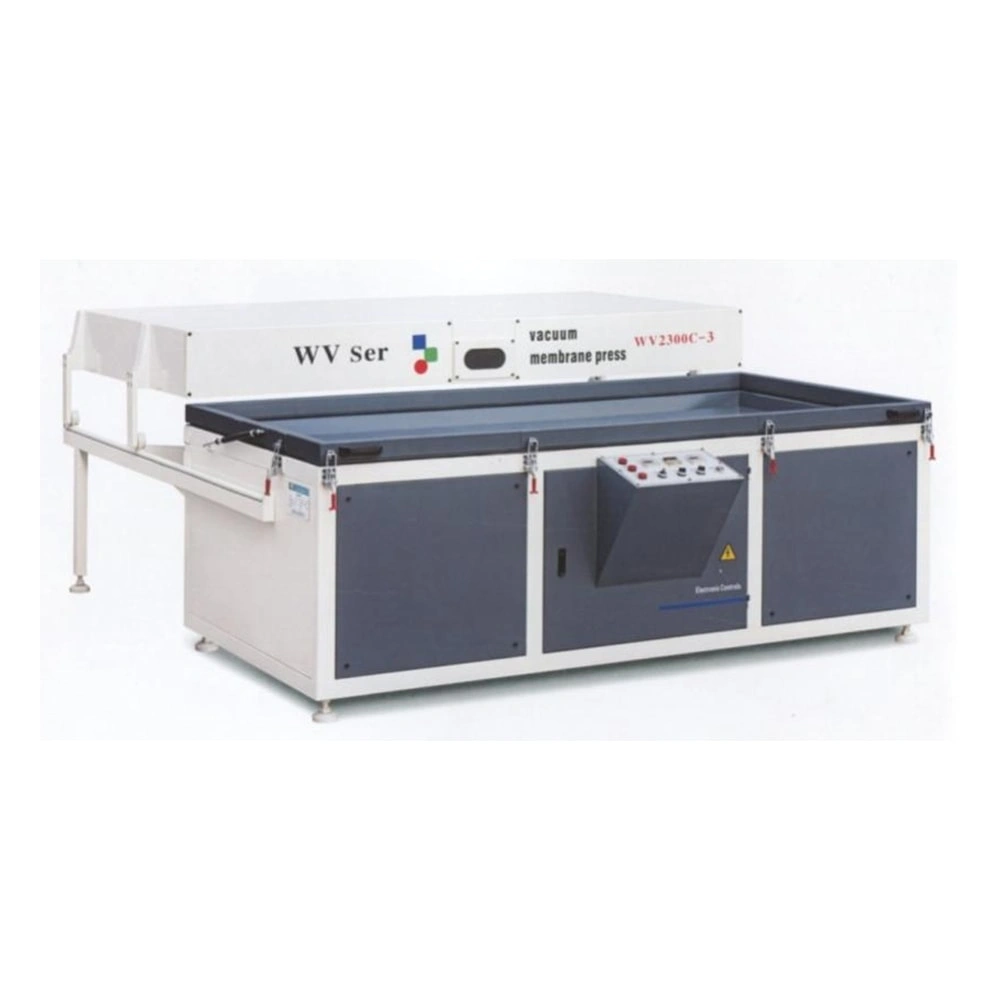

The vacuum membrane press can be used for PVC covering of process composite doors, furniture, cabinets surfaces. It adopts double-layer insulation, fully sealed design, and energy-saving.
The vacuum membrane press adopts high stress steel structure, ensure the equipment running smoothly, transport more at ease. High sealing ,as to improve the processing efficiency of equipment.
The large-capacity gas storage tank ensures uniform air intake and the PVC membrane is not easily damaged.
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
