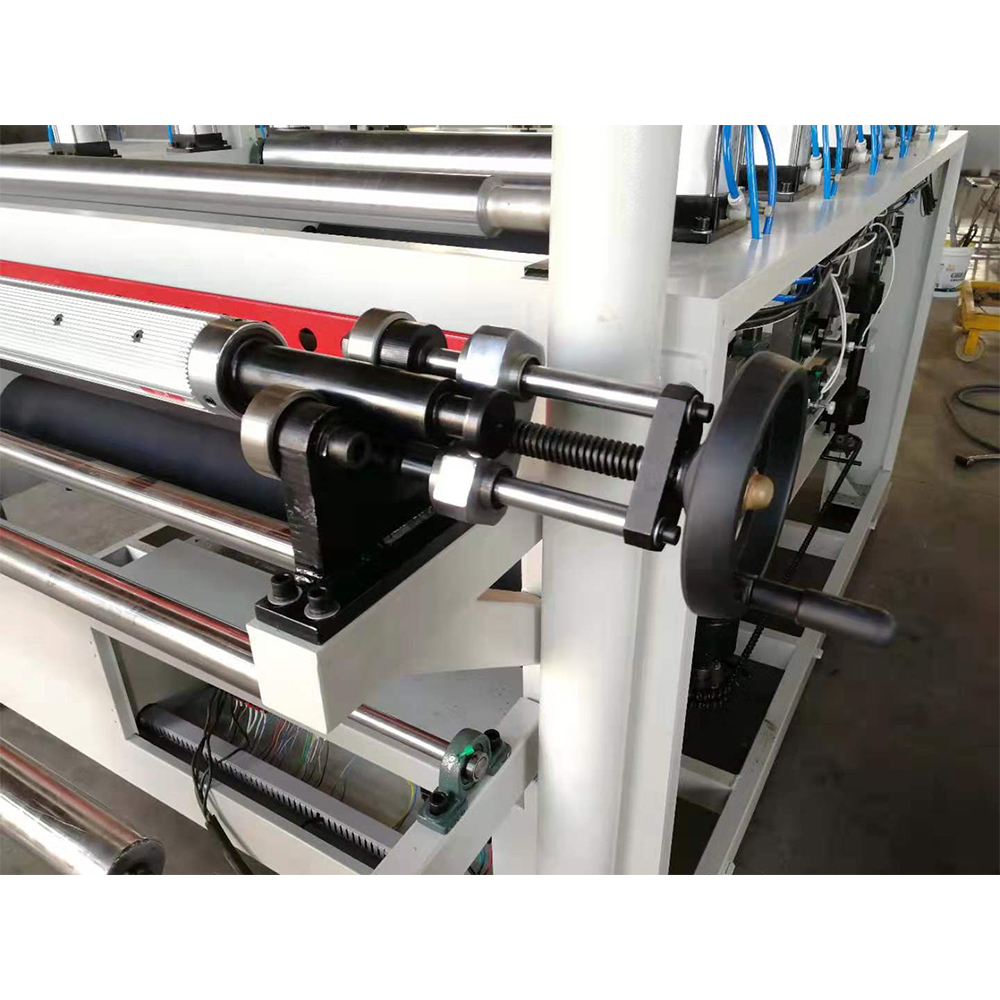

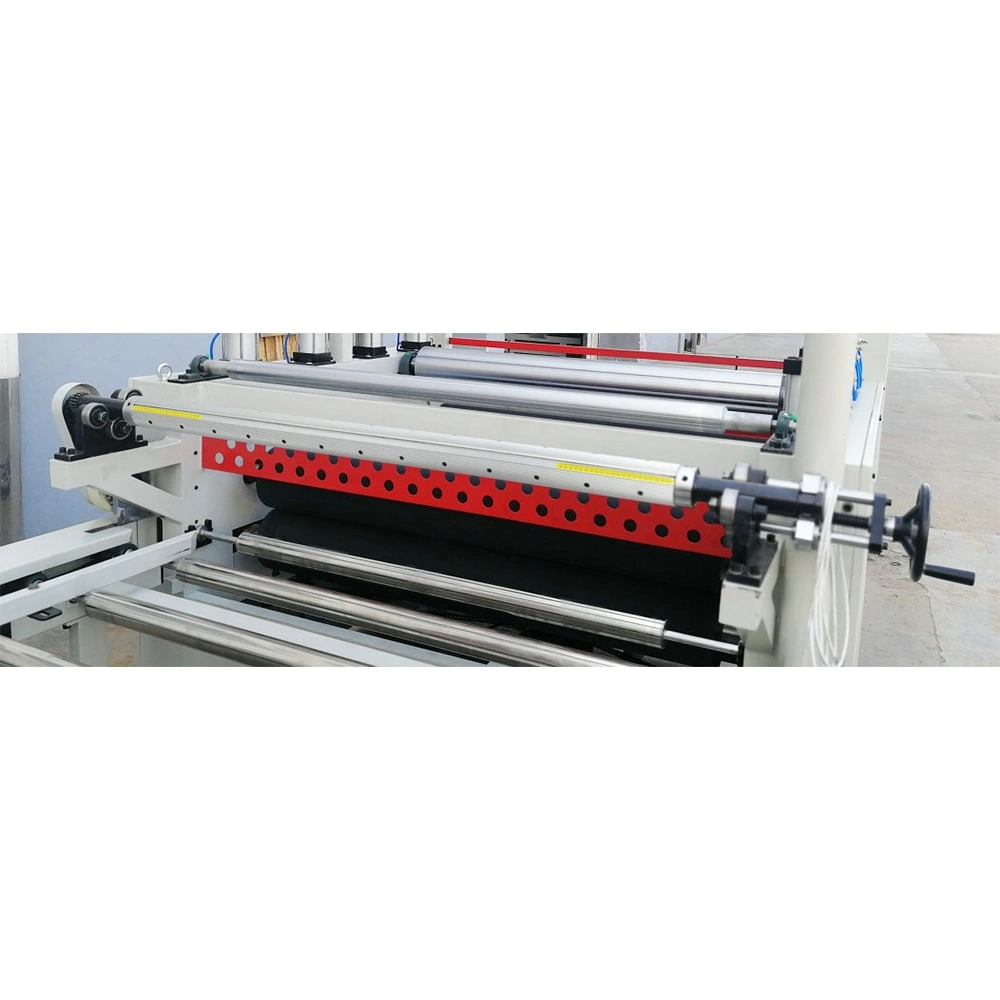

RM1350B paper(PVC) sticking machine can be used to stick PVC, decorative paper and paint paper on the surface of all kinds of panels. It adopts air shaft to fix film roll, which is quick and solid. The electromagnetic tension system can control the tension quickly and conveniently. It is equipped with film roll moving system which can move the film roll in place.
| Model | RM1350B-II |
|---|---|
| Max. panel width | 1220mm |
| Max. feeding speed | 15m/min |
| Panel thickness |
3-35mm |
| PVC thickness |
0.18mm |
| Total Power | 8Kw |
RM1350B paper(PVC) sticking machine can be used to stick PVC, decorative paper and paint paper on the surface of all kinds of panels. It adopts air shaft to fix film roll, which is quick and solid. The electromagnetic tension system can control the tension quickly and conveniently. It is equipped with film roll moving system which can move the film roll in place.
It adopts air shaft to fix film roll, which is quick and solid. The electromagnetic tension system can control the tension quickly and conveniently. It is equipped with film roll moving system which can move the film roll in place and avoid film wrinkling without stopping the machine, so paper(PVC) sticking machine can improve the working efficiency and quality of products.
Paper(PVC) sticking machine equip with dust removal system, adhesive system, sticker system, cold and hot secondary pressure system, crane system, film roll lateral displacement system, electromagnetic brake system, and pneumatic expansion shaft system are integrated to form the product in one go.
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
