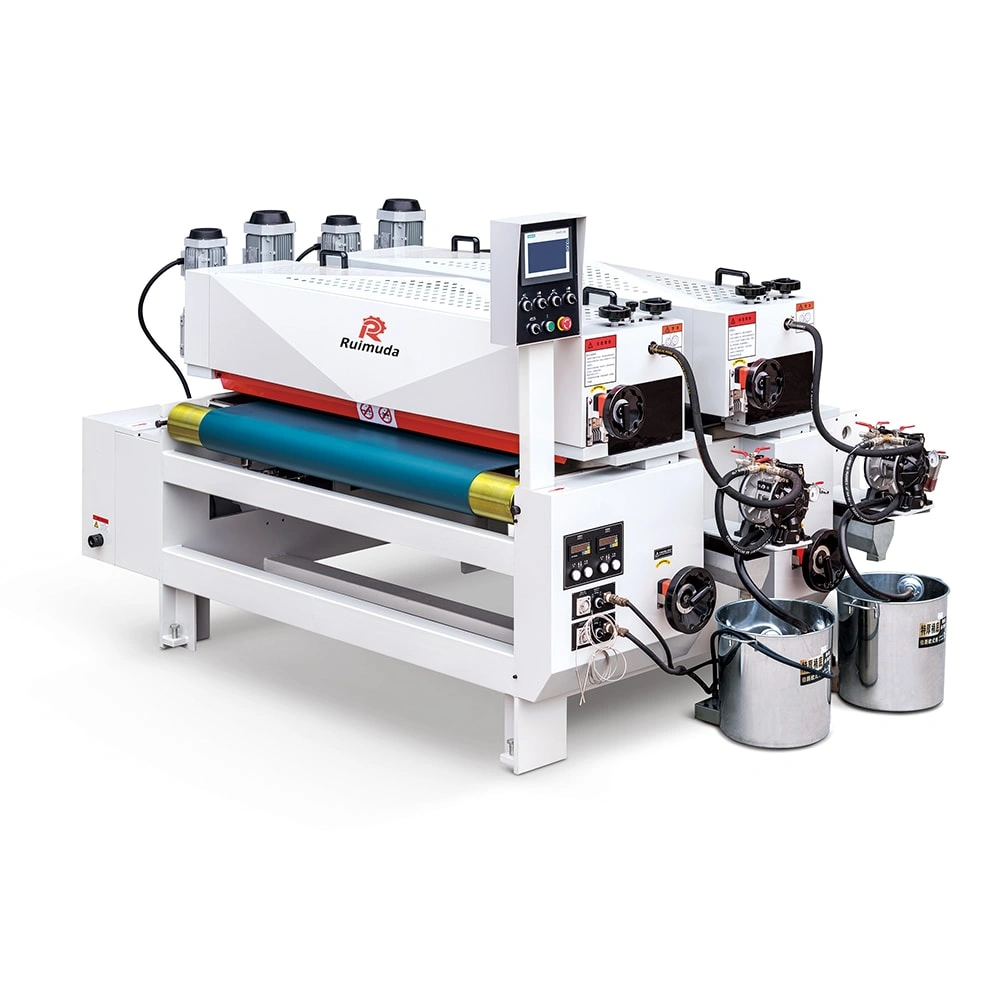

Roller Coating Machine

Roller Coating Machine

The roller coating uses rollers to roll paint onto the board surface to achieve the effect of painting and beautification.Suitable for flat panels. Different quantities of rollers can be selected according to different needs.

Inquiry Contact

Technical Parameter

Model	RMG600	RMG1300
Coating width	600mm	1300mm
Working Thickness	2-90mm	2-90mm
Feeding speed	Frequency alternator	Frequency alternator
Feeding power	1.5kw	1.5kw
Applicator roller power	1.5kw*2	1.5kw*2
Doctor roller power	0.55kw*2	0.55kw*2
Heating power	2kw*2	2kw*2

Video

Characteristic

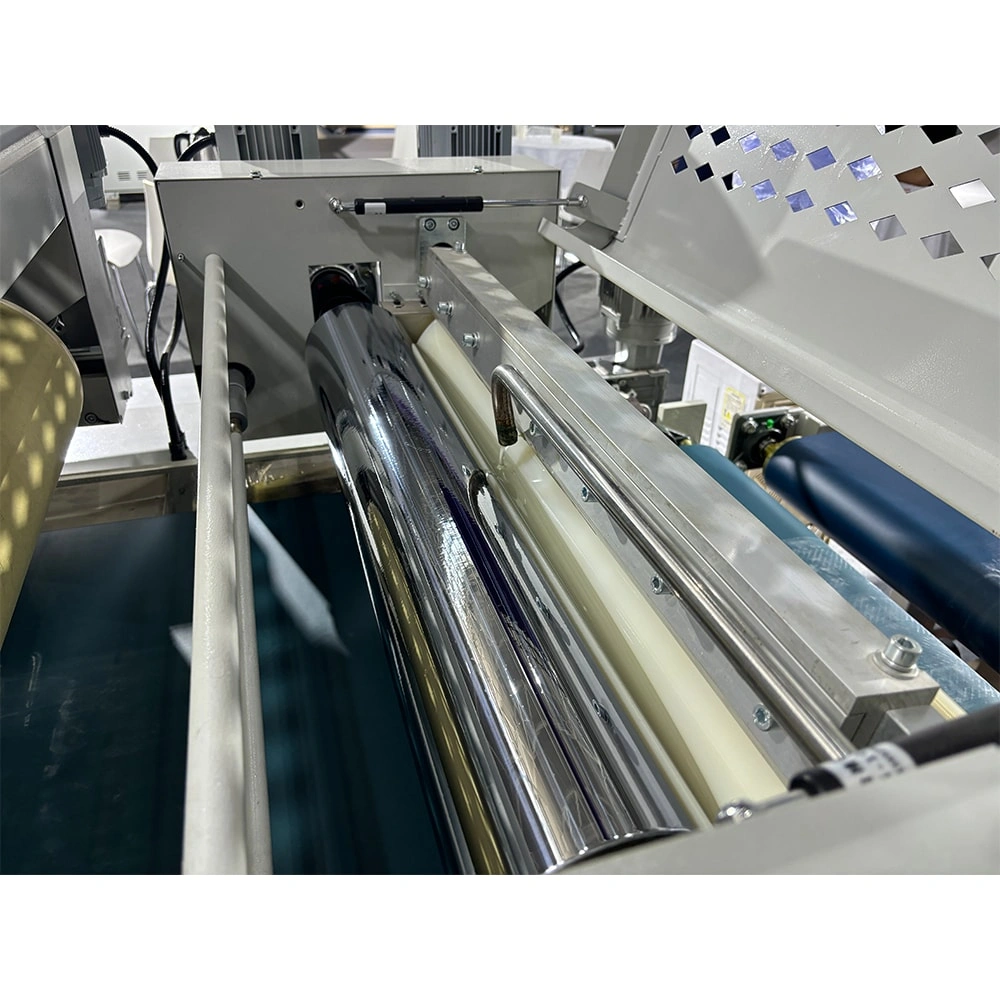

Roller Coating Machine is a device that applies paint onto flat materials through the rotation of two rollers. Due to the rotation of the rollers, the paint is evenly distributed on the surface of the workpiece, resulting in a significant increase in coating thickness and coating effect. As a result, the appearance quality of the product is greatly improved.

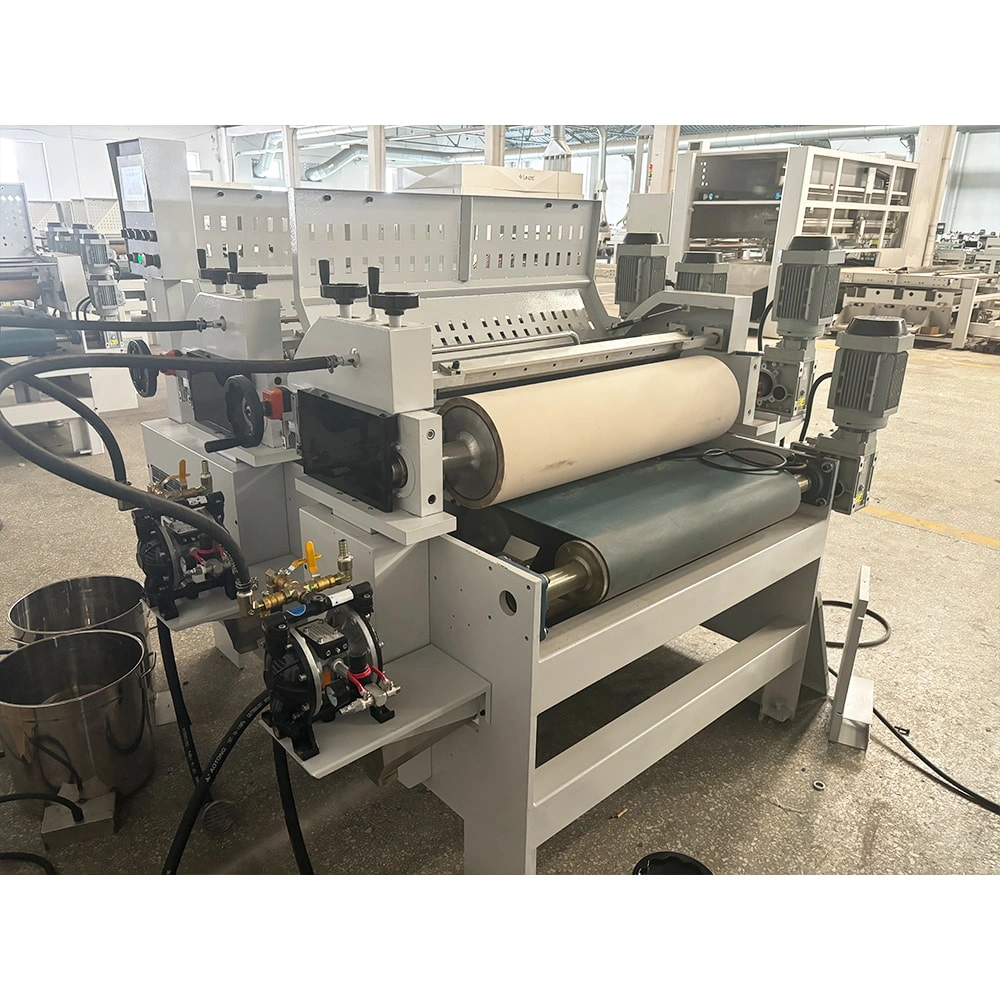

Roller Coating Machine paint circulation unit adopts a complete set of stainless steel paint reflux tank system, which is designed to be detachable and can be quickly replaced and cleaned. Roller coating is equipped with a high-power diaphragm pump, which has greater suction force and longer service life.

In areas with lower winter temperatures, The paint on the roller of the roller coating machine is prone to solidification, a steel roller heating roller system and an independent hot water circulation pump can be selected for smoother circulation and more even heating of the steel rollers.
