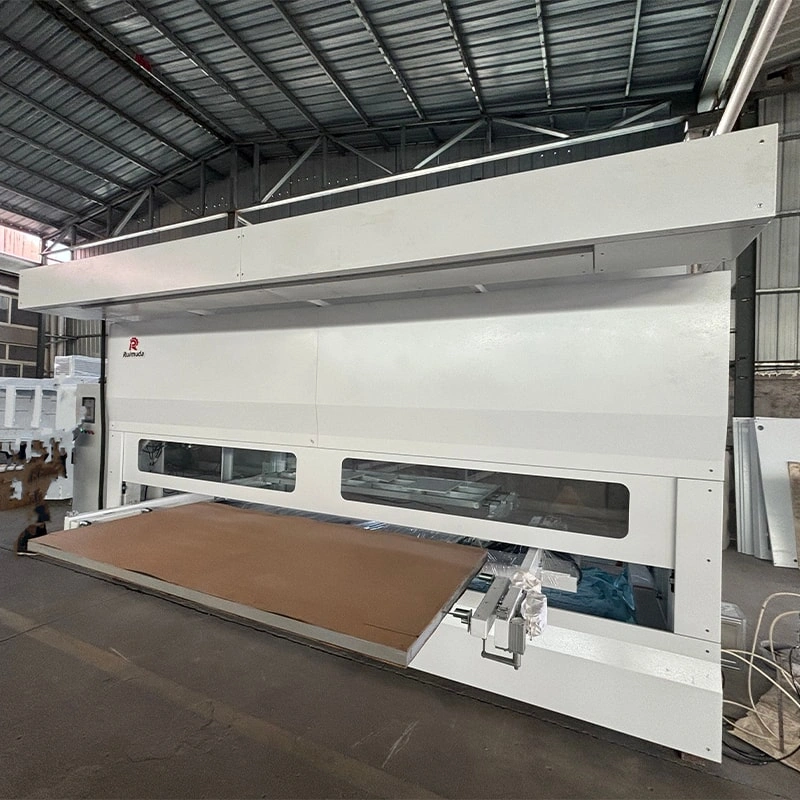

Automatic 3D scanning spray painting machine

Automatic 3D scanning spray painting machine

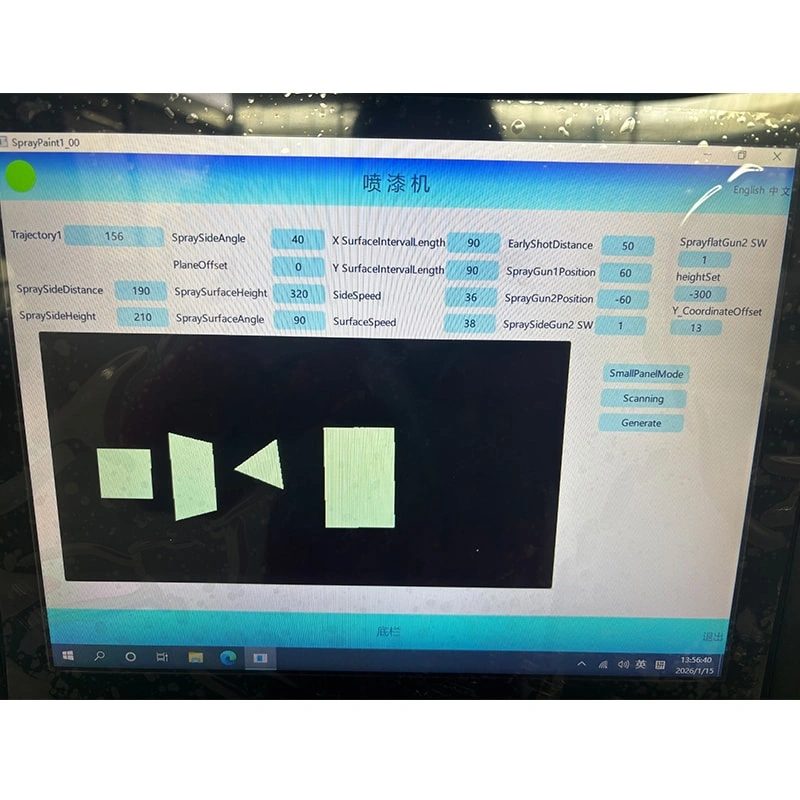

3D scanning is a spray painting machine that recognizes the size and contour of workpieces through a scanner. Our company's independently developed scanning system processes and analyzes images through complex algorithms run by computers, extracts three-dimensional information of objects, and then displays it clearly on the operation screen. The spray gun will spray paint according to the displayed graphics.

Inquiry Contact

Technical parameters

Model	PMC30
Max. spraying size	2500X1300X150mm
Max. weight of door	42kg
Gun reciprocate speed	0-100m/min
Working pressure	0.6-0.8Mpa
Total power	8kw
Figure dimension	4500×5530×2915mm
Weight	3700kg
X-axis power	0.75kw
Y-axis power	1.5kw
Z-axis power	0.4kw
U-axis power	0.4kw
V-axis power	0.2kw

Video

Characteristic

The 3D scanning spray painting machine will greatly save manual operation. The scanner can automatically scan the workpiece and perform precise spray painting. It has increased production efficiency
