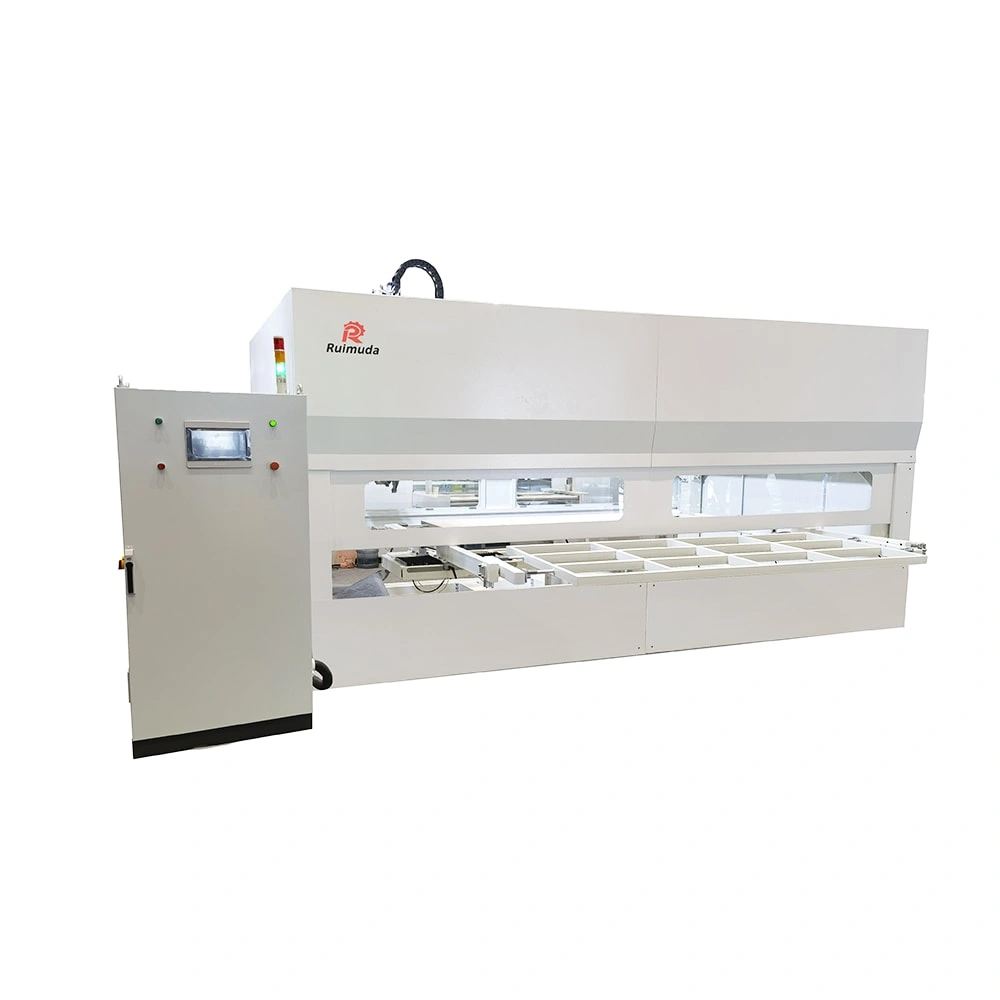

CNC 5-Axis Spray Painting Machine

CNC 5-Axis Spray Painting Machine

CNC 5-axis spray painting is suitable for simultaneously spraying workpieces of different sizes. According to the input parameters, it can precisely spray and save paint.

Inquiry Contact

Technical parameters

Model	PMC25
Max. spraying size	2500X1300X150mm
Max. weight of door	42kg
Gun reciprocate speed	0-100m/min
Working pressure	0.6-0.8Mpa
Total power	8kw
Figure dimension	4500×5530×2915mm
Weight	3700kg
X-axis power	0.75kw
Y-axis power	1.5kw
Z-axis power	0.4kw
U-axis power	0.4kw
V-axis power	0.2kw

Video

Characteristic

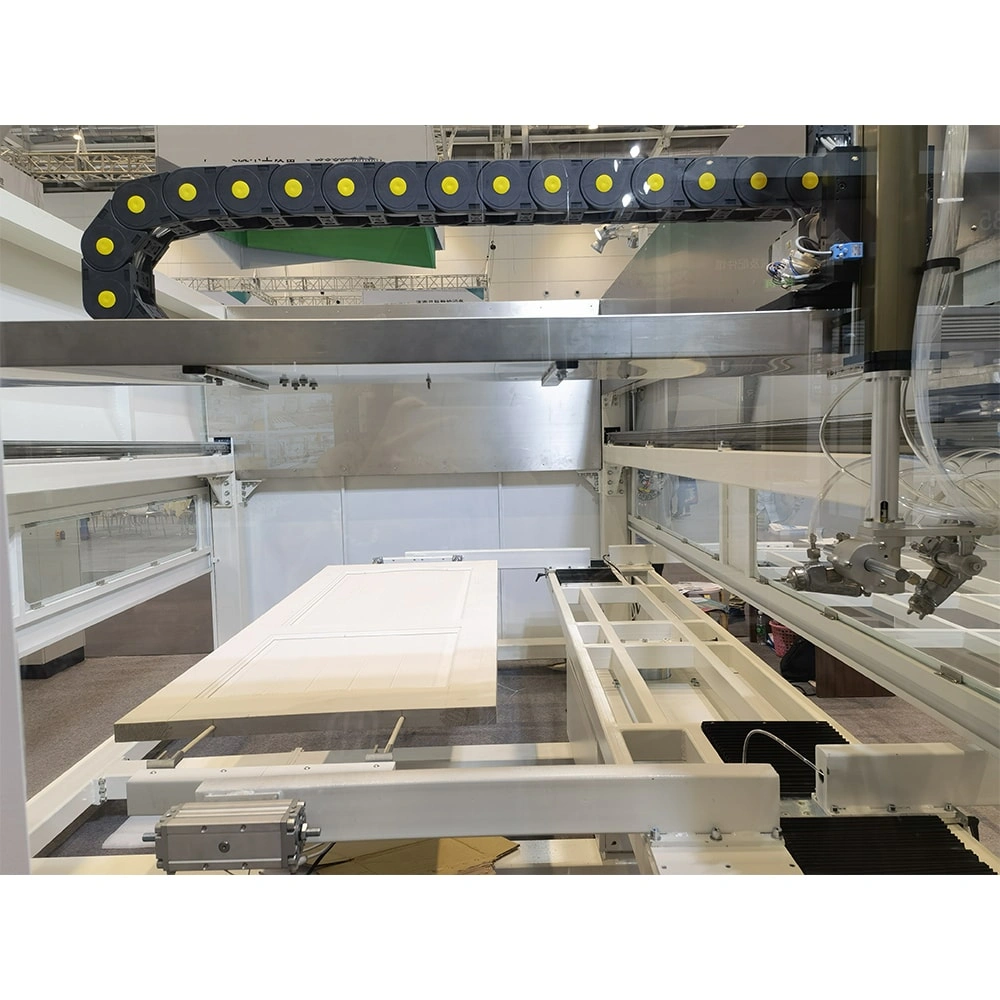

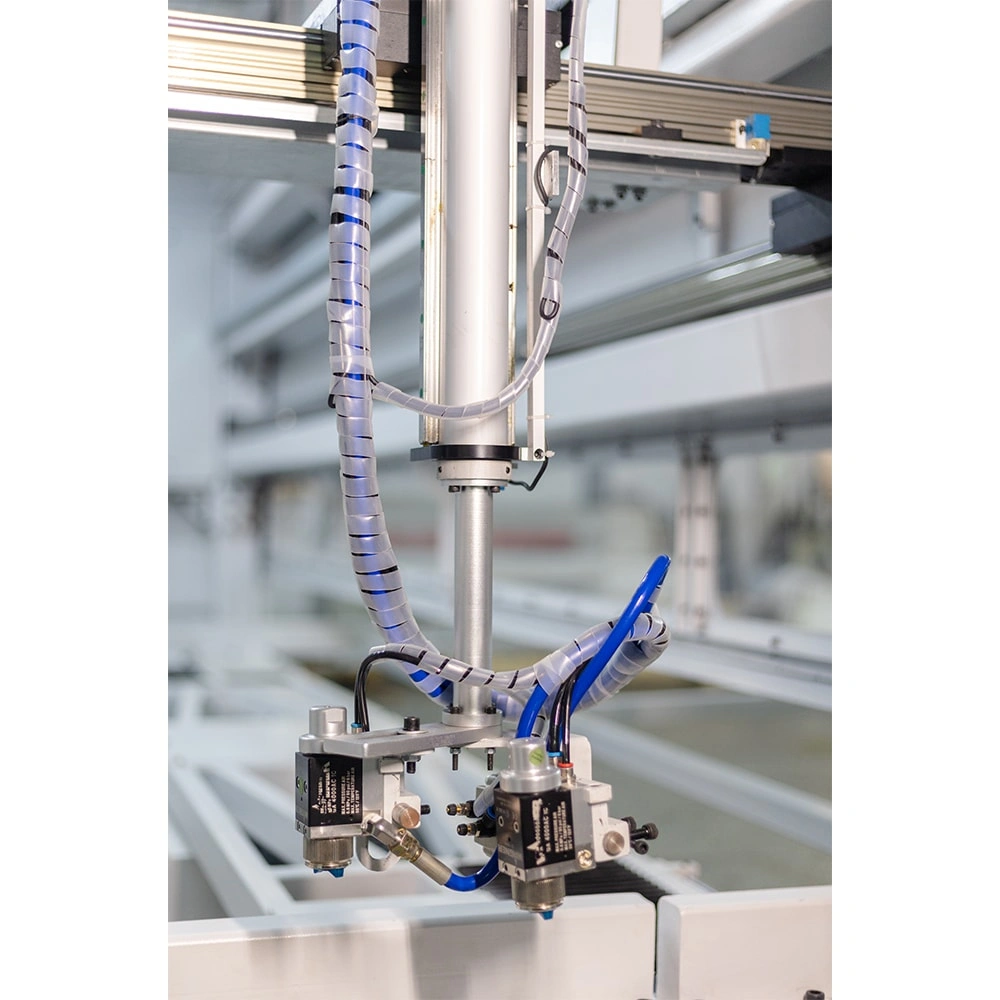

The CNC 5-axis paint spraying machine achieves precise, efficient, and uniform spraying of complex surfaces and irregular workpieces through five axis linkage technology. Through CNC programming control, the spray volume, running speed, and angle of the spray gun can be adjusted.

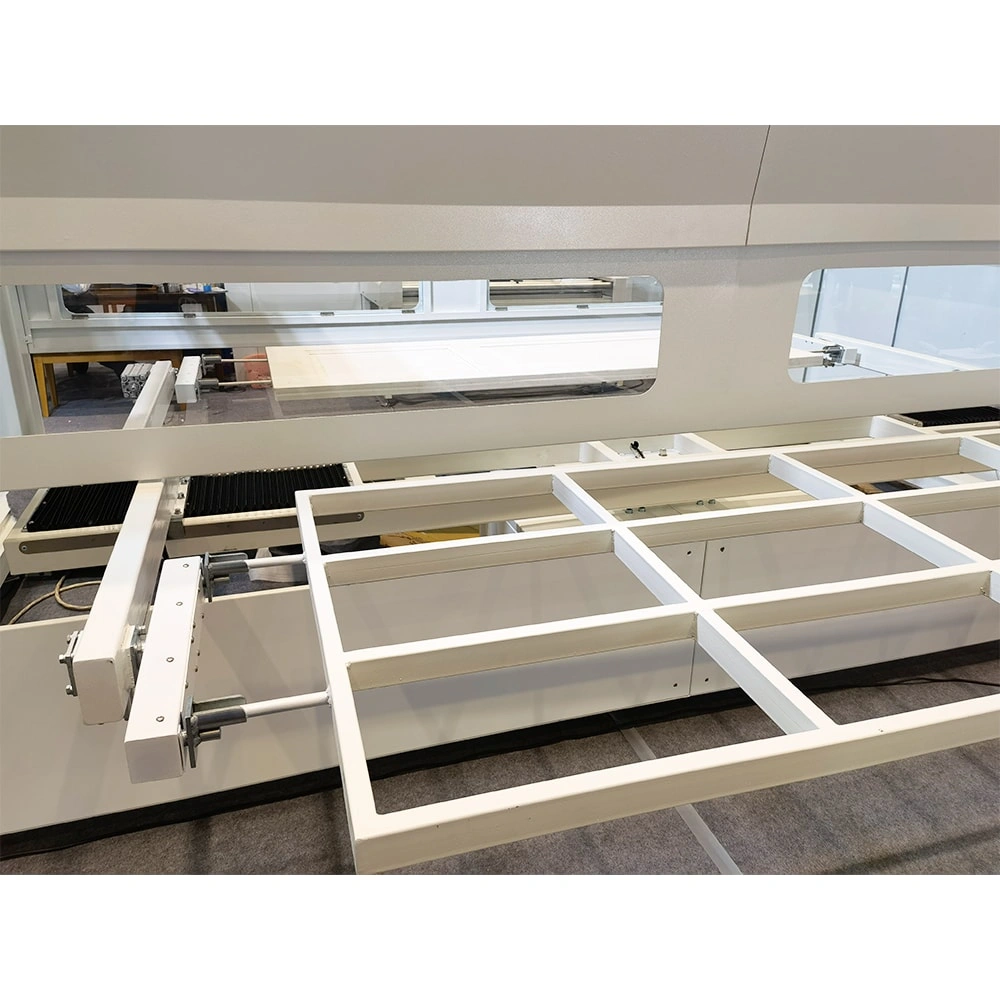

The CNC 5-axis paint spraying machine spray painting adopts a rotary automatic feeding method for processing, can operate at full load for 24 hours, has a fast production speed, and the output can reach 160-240 doors per hour.

The adoption of servo motors and high-precision guide rails can ensure uniform gun speed, even spraying, and reduce the occurrence of mechanical failures.The CNC 5-axis paint spraying machine with intelligent software,easy to learn and easy to operate ,can support multi languages
