Curtain Coating Machine

Curtain Coating Machine

The curtain coating is suitable for high-gloss surface coating and is mainly used for processing high-gloss coatings such as UV varnish and topcoat. It is applicable to high-gloss effect coating of flat materials such as furniture boards and tile background walls.

Inquiry Contact

Technical Parameter

Model	RMC60	RMC130
Max.Workpiece width	600mm	1300mm
Feeding speed	0-80m/min	0-80m/min
Workpiece thickness	2-60mm	2-60mm
Min. Workpiece length	300mm	300mm
Feeding power	1.5kw	3.7kw
Heating power	3kw*2	5kw*2

Video

Characteristic

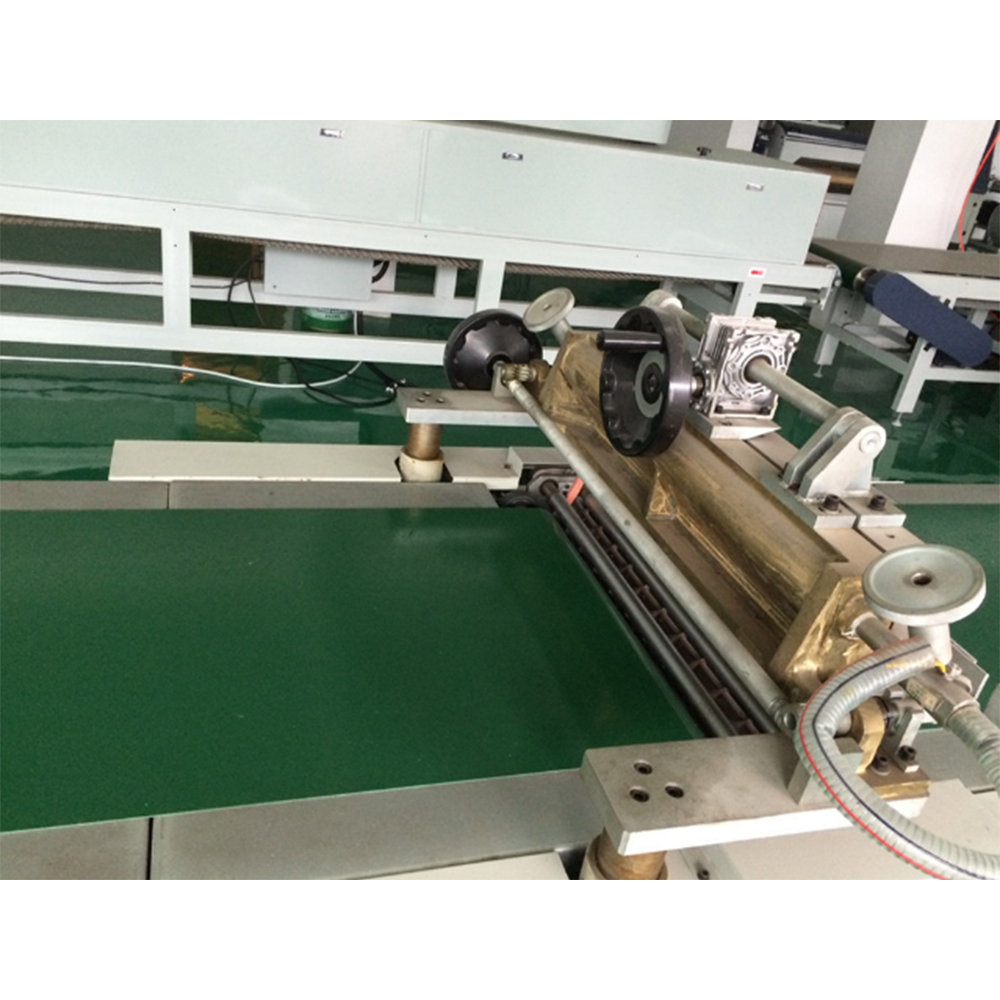

The curtain coating machine evenly coats the surface of the workpiece with a vertical curtain of paint ,It is used to coat the top of flat articles and makes the surface of paint smoothly and delicately, the coating thickness can be adjusted accurately, make sure the surface of paint uniform.

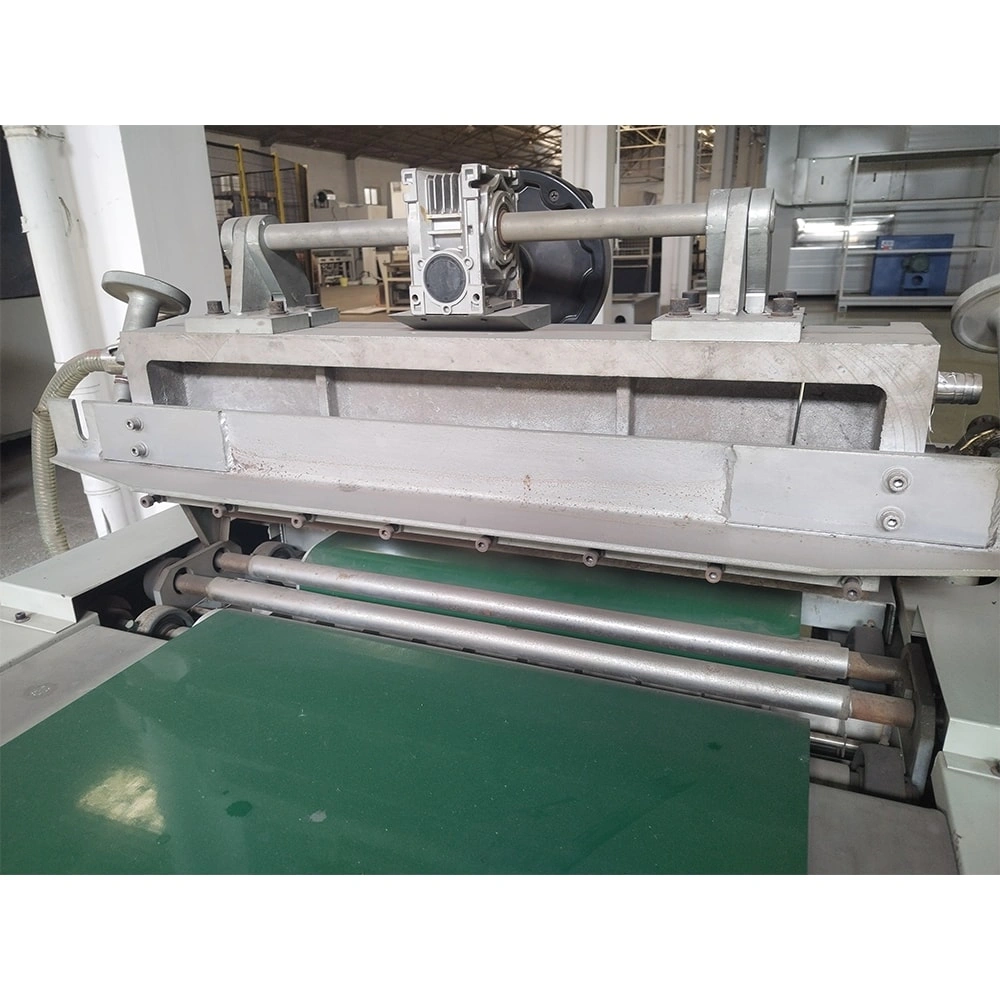

The flow rate of the paint is controlled by adjusting the gap of the curtain head. Conveyor belt is controlled by inverter motor, Speed can be adjusted freely Suitable for all kinds of paint.

The curtain coating machine is equipped with an automatic recovery system. redundant paint can recycle.
