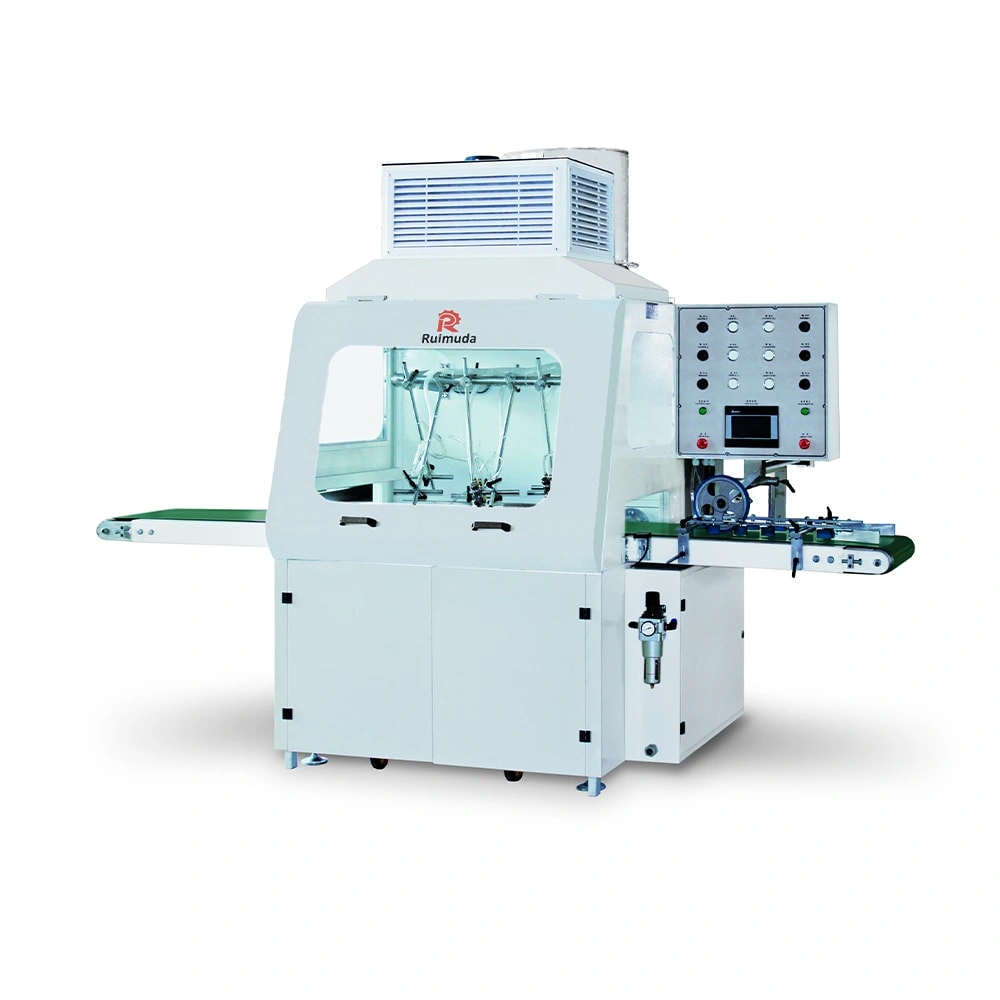

Linear Spray Painting Machine

Linear Spray Painting Machine

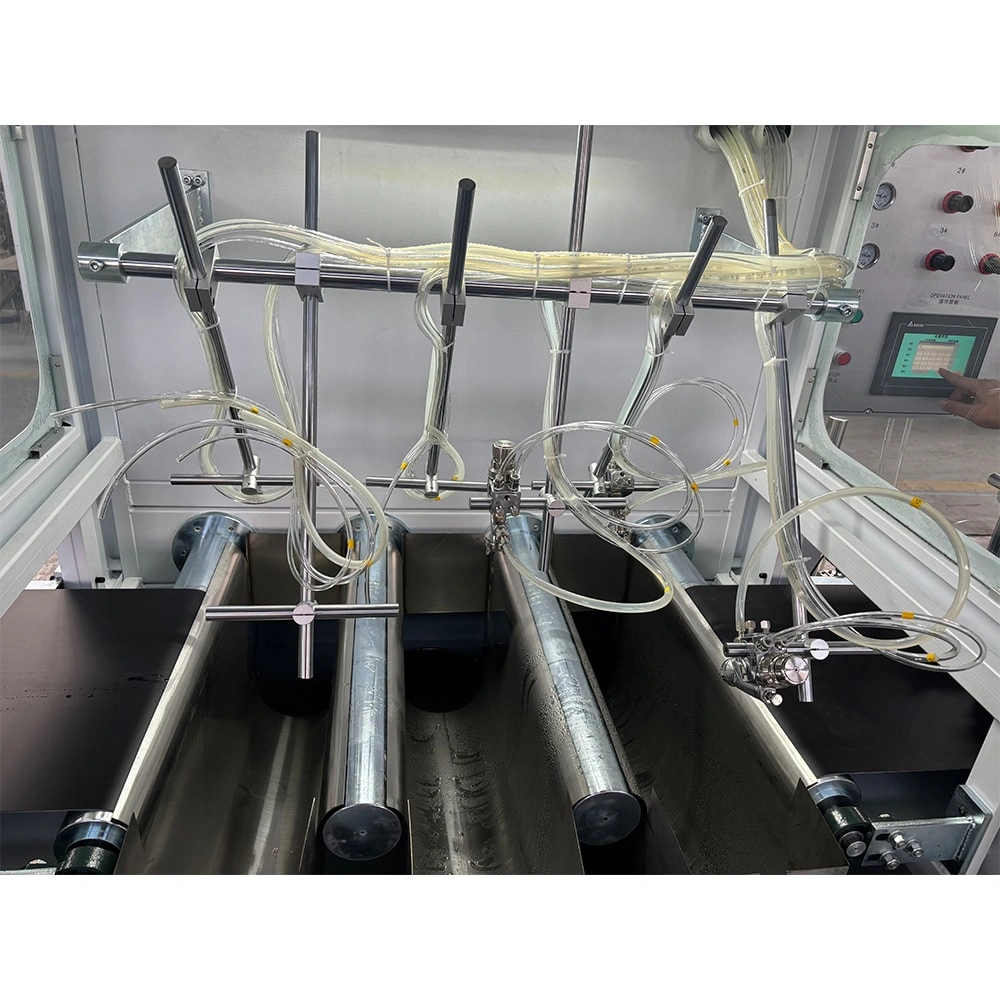

The linear spray painting can be equipped with up to 6 spray guns and can spray paint on five sides of the workpiece simultaneously. The machine is equipped with a paint recovery system, which can save paint loss to a greater extent.

Inquiry Contact

Technical Parameter

Model	PML300	PML600
Processing width	≤400mm	≤600mm
Processing thickness	5-70mm	5-70mm
Length of processing	≥300mm	≥300mm
Power	2.3kw	2.3kw
Air pressure	0.6mpa	0.6mpa
Transport speed	0-12M/min adjustable	0-12M/min adjustable

Video

Characteristic

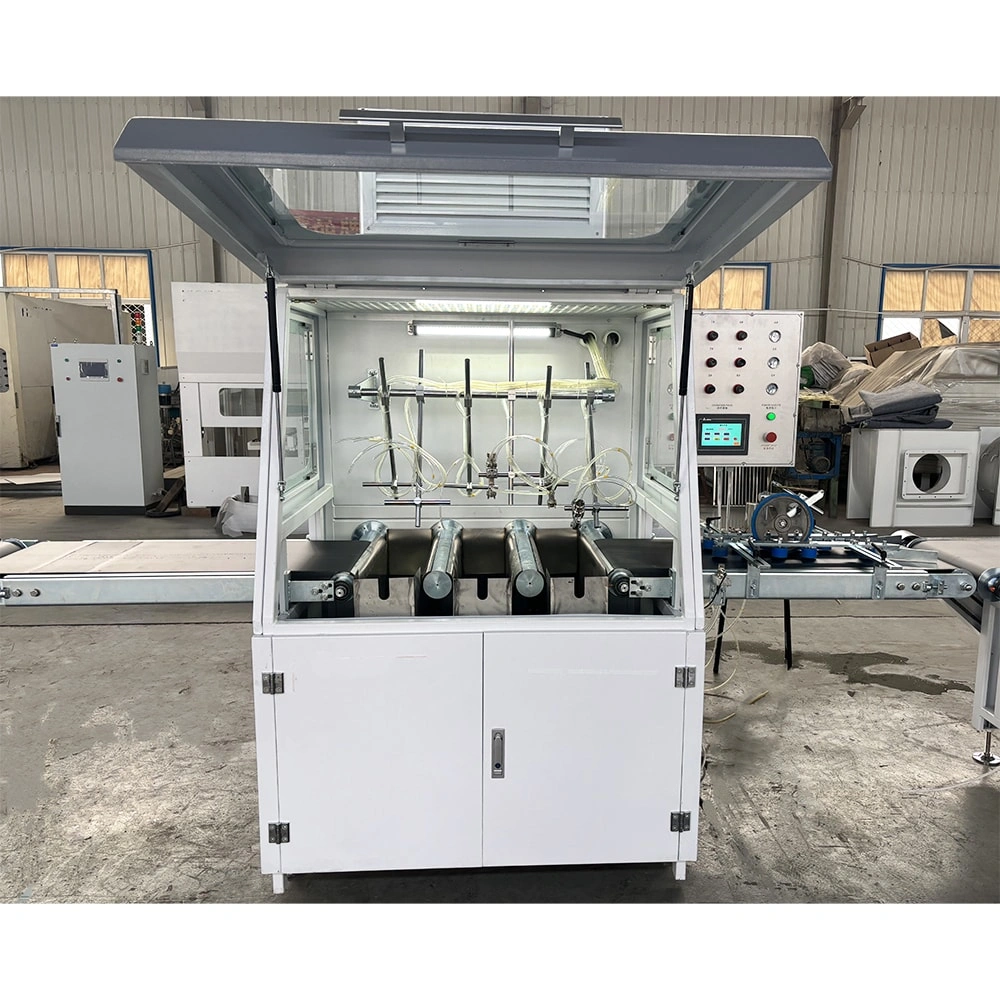

Linear spray painting machine is an automated equipment designed for surface spraying of slender workpieces, which can use UV, PU, PE, NC paint for automated spraying operations.Fully enclosed spray chamber design, filtering in and out of the air system to avoid the entry of dust and impurities, so that the spraying surface quality is higher.

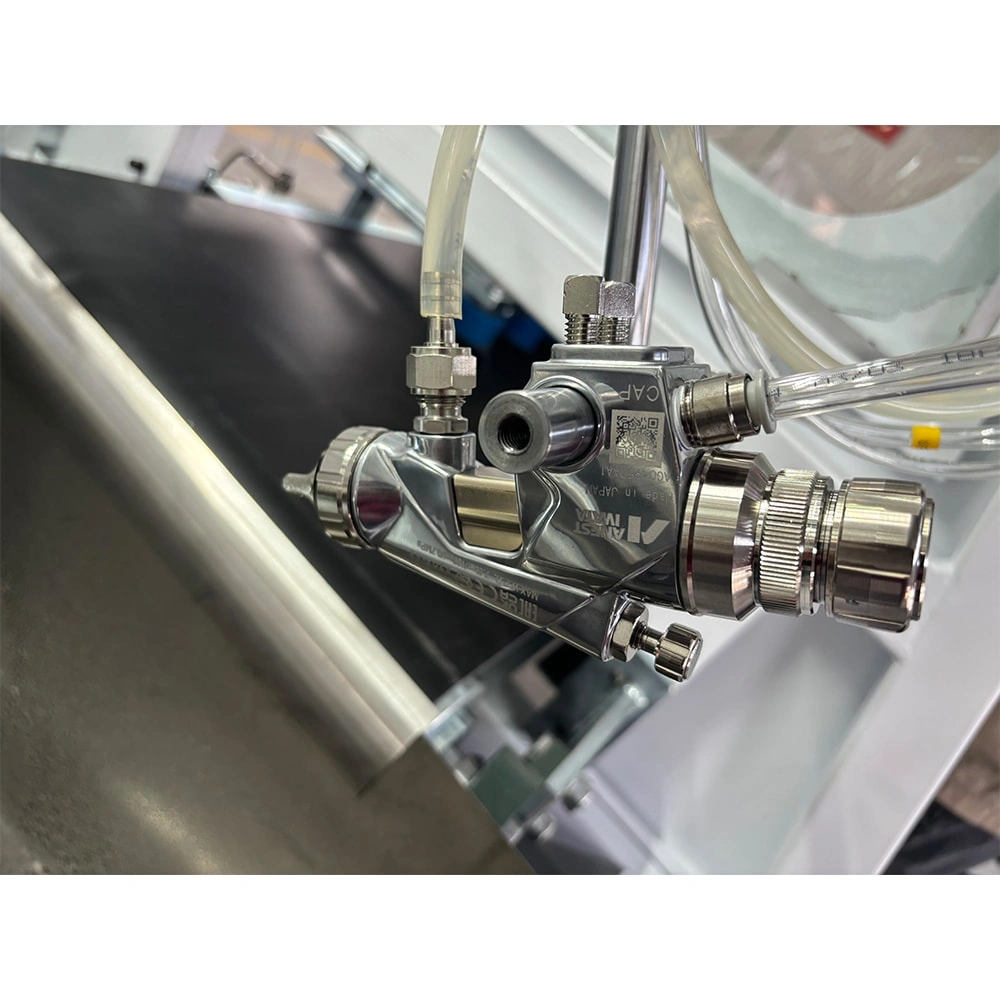

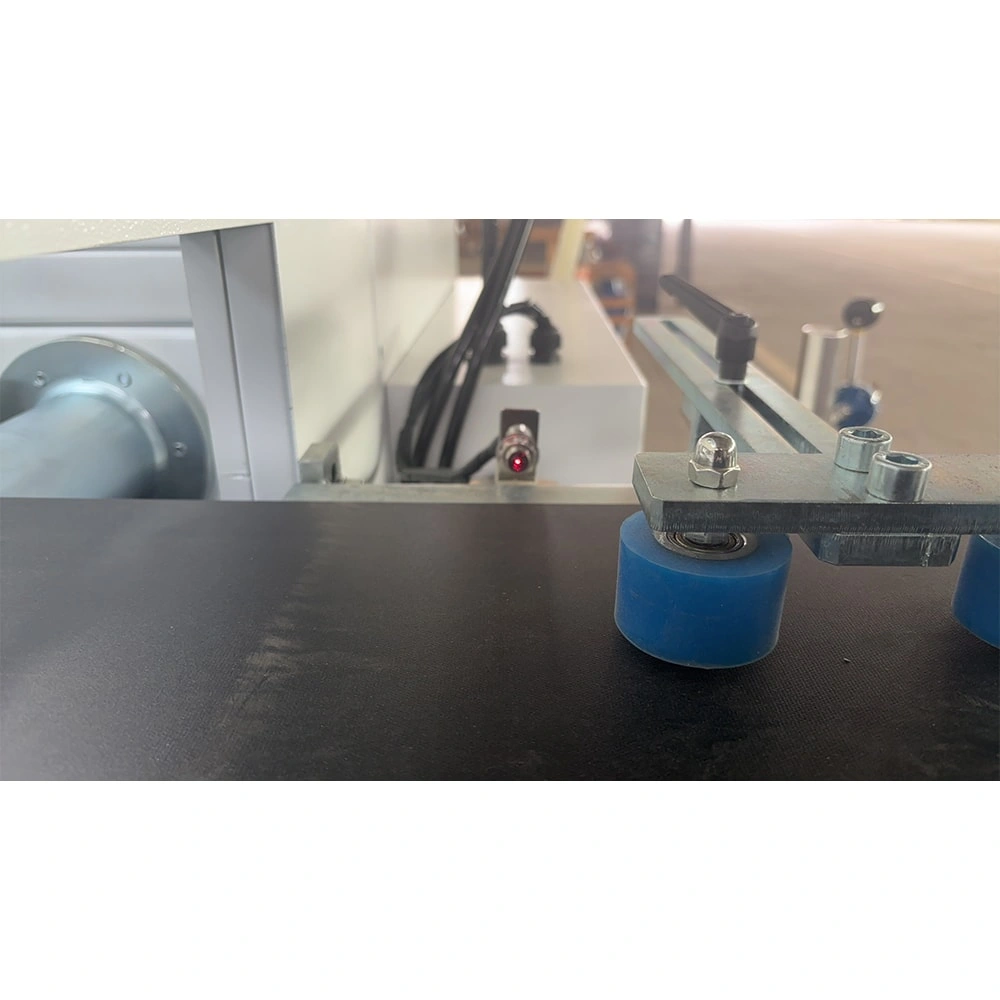

Linear spray painting machine equip with automatically identifies system, the workpiece into the spray chamber, the spray gun opened. Each spray gun is independently controlled to save more paint. The machine is equipped with air spray gun. The principle of air spray ensures the perfect painting effect of the workpiece.

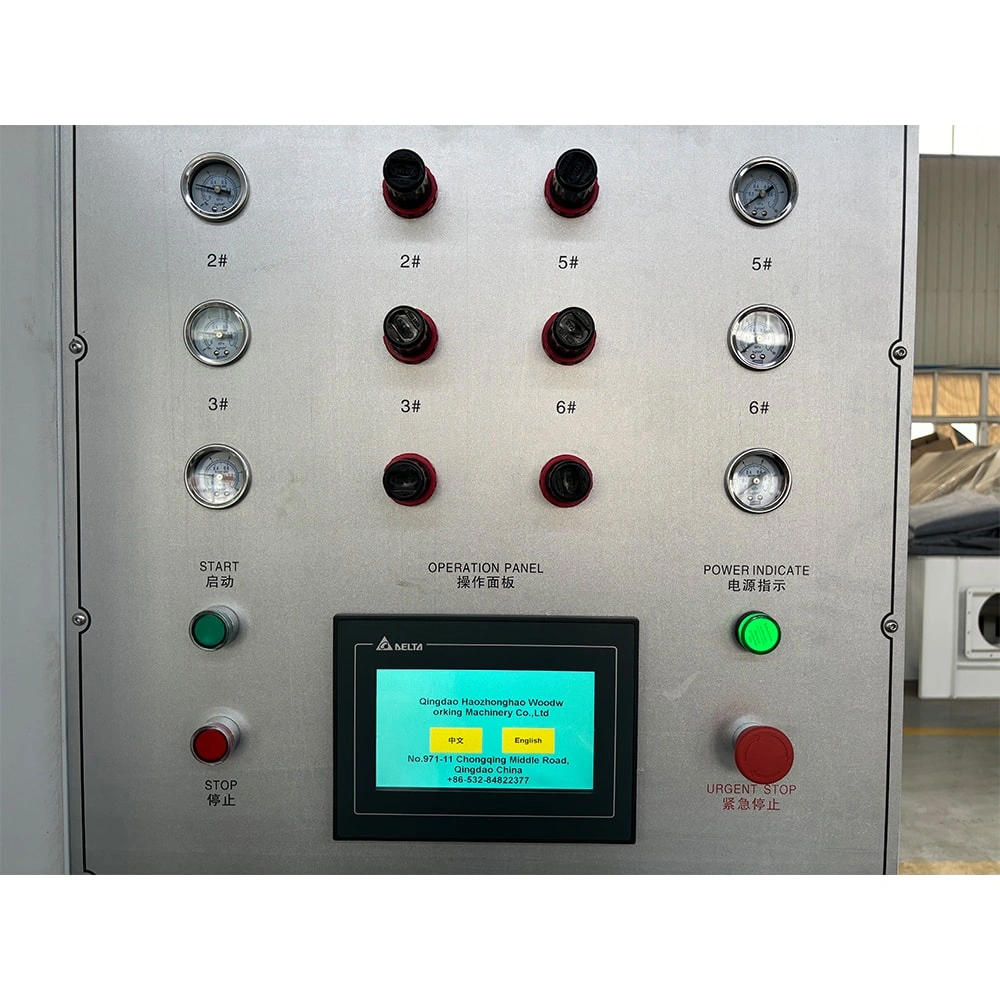

Fire-proof lighting systems are installed in the interior of the spraying room.Linear spray painting machine has humanized graphical interface to facilitate the input of various working and equipment parameters.
