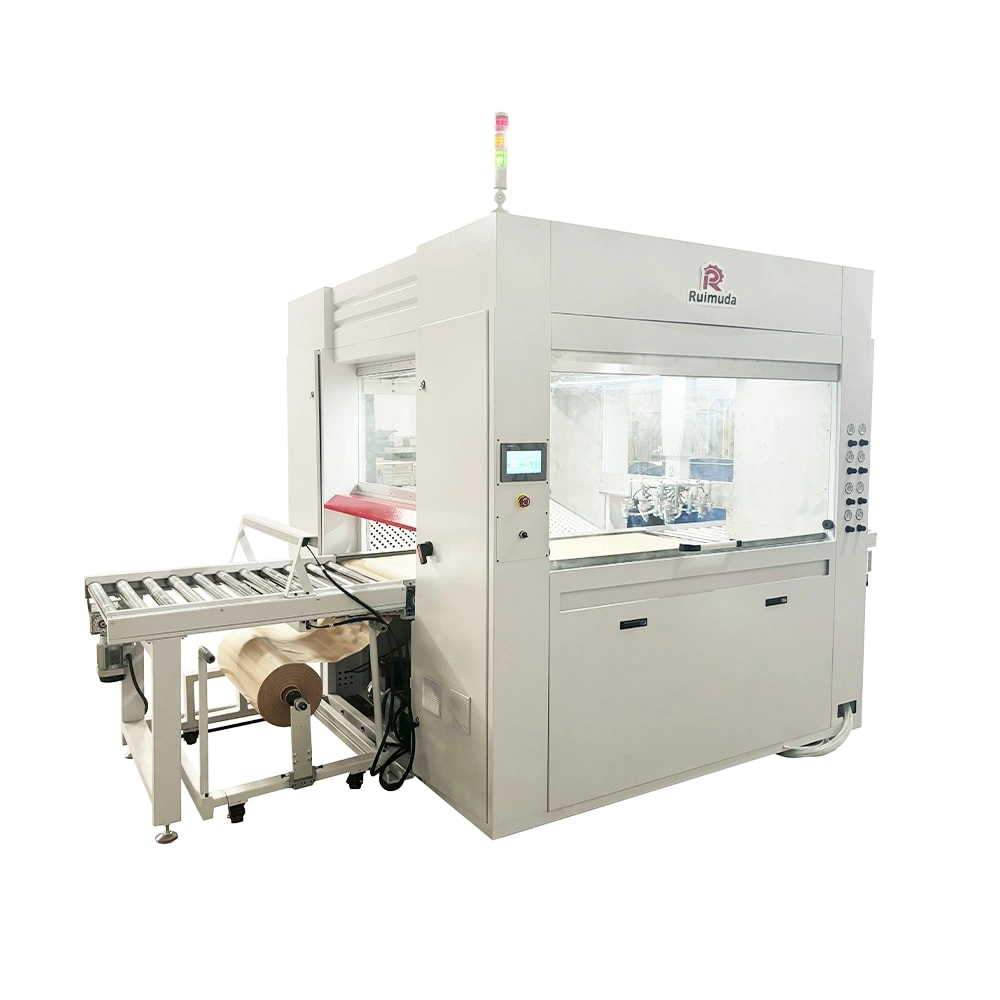

The automatic reciprocating spray painting can spray workpieces with a maximum height of 150mm. It is equipped with a dust cover and protective Windows to isolate the paint dust in the spray painting chamber, avoiding the adverse effects of paint dust on the operator and improving product quality.
| Model | PMR130 | PMR650 |
|---|---|---|
| Max. Working width | 1300mm | 650mm |
| Working thickness | 5-70mm | 5-70mm |
| Air exhaust volume | 110003/h | 110003/h |
| Overlay spray gun erection speed | 0.2-2.5m/s | 0.2-2.5m/s |
| Conveyor belt speed | 0--12m/min | 0--12m/min |
| Working pressure | 0.4-0.6Mpa | 0.4-0.6Mpa |
| Air flow volume | 2m3/min | 2m3/min |

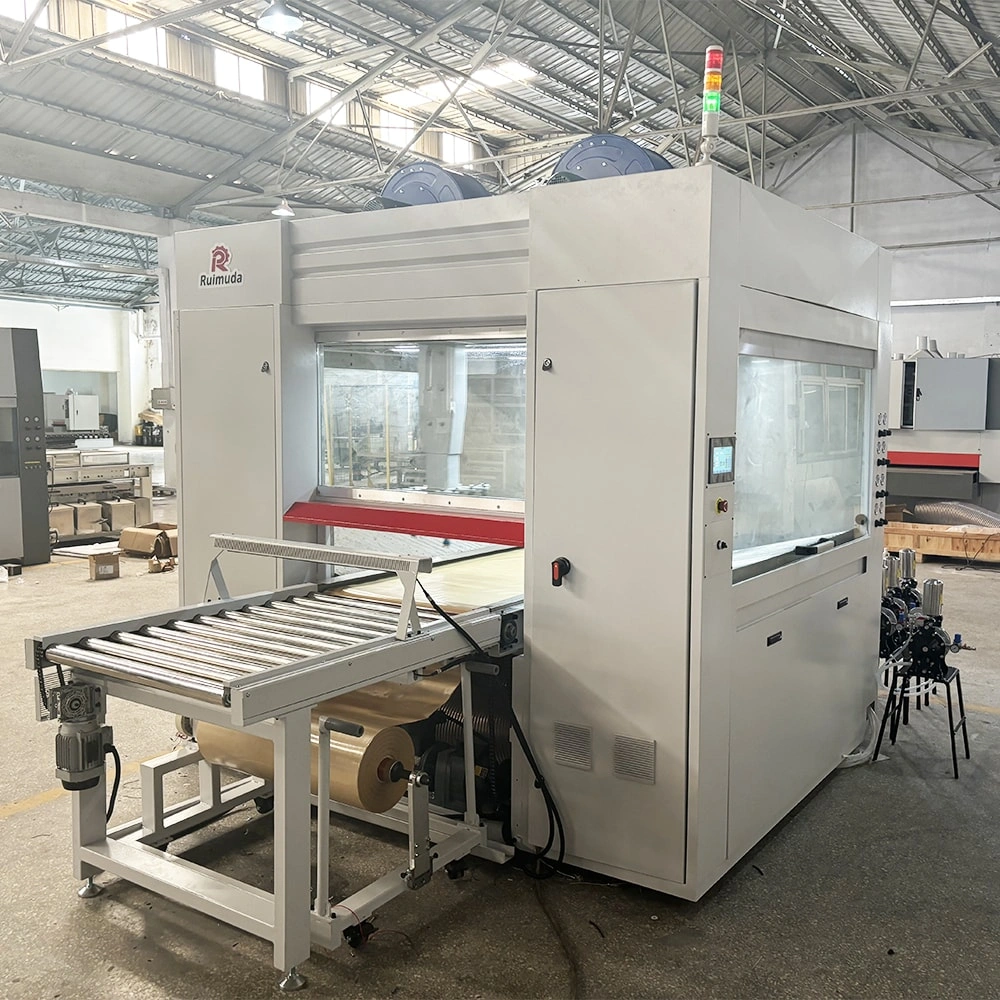

The Automatic reciprocating spray painting machine achieves efficient spraying through the reciprocating motion of the spray gun, suitable for flat or nearly flat workpieces. Its spraying speed is fast and efficient, which can significantly improve production efficiency. The spray gun runs smoothly without any shaking. The machine is designed with transparent glass windows on both sides, which can monitor the painting operation status in real time.
The Automatic reciprocating spray painting machine is equipped with an automatic paint recovery system,Excess paint automatically flows towards the recycling device. The image scanning device at the entrance of the machine can automatically scan the external dimensions of the workpiece and transmit data to control the operation of the spray guns.

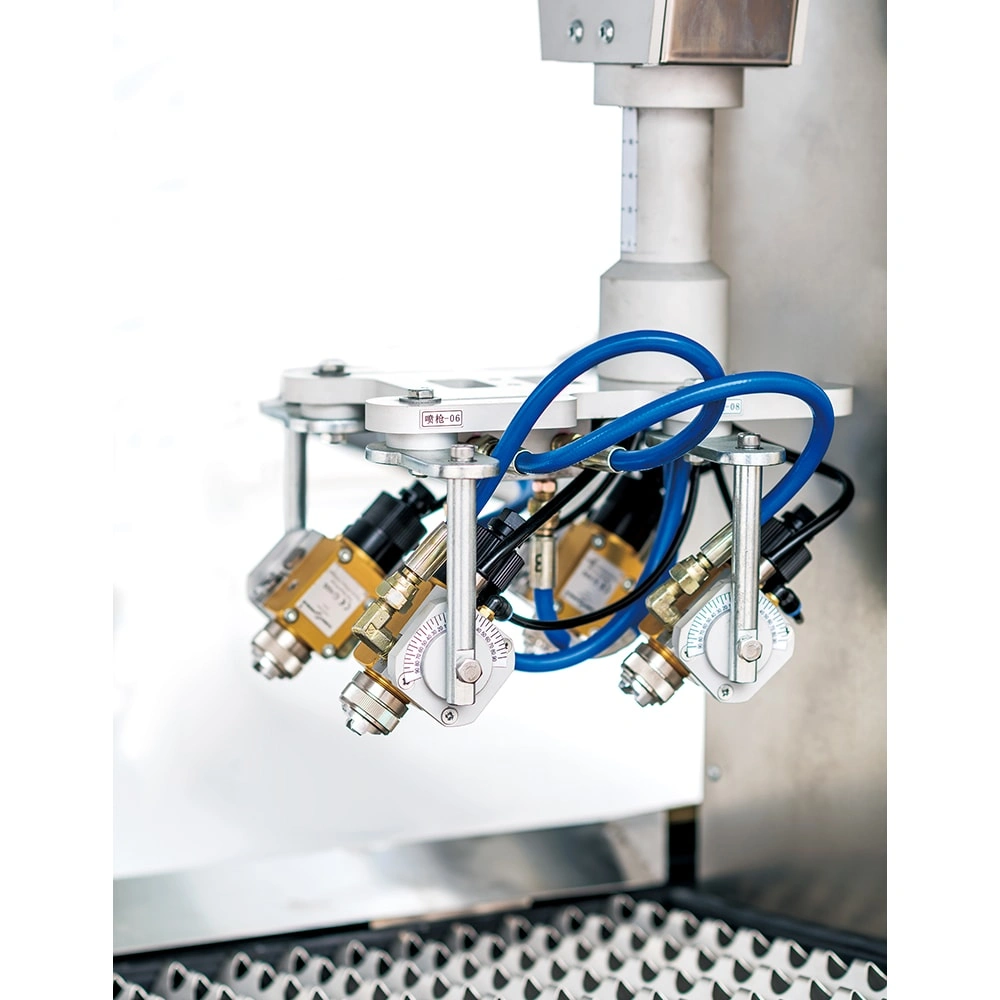

The Automatic reciprocating spray painting machine can be equipped with up to 16 guns, which can change the color of the paint with just one click, greatly improving work efficiency.
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
