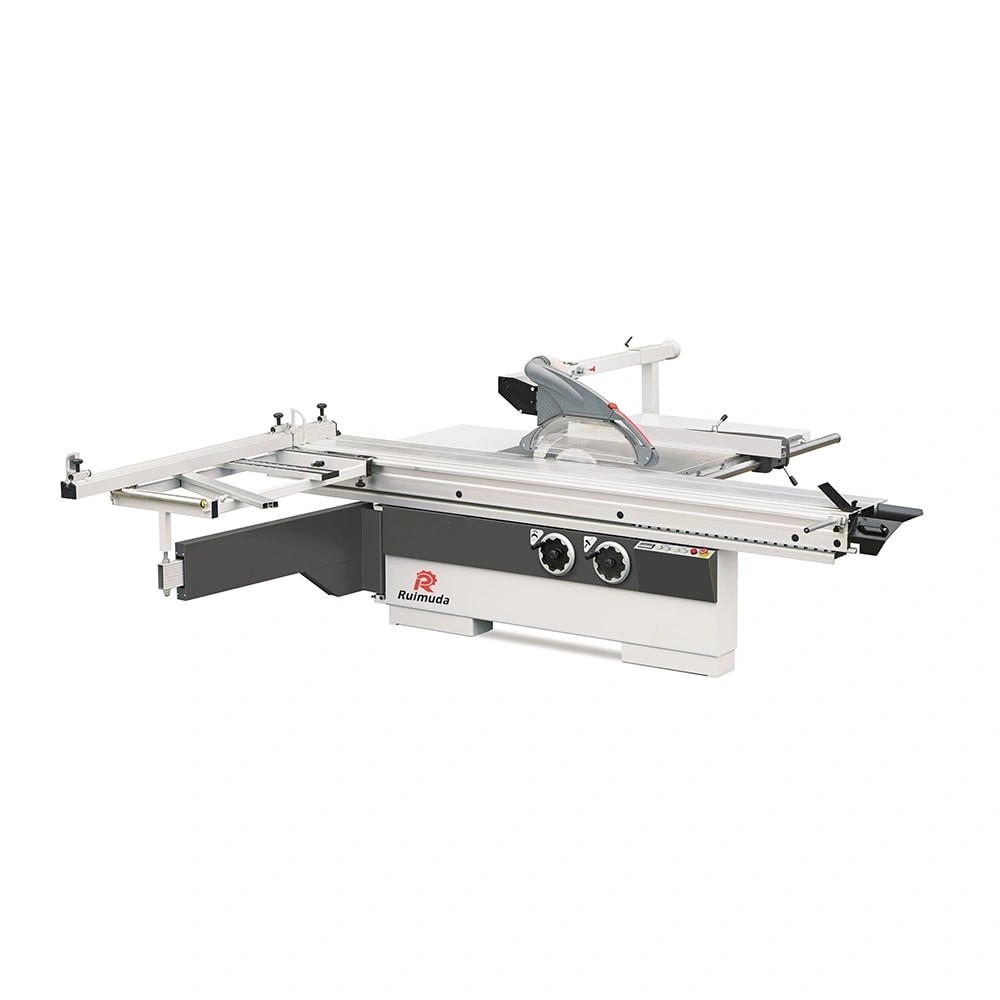

Sliding Table Saw

Sliding Table Saw

Sliding table saw are mainly used for longitudinal sectioning, transverse cutting or angular sawing of plywood, particleboard, fiberboard, veneered board, spliced solid wood board and plastic board, etc., to obtain panels that meet the size and specification requirements.

Inquiry Contact

Technical parameters

Model	RMT3200	RMT3800
Dimension of sliding table	3200*425mm	3800*425mm
Gross cut capacity	3200mm	3800mm
Main saw blade diameter	300mm(250-400mm)	300mm(250-400mm)
Max. Cutting thickness	75mm	75mm
Saw spindle speed	4000-6000rmp	4000-6000rmp
Main spindle diameter	30mm	30mm
Tilting saw blade	0-45°	0-45°
Main motor	5.5kw	5.5kw
Scoring saw blade diameter	120mm	120mm
Scoring saw speed	7000-8000rpm	7000-8000rpm
Scoring spindle diameter	20mm	20mm
Scoring saw power	1.1kw	1.1kw

Video

Characteristic

The sliding table saw is a type of saw specially designed for precise cutting in various types of materials, including MDF,particleboard, artificial board, and ABS board (acrylonitrile butadiene styrene).

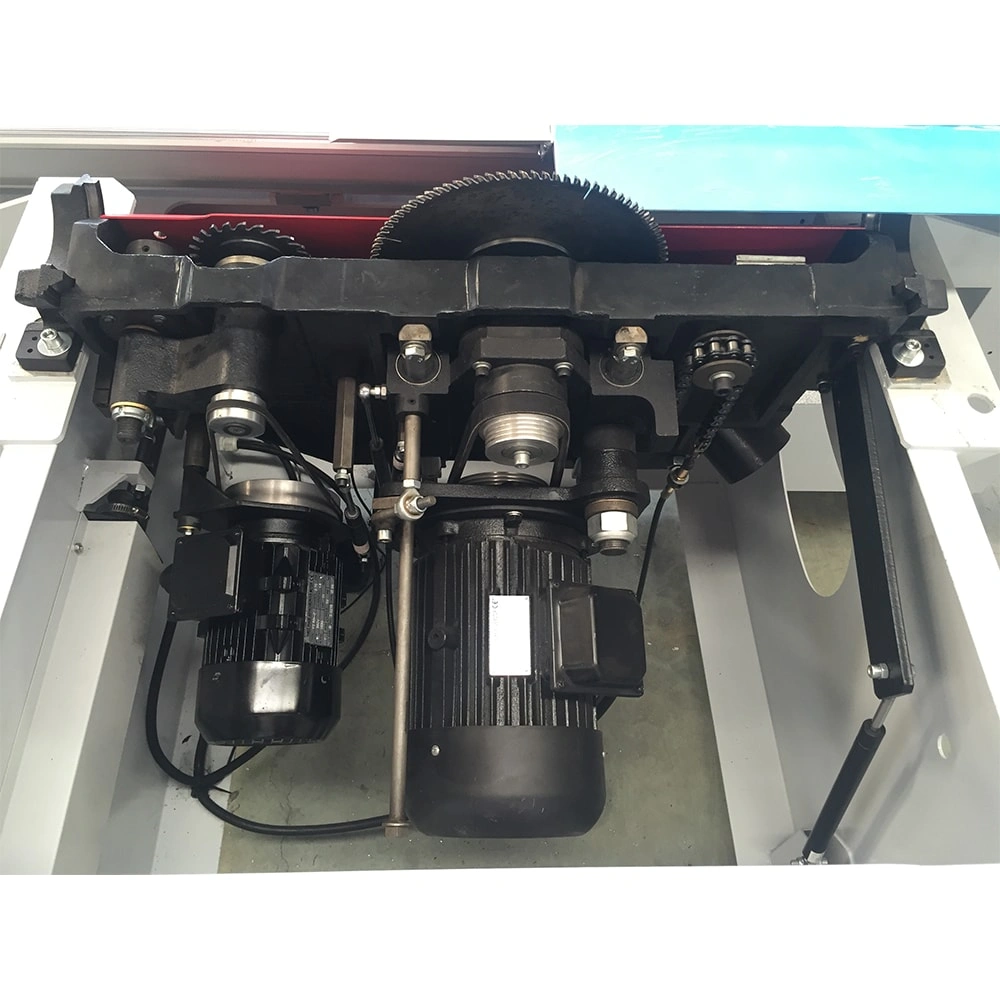

The sliding table saw has two saw blades, which can tilt up to 45 degrees ,The rotational speed of the saw blade is generally above 9000r/min, and the cutting speed is usually 56 to 60m/s.

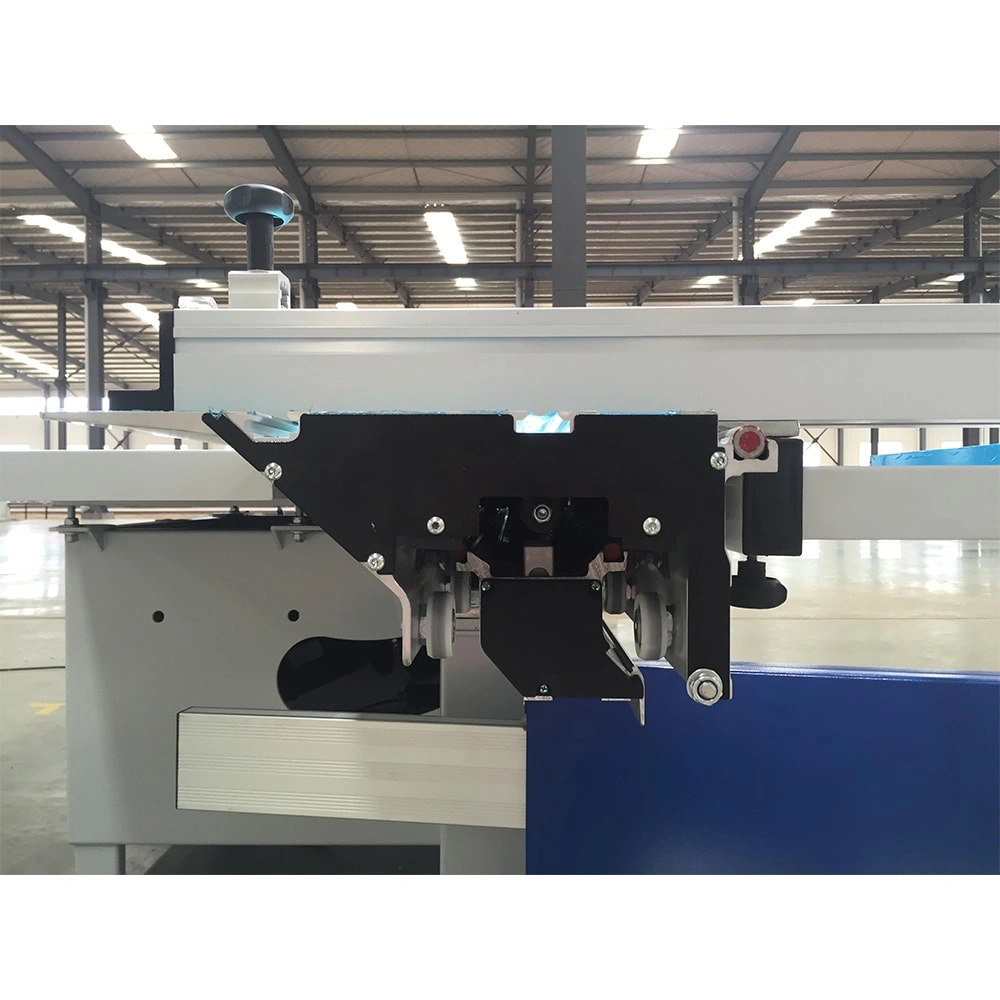

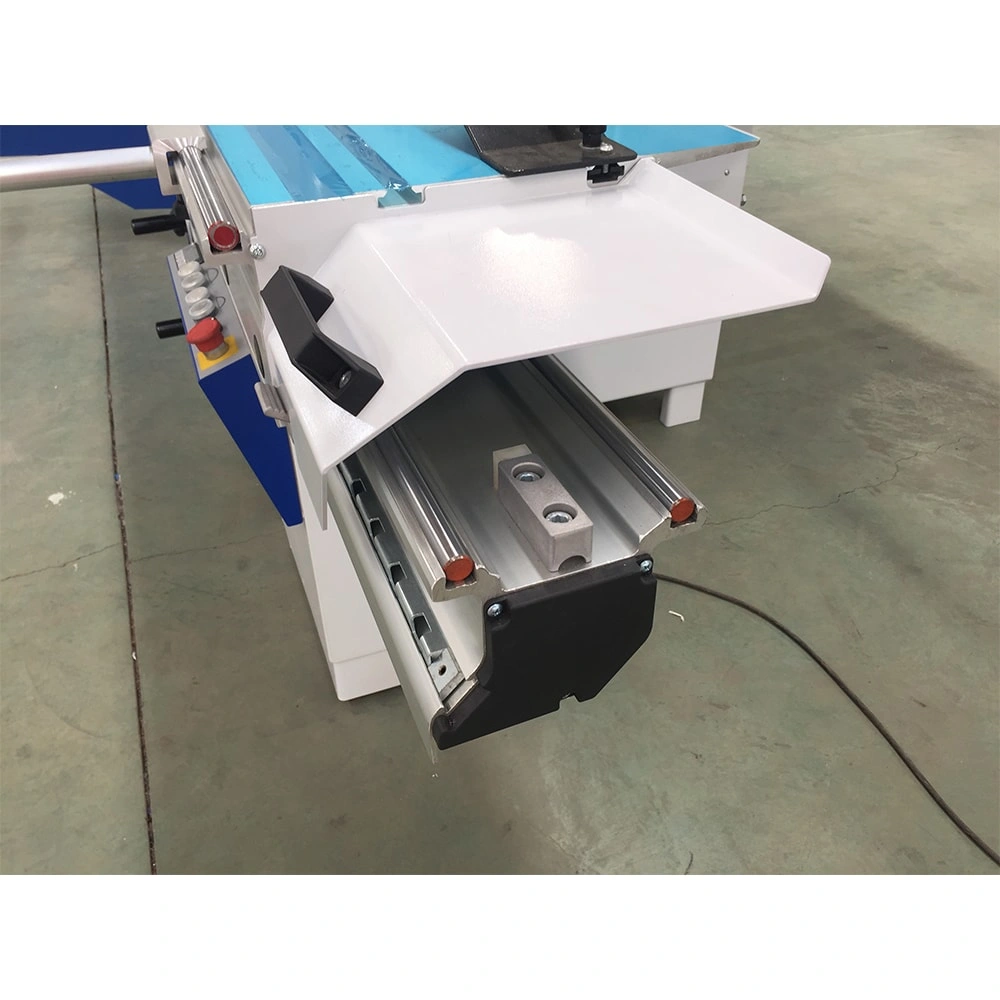

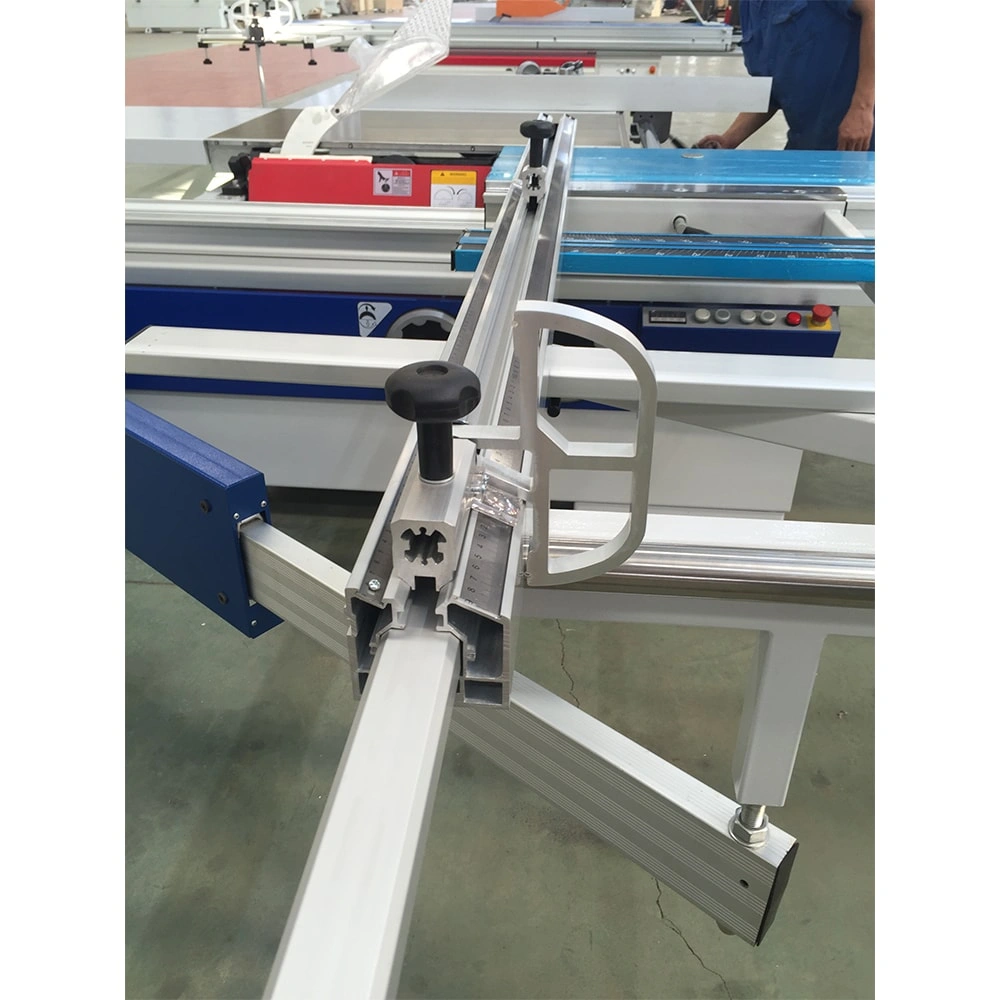

The sliding table saw has 425mm width Aluminum sliding table with double chambers structure. The swing carriage is fixed on the side strong steel bar to ensure the stability.Professional sliding system tolerance at 0.01mm.
