Combination Machine

Combination Machine

The combination machine is a wood processing equipment composed of multiple single-function machine tools. This equipment, through integrated design, effectively enhances the efficiency and accuracy of wood processing and is widely used in forestry production, furniture manufacturing and wood product processing fields.

Inquiry Contact

Technical parameters

Model		TC400
Saw	Dimensions of sliding table	1112*326mm
	Rotary speed of big saw spindle	4500 r/min
	Diameter of main saw spindle	φ300*30mm
	Rotary speed of small saw	7000 r/min
	Diameter of grooving saw	φ90*16mm
	Max sawing thickness	75mm
	Tilting saw blade	45°
Surface Planer	Working table size	400*1800mm
	Guide board size	880*95mm
	Spindle diameter	70mm
	Main Spindle Speed	5700r/min
	Max Cutting depth	4mm
	Tool blade size	400203mm

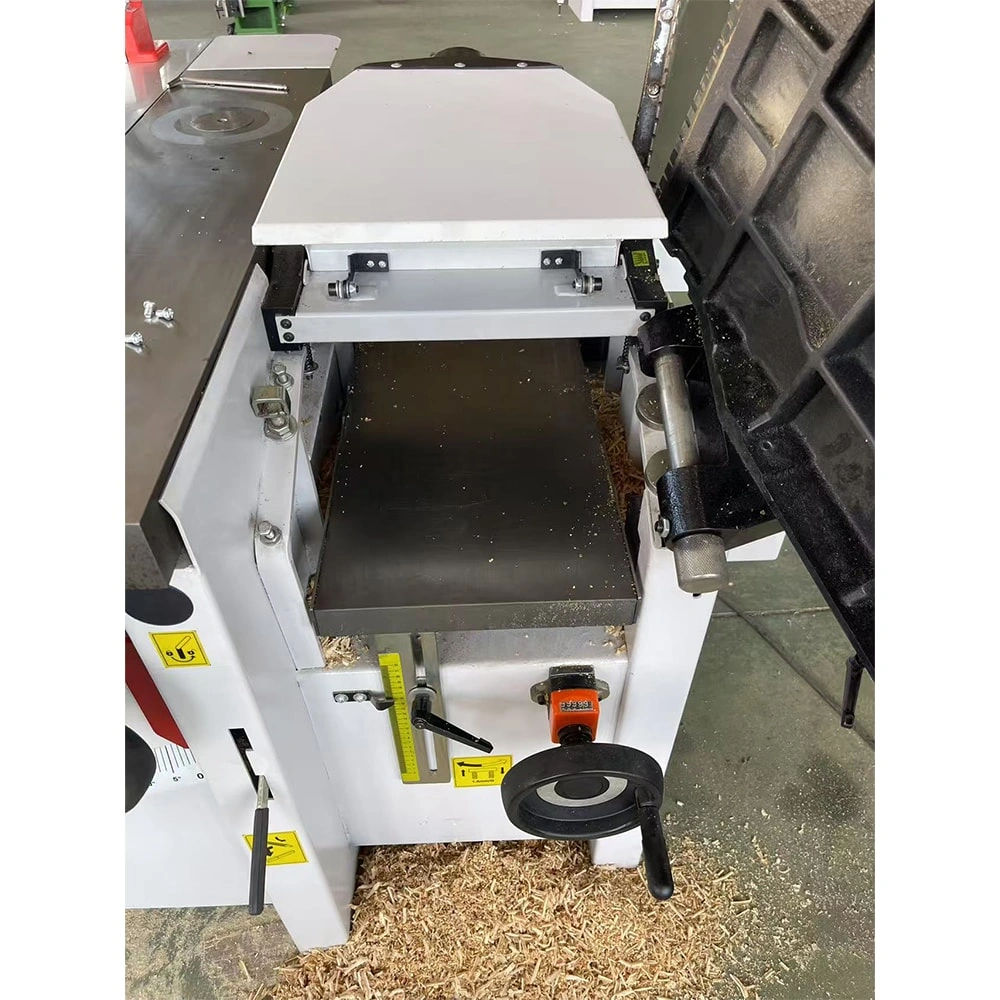

Thickness Planer	Working table size	400*760mm
	Planning Thickness	4-220mm
	Max. cutting quantity	4mm
	Feed Speed	7m/min

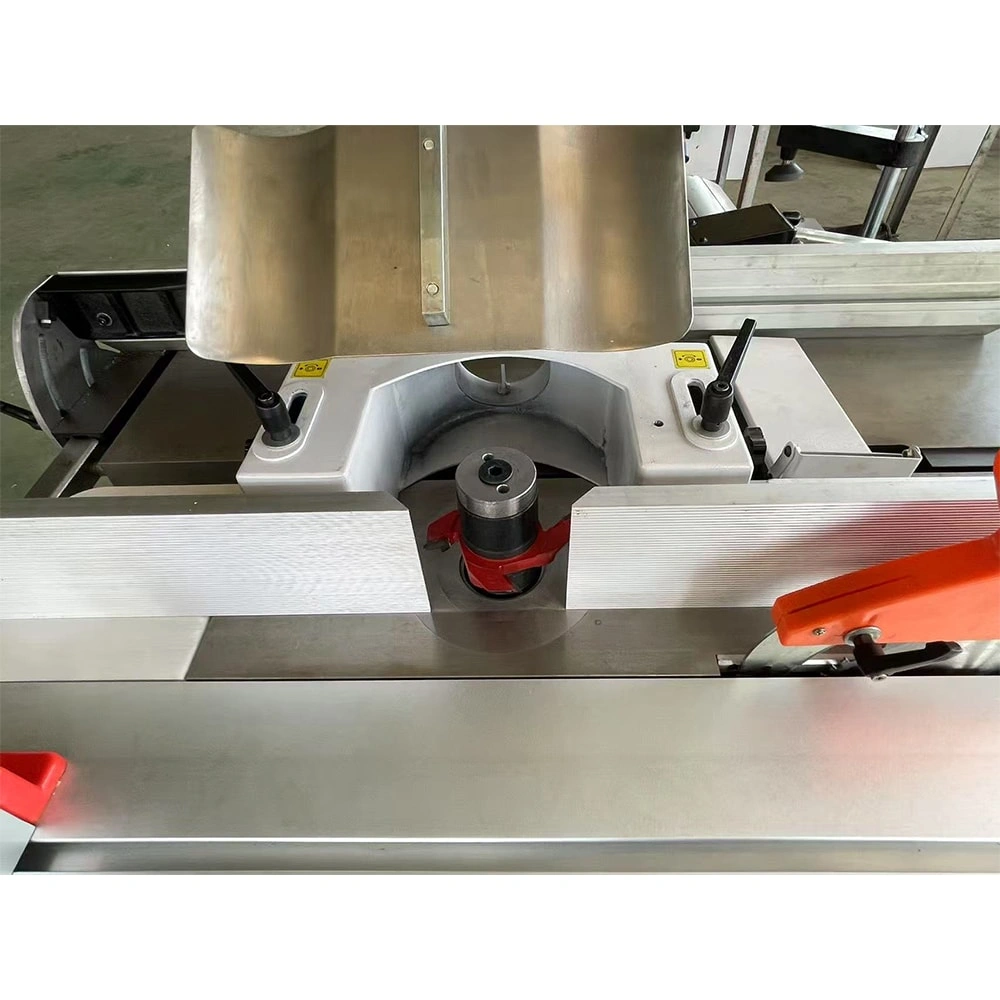

Vertical milling	Table size	1112×326mm
	Spindle diameter	Φ30mm
	Main spindle speed	2000/3100/440/7000r/min
	Spindle vertical stroke	115mm
	Blade tool holder	180mm
Mortising	Working table size	250*500mm
	Max. mortise length	205mm
	Max. mortise height	95mm
	Max. mortise depth	90mm
	Blade shaft diameter	Φ16mm
	Main spindle speed	5700r/min

Video

Characteristic

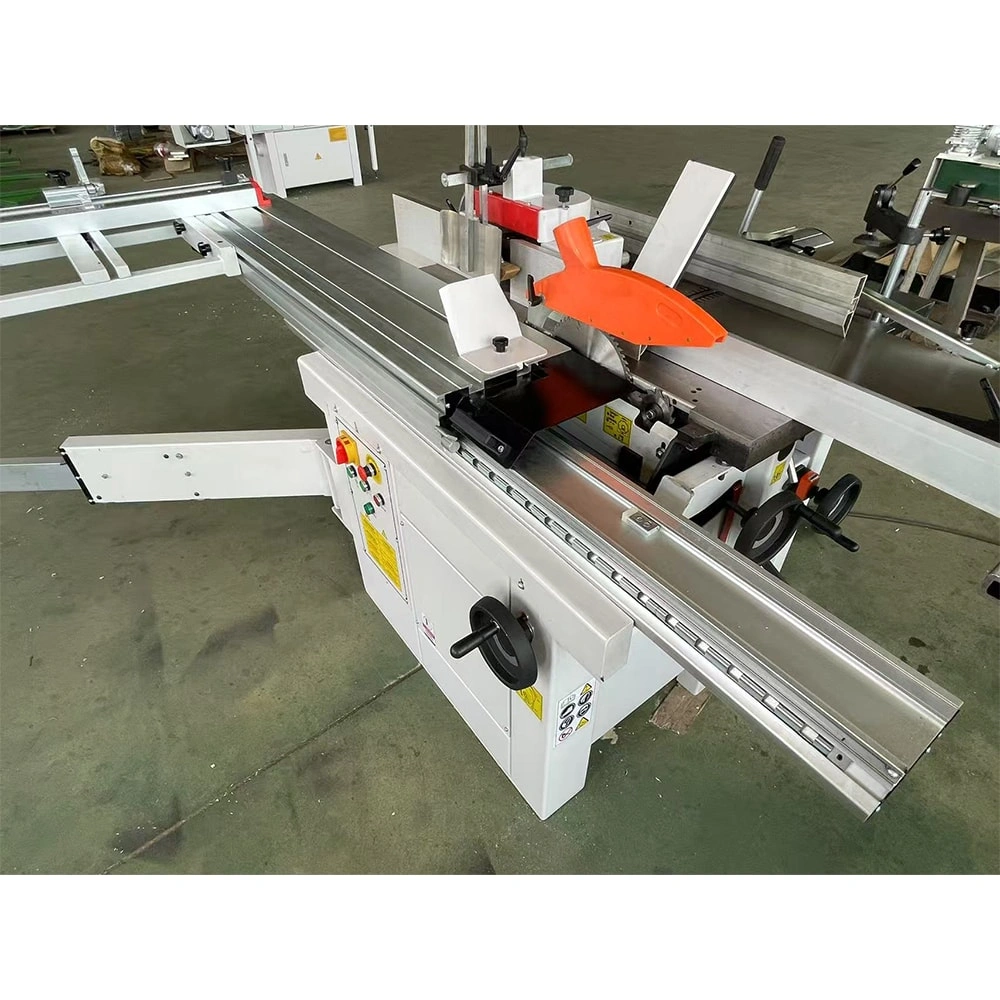

This combination machine is with 5 functions: sliding saw, surface planer, thickness planer, vertical milling and mortising.

The combination machine is equipped with a powerful motor to power all functions. Its unique structural design makes the machine itself more robust.

For factories with limited space, the floor space occupied by the combination machine is the greatest advantage. One machine can achieve multiple functions. All processing is completed on the basic platform of the same machine, with a uniform reference.
