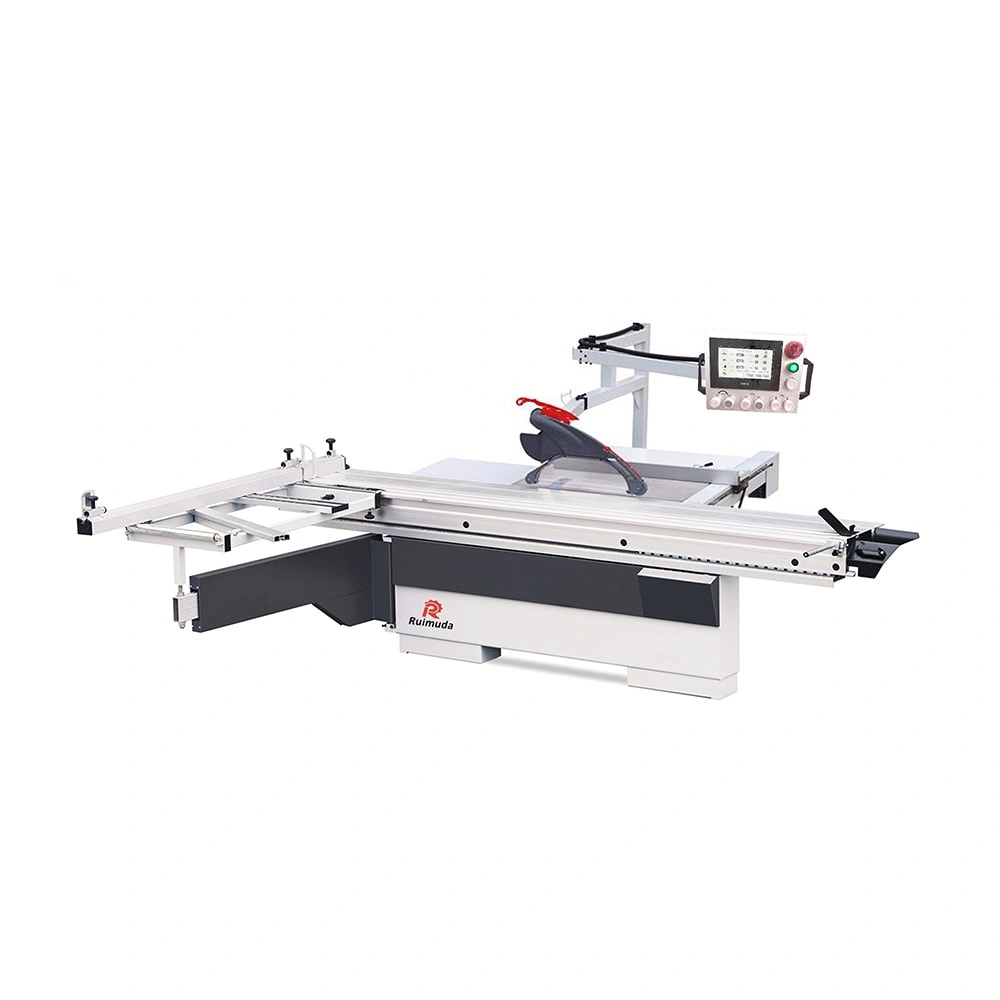

CNC Sliding Table Saw

CNC Sliding Table Saw

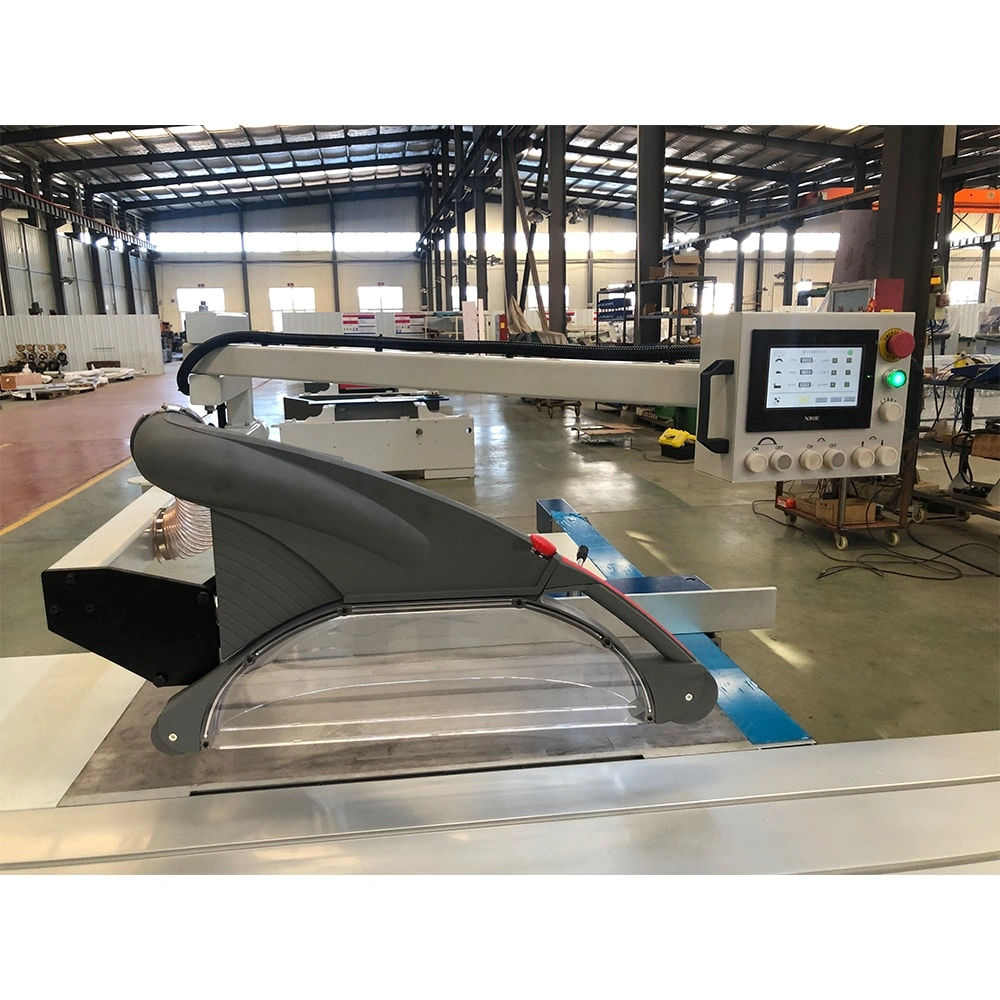

The CNC sliding table saw is equipped with a touch screen control system, and the operator can complete mechanical programming and automatic operation by inputting data through the touch screen.

Inquiry Contact

Technical parameters

Model	F45-320EA	F45-380EA
Dimensions of sliding table	3200*430mm	3800*430mm
Max sawing thickness	90mm	90mm
Power of main saw spindle	5.5kw	5.5kw
Rotary speed of main saw spindle	4400/5600r/min	4400/5600r/min
Diameter of main saw	350mm	350mm
Diameter of main saw spindle	30mm	30mm
Power of grooving saw	0.75kw	0.75kw
Rotary speed of grooving saw	8500r/min	8500r/min
Diameter of grooving saw	120mm	120mm
Diameter of grooving saw spindle	22mm	22mm
Tilting saw blade	45°	45°

Video

Characteristic

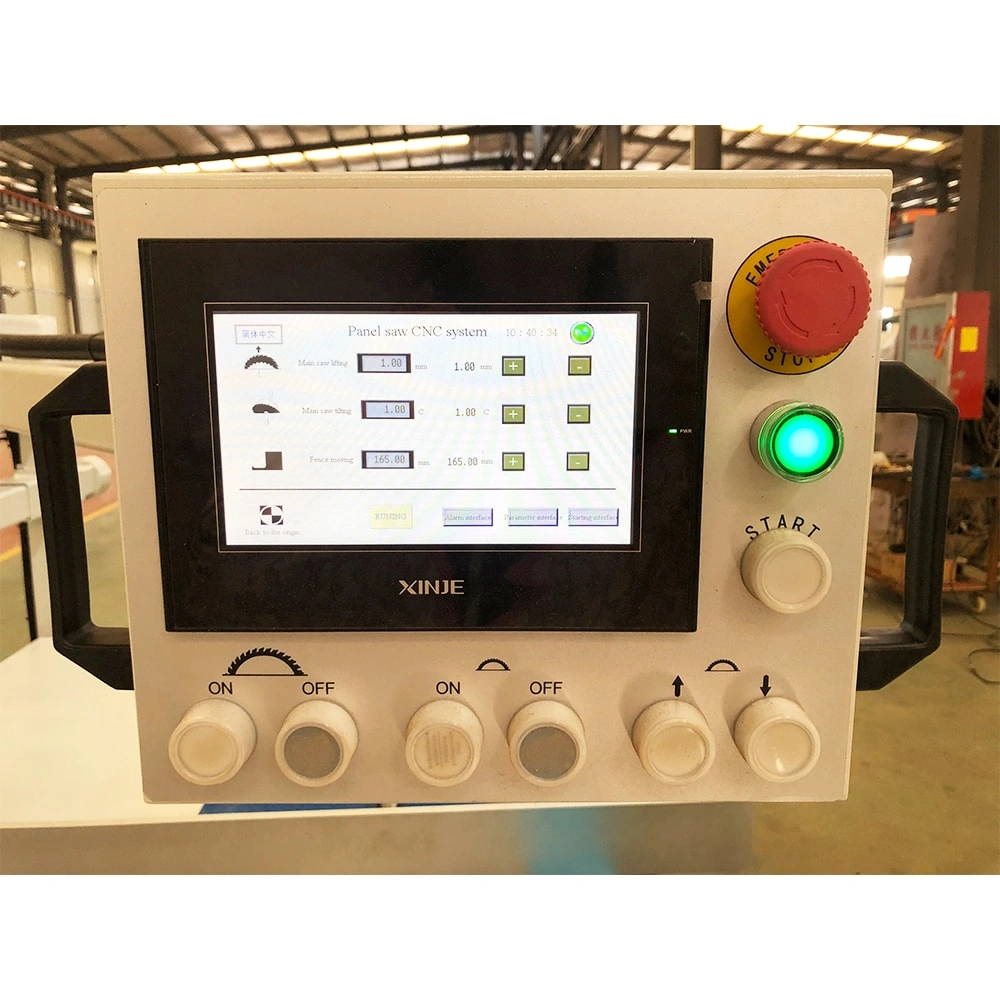

The CNC sliding table saw is equipped with a touch screen control system, and the operator can complete mechanical programming and automatic operation by inputting data through the touch screen.

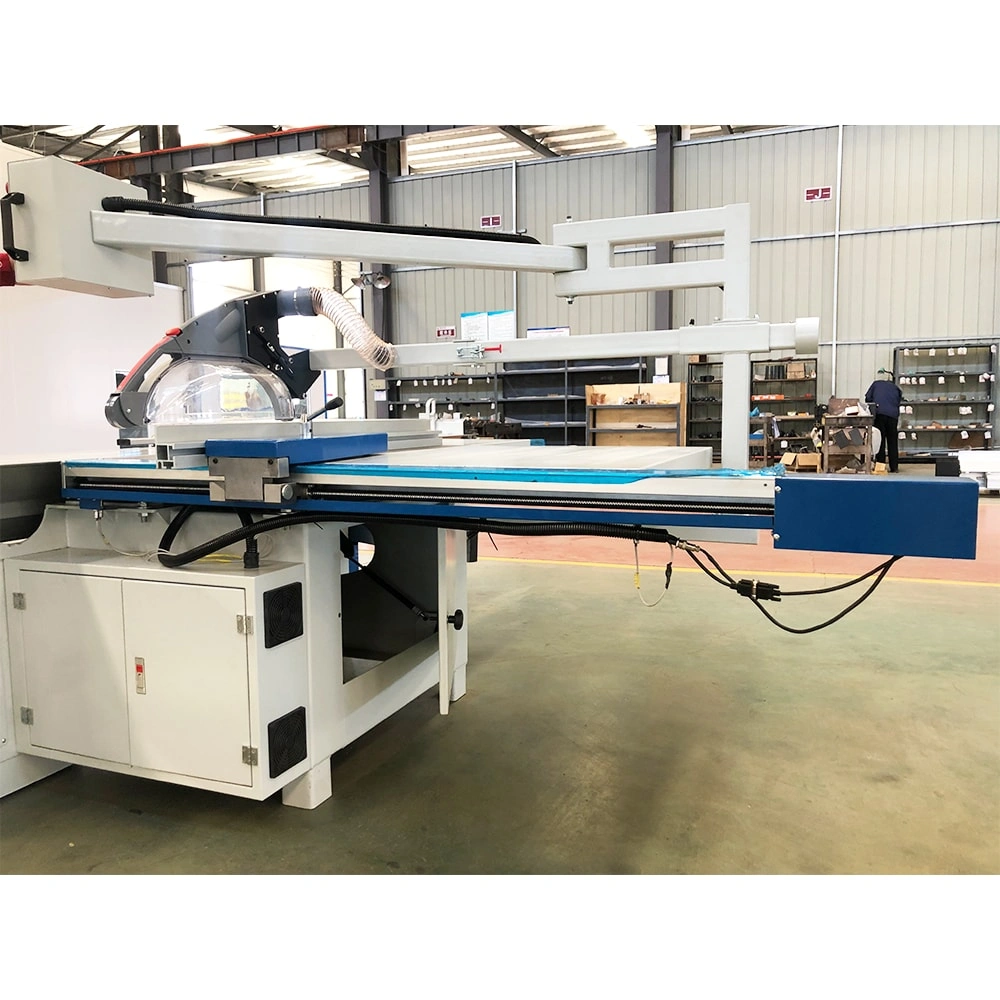

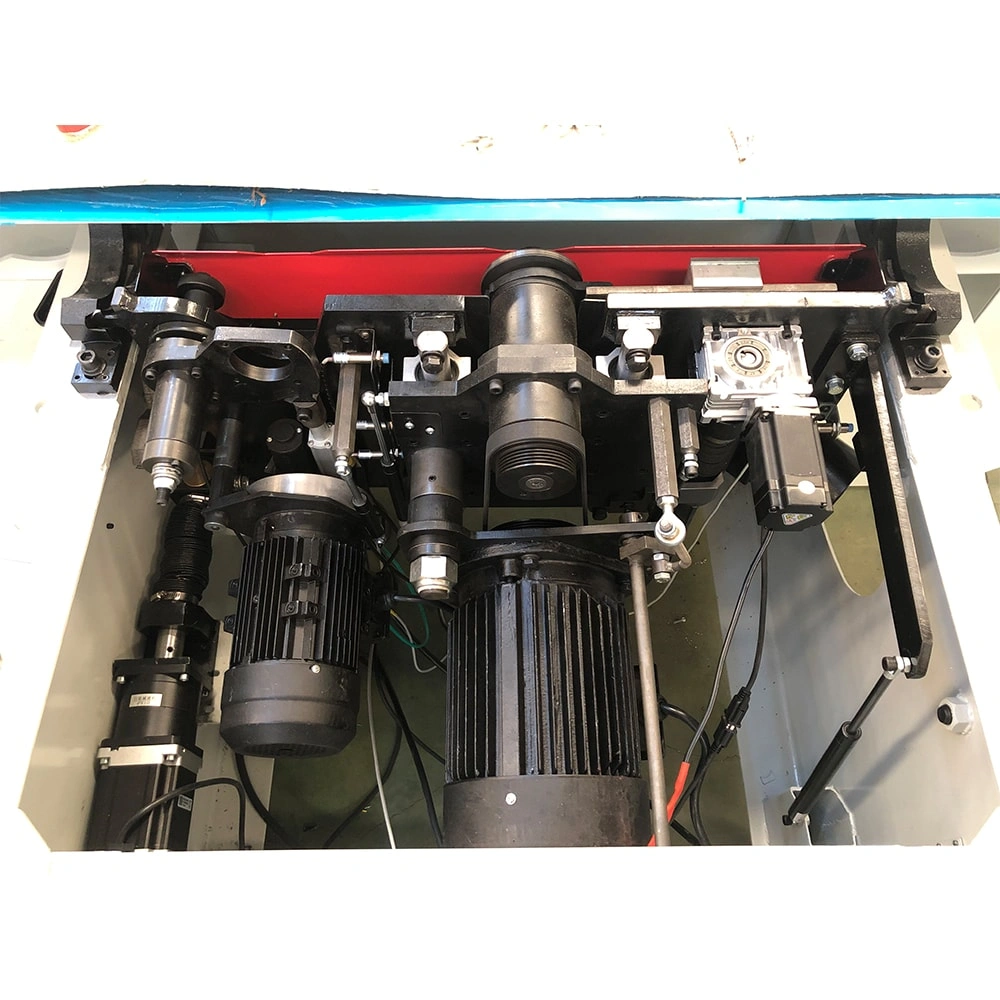

The rip fence movement is driven by servo motor, the max. stroke is 1300mm.The servo motor with encoder, which can achieve high cutting precision and repeating positioning. Meanwhile, no need back origin operation after starting the machine.The body structure of the CNC sliding table saw adopts high-strength extruded aluminum alloy; movable table is high in strength and won’t bend. Aluminum alloy material for square tube of rotary arm.
