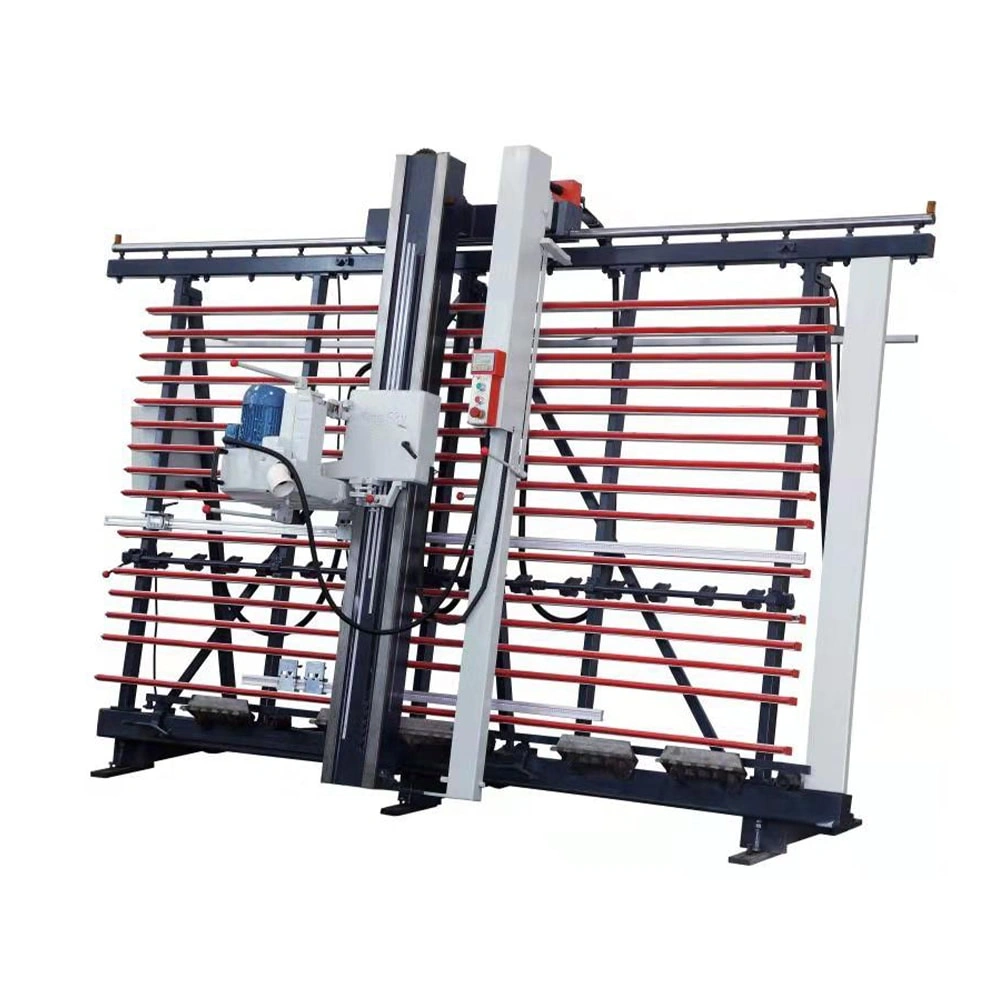

Automatic Vertical Panel Saw

Automatic Vertical Panel Saw

The automatic vertical panel saw can continuously cut on boards based on the input data. This equipment is widely used in wood processing and metal fields and can replace traditional manual vertical panel saws.

Inquiry Contact

Technical parameters

Model	RM6125TZG
Length of grooving/cutting	2500mm
Height of grooving/cutting	1300mm
Grooving/cutting thickness	0-90mm
Main Saw	Φ300XΦ30X3.2X120T
Grooving saw	Φ80XΦ22X2.8X20T
Power of Main saw	3KW
Power of grooving saw	0.75KW
Rotary speed of saw spindle	6000RPM adjustable

Characteristic

The Automatic Vertical Panel Saw can automatically operate based on input data, ensuring efficiency and accuracy. Equipped with a dual blade vertical saw, it is the perfect choice for heavy-duty applications, and the vertical sliding table saw provides versatility for various materials.

The Automatic Vertical Panel Saw has a large saw blade and a small saw blade. The function of the small saw blade is to cut grooves and avoid edge breakage of the board.

The saw head of the Automatic Vertical Panel Saw is equipped with a servo motor, and the servo system can work precisely based on the data input by the operator.
