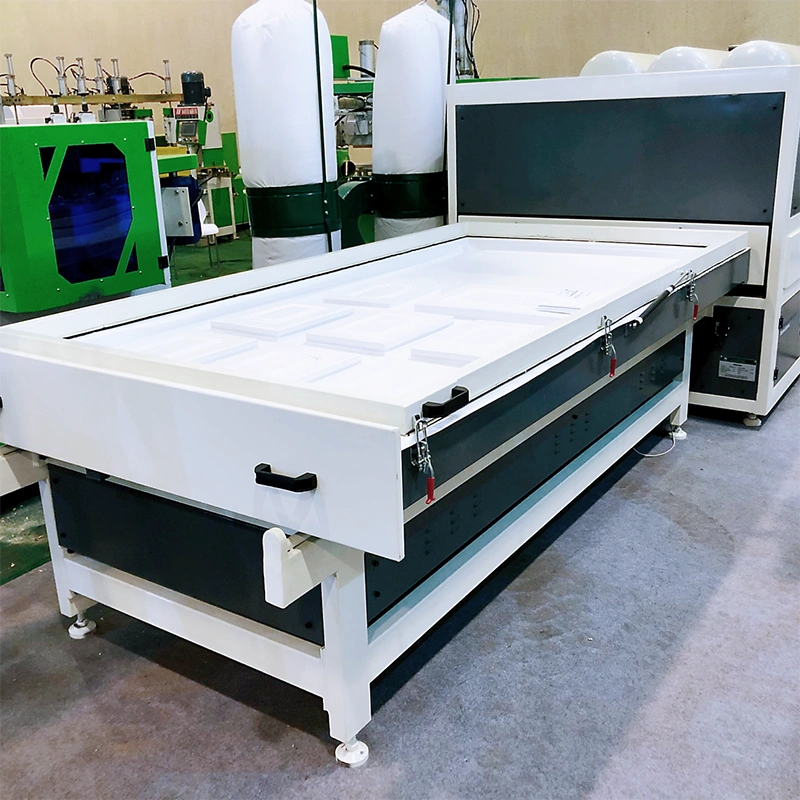

The Vacuum Membrane Press is a device that uses an electric heating and vacuum pumping system to adsorb thermoplastic sheets or wood veneers onto workpieces. This machine is mainly composed of a heating system and a vacuum pump.
Usually, multiple independent far-infrared heating tubes are used to divide the entire heating plate into several independent heating areas with controllable temperatures in both the longitudinal and transverse directions.The vacuum pump of the Vacuum Membrane Press is particularly important. Start the vacuum pump to quickly remove the air between the sheet and the mold. Under the effect of atmospheric pressure, the softened sheet is tightly pressed against the surface of the mold, perfectly replicating every detail of the mold.
The working principle of Vacuum Membrane Press is：
1. After covering the workpiece with the film, the infrared lamp tube inside the machine will heat the film, evenly heating it to a soft and malleable state.
2. After closing the machine cover, a closed space will be formed inside the machine. The vacuum pump will draw out the air in the cabin, creating a negative pressure. The film will adhere tightly to the workpiece.

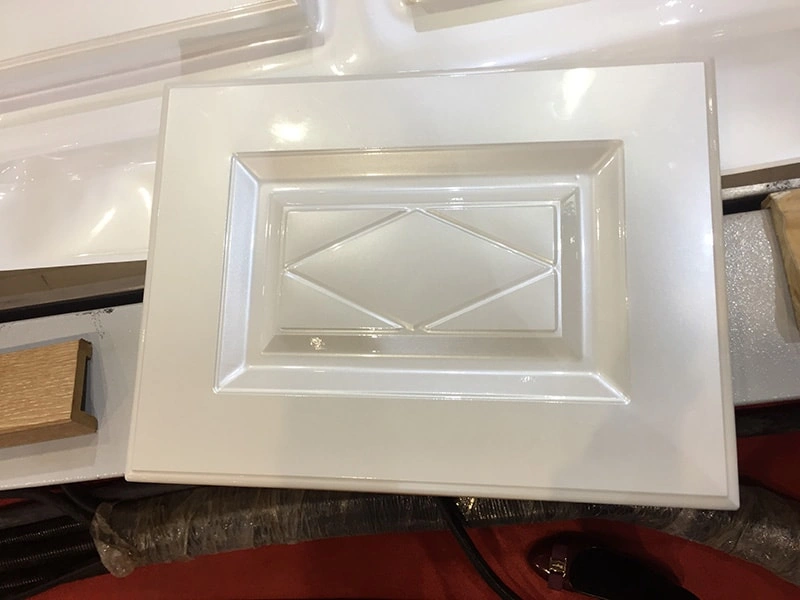

3. When the heating system is turned off, the film naturally cools and sets on the surface of the workpiece, forming a firm coating layer that perfectly adheres to the contour of the workpiece.
Our company's Vacuum Membrane Press come in two models: single-station and double-station. The double-station is equipped with two workbenches. When one station is laminating, the other can handle loading and unloading, significantly enhancing production efficiency.
The tools store is a device on a CNC router used for storing and automatically changing tools. It is like a "tool warehouse", automatically removing the current tool from the spindle according to the instructions of the processing program and installing the tools required for the next process.
The 3D scanning spray painting machine, by integrating 3D vision scanning, intelligent path planning and precise spraying, is suitable for door panels with complex shape, significantly enhancing the automation level and quality of door panel spraying.
The greatest advantage of the CNC vertical panel saw lies in its ability to fix large sheets of board almost vertically on a sturdy frame. The saw blade rotates at high speed and moves horizontally to complete the cutting of the upright board.
The Veneer Wide Belt Sander is a device designed for large-scale, high-efficiency, and high-precision surface treatment of veneer. It can sand veneer as thin as 0.1mm.
The stability of the CNC Bean Saw is the key to ensuring its long-term efficient and precise operation. Use materials with sufficient strength and rigidity, and ensure the stability of the foundation through reasonable welding and reinforcement processes.
PUR Laminating Line is used to attach PVC, PP, PET film, decorative paper, thin wood veneer and other materials onto flat base material.The entire line is fully automated and connected, with a fast production rhythm and huge production capacity, which greatly reduces labor costs and labor intensity.
A multi-rip saw is a machine that can cut wood into multiple pre-adjusted widths at one time and is a highly efficient machine.The safety of the equipment is the most crucial aspect. This type of equipment combines high speed, high power and sharp cutting tools. Any negligence may cause serious accidents.
The Vacuum Membrane Press is a device that uses an electric heating and vacuum pumping system to adsorb thermoplastic sheets or wood veneers onto workpieces. This machine is mainly composed of a heating system and a vacuum pump.
The Edge Bander is one of the core equipment in the panel furniture production line. A fully automatic edge banding machine usually integrates the following specific functions: pre-milling, gluing, end cutting, rough trimming, fine trimming, corner trimming, edge scraping, and polishing.
The RMQ series independently developed by our company is specially designed for the Lacquered Panel Sander,The usual machine structure is R-P, which R is a rubber roller and P is a sanding pad.
