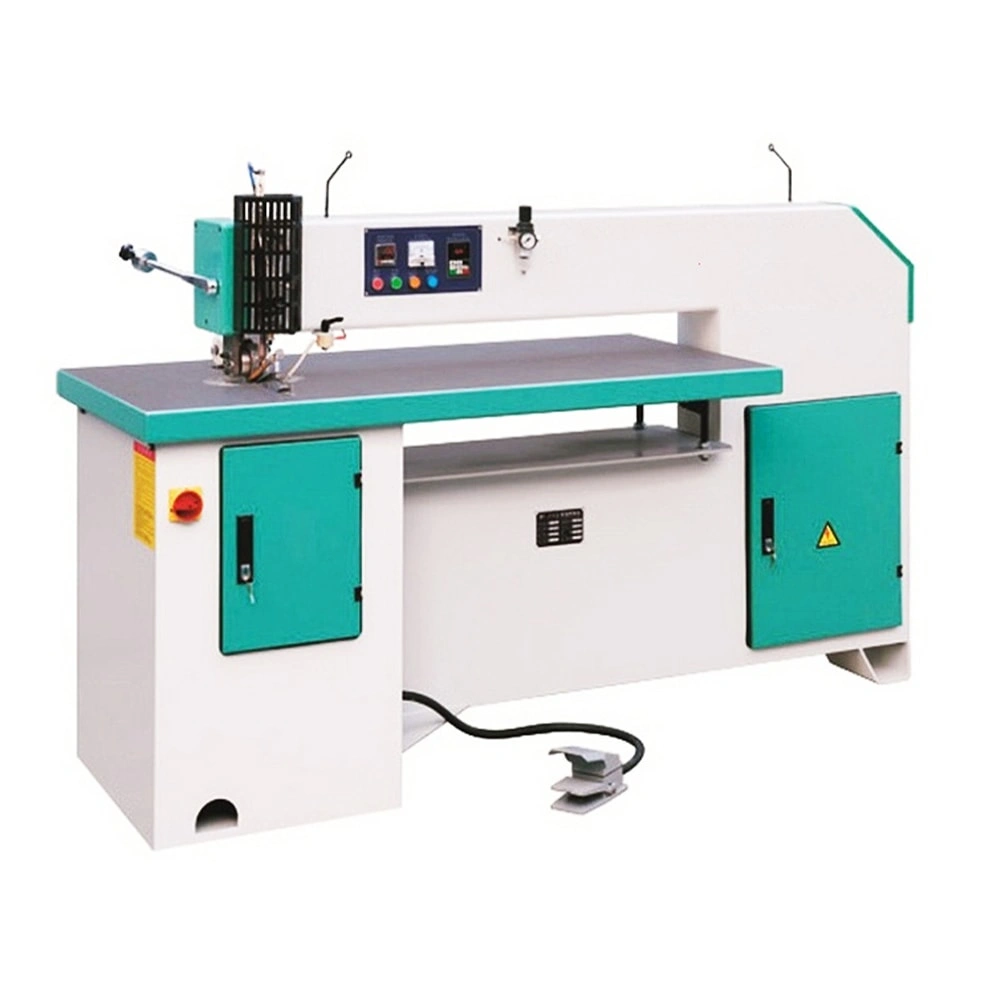

Veneer Sewing Machine

Veneer Sewing Machine

The veneer sewing machine uses glue thread to sewing two pieces of wood veneer into one piece. The glue thread formed after sewing is in the shape of a "Z" The veneer sewing machine adopts variable frequency speed regulation, and the splicing speed is adjustable.

Inquiry Contact

Technical parameters

Model	MH1109	MH1114
splicing width	900mm	1350mm
splicing thickness	0.4-2mm	0.5-3mm
splicing speed	15m/min	15-30m/min
Working table height	900mm	900mm
Feeding power	0.18kw	0.75kw

Video

Characteristic

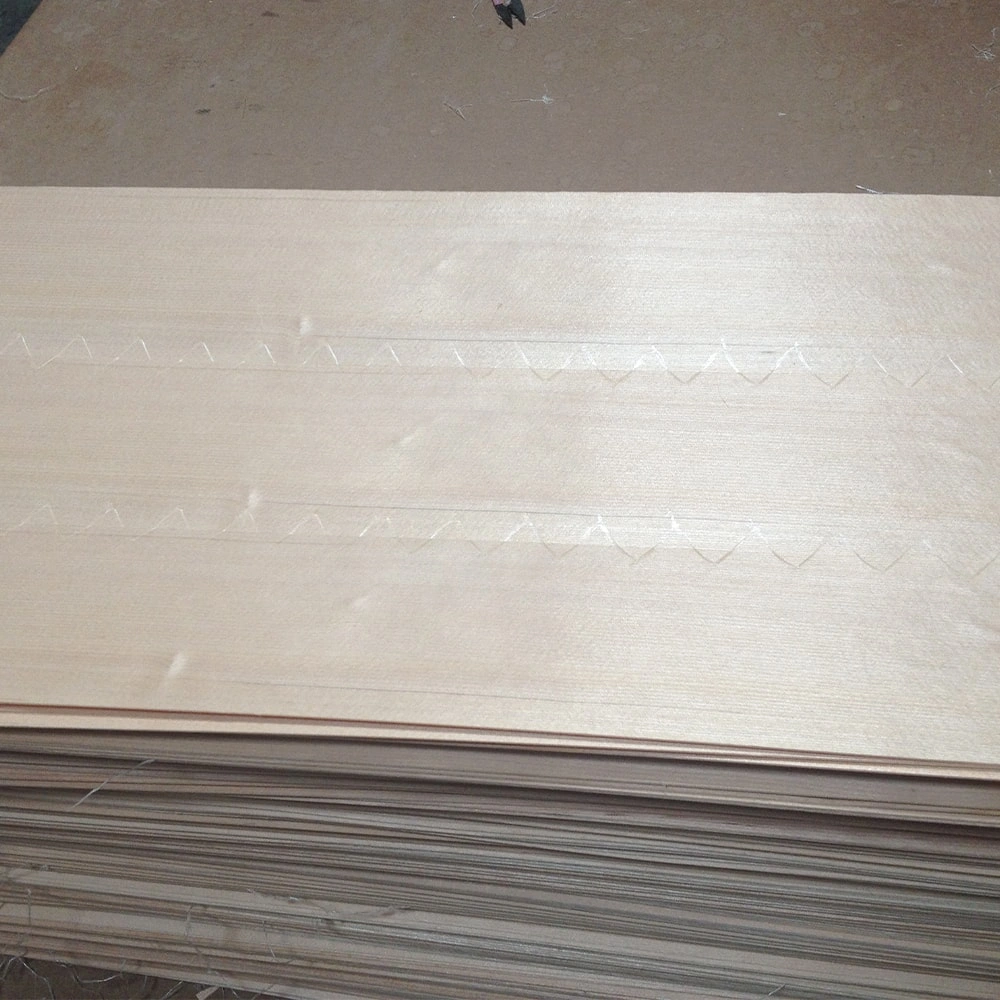

The veneer sewing machine uses glue thread to sewing two pieces of wood veneer into one piece. The glue thread formed after sewing is in the shape of a "Z"

The veneer sewing machine adopts variable frequency speed regulation, and the splicing speed is adjustable.

After the wood veneer is sewing together, it is very solid. Once the glue thread melts, it will be firmly fixed to the wood veneer,The maintenance cost of the veneer sewing machine is very low.

You may also be concerned about

The reasons for the deviation of the abrasive belt

The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Adjustment methods for abrasive belt deviatio

Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
Maintenance and repair of Wide Belt Sander

1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
Flow rate adjustment of the spray gun

The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Cleaning after using the spray painting machine

Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
