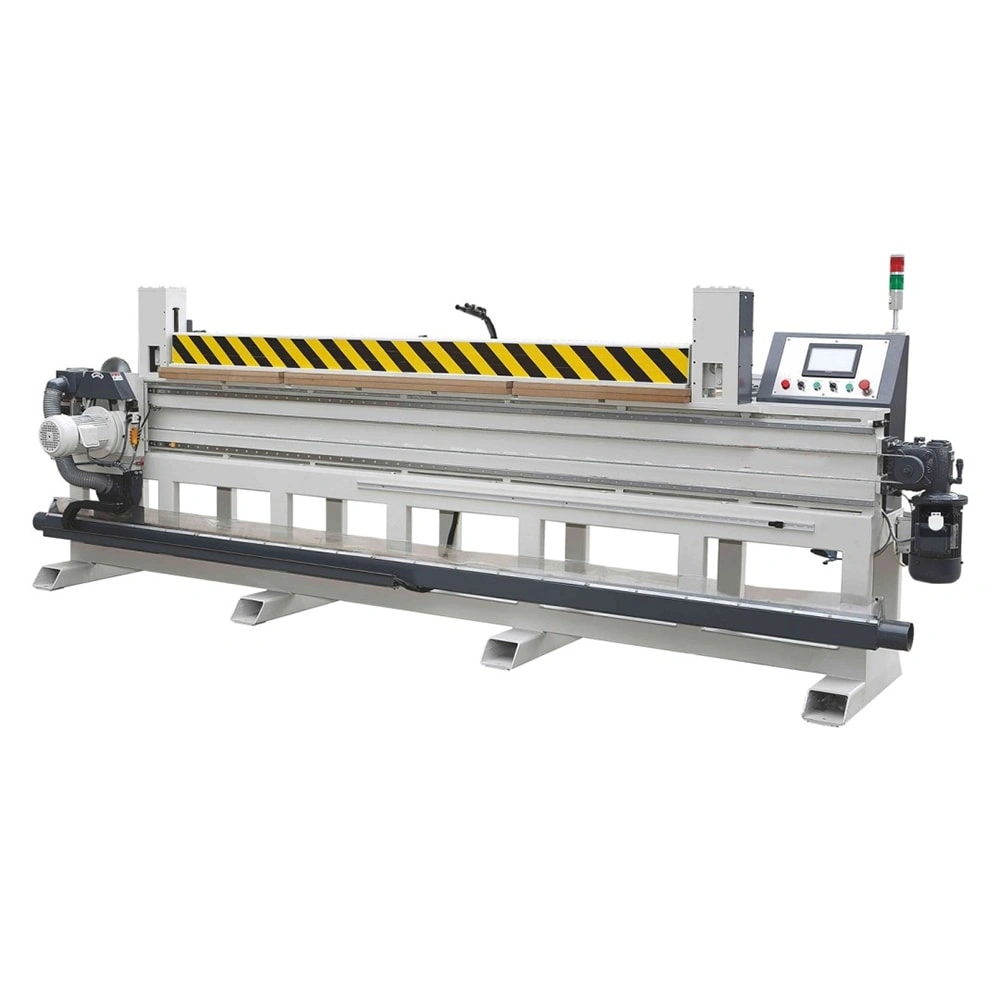

The veneer saws can be used for edge sealing cutting of veneers, as well as for precise and cutting of wood, particleboard, acrylic, non-ferrous metals and laminates. The veneer saws has a saw blade and a milling cutter. The saw blade is used to cut the workpiece, and the milling cutter is used to grind the edges of the workpiece.

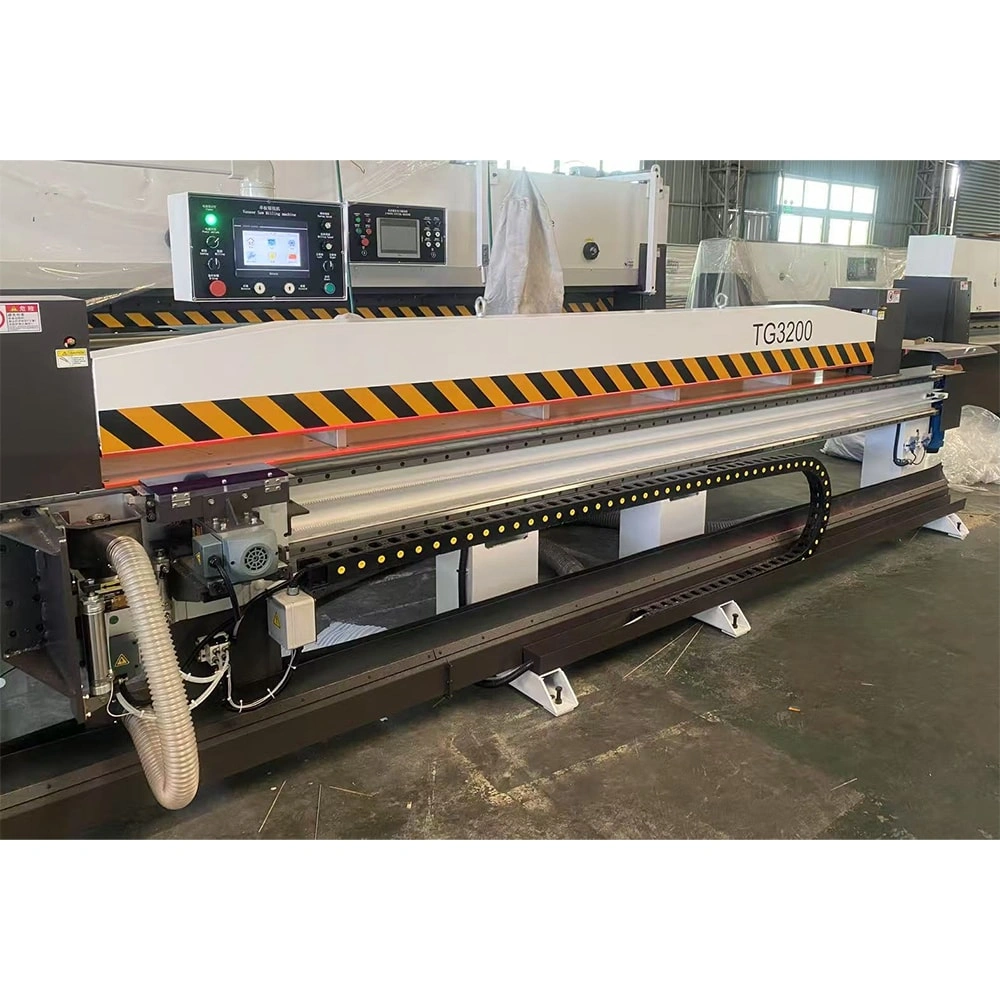

| Model | GT3200 |
|---|---|
| Maximum milling length | 3200mm |
| Maximum milling width | 680mm |
| Maximum milling thickness | 50mm |
| Minimum sawing thickness | 5 mm |
| Saw shaft power | 2.2kw |
| Saw blade size | Thickness 255mm* Thickness 3 mm* inner hole 25.4 mm |
| Cutter size | D125*L60*D35*6T |
| Milling Power | 1.5kw(9000 RPM) |
The veneer saws can be used for edge sealing cutting of veneers, as well as for precise and cutting of wood, particleboard, acrylic, non-ferrous metals and laminates.

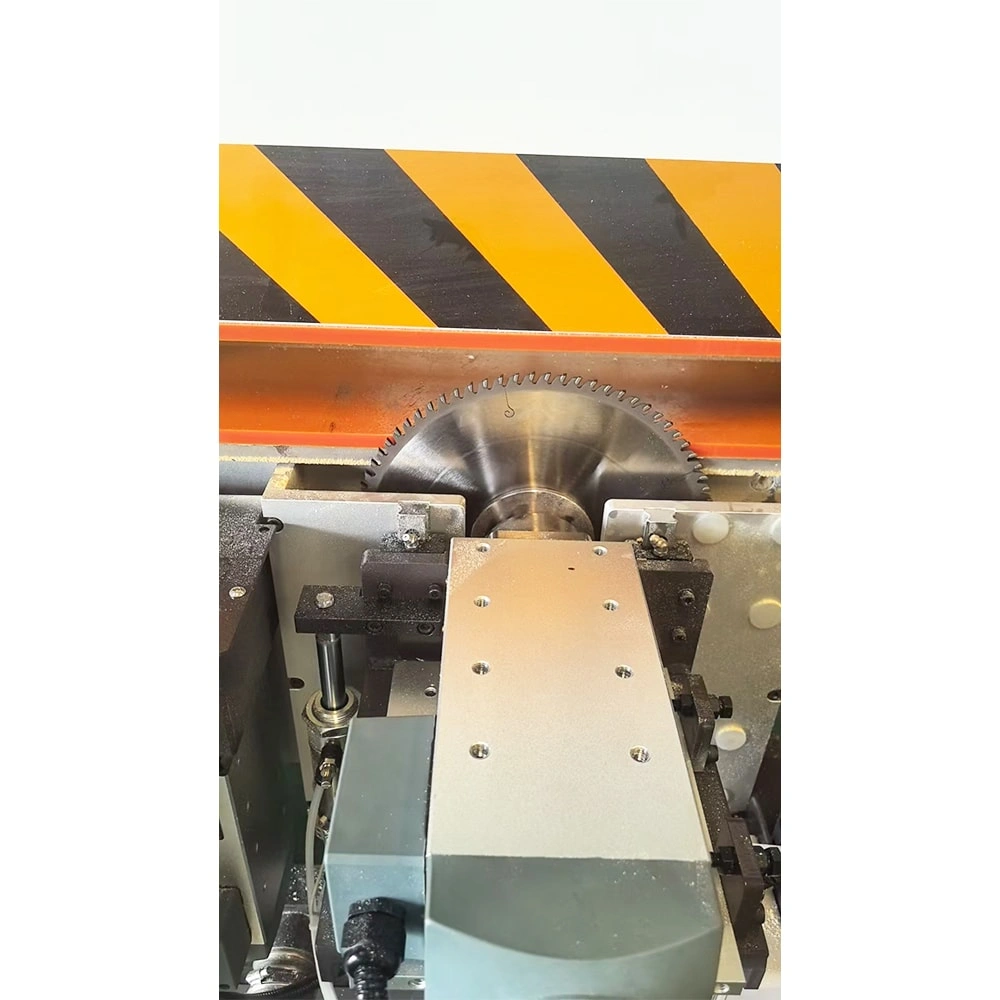

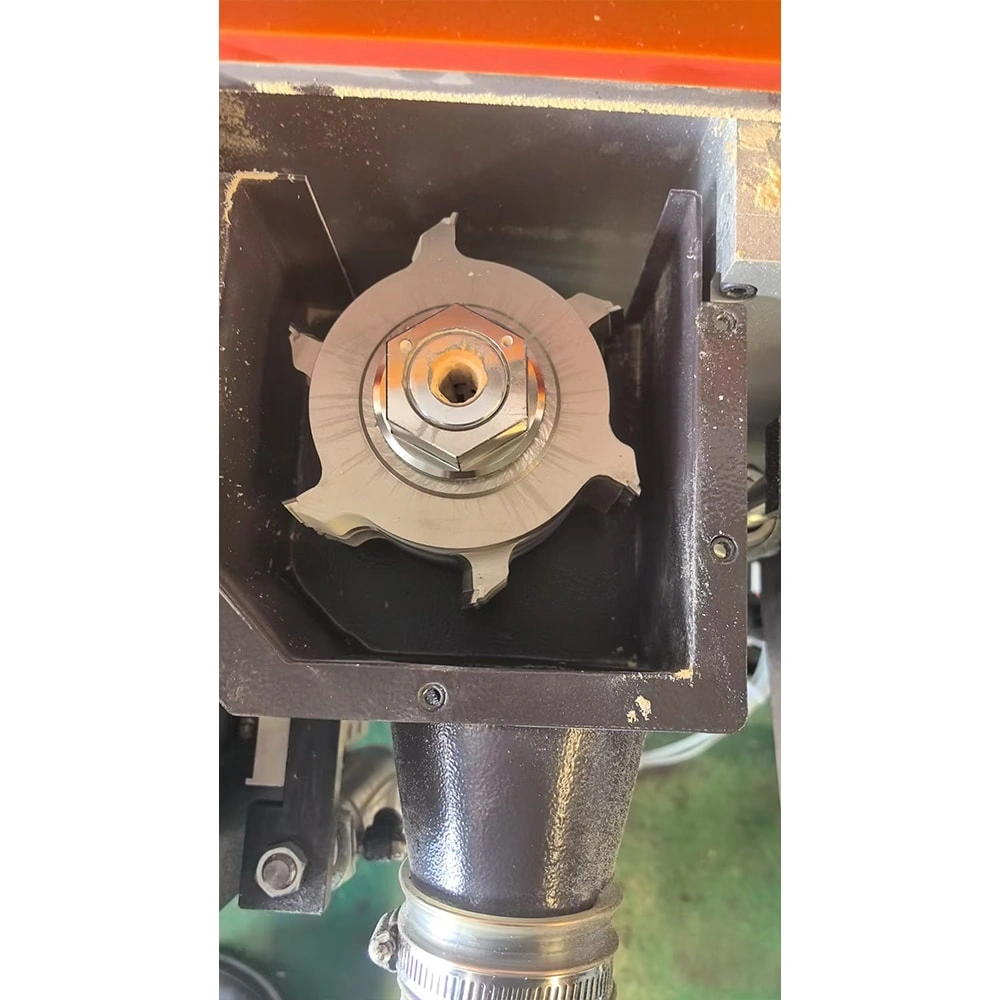

The veneer saws has a saw blade and a milling cutter. The saw blade is used to cut the workpiece, and the milling cutter is used to grind the edges of the workpiece.
The veneer saws adopts pneumatic lifting and operates with special-shaped linear guides.
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
