| Model | RME368D |
|---|---|
| Edge thickness | 0.4-3mm |
| Work piece thickness | 10-55mm |
| Panel length | >120mm |
| Panel width | >55mm |
| Feeding speed | 18-22m/min |
| Working pressure | 0.6Mpa |
| Outline size | 5700x900x1700mm |
| Net Weight | 2100kg |

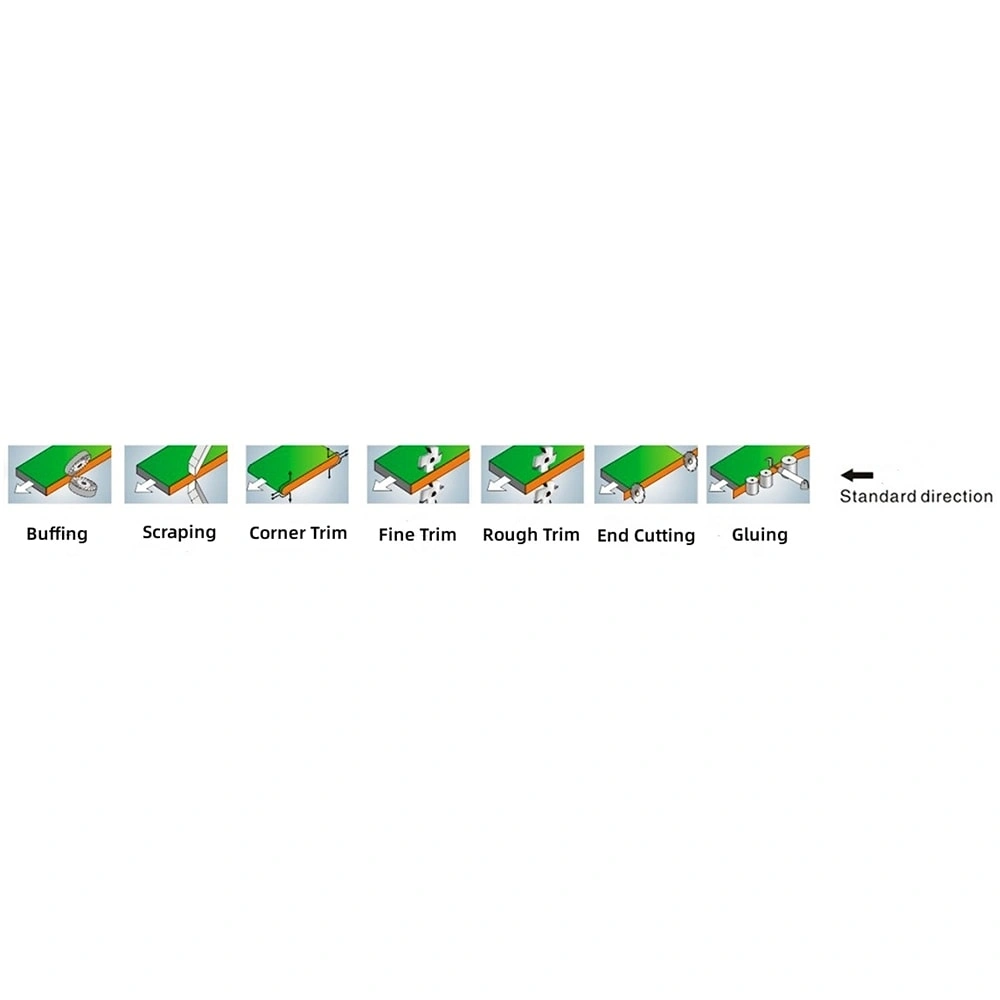

The RME368D is a 7-function edge banding machine,the functions are Gluing-End cutting-Rough trimming-Fine trimming-Corner Trim-Scrapping -Buffing.

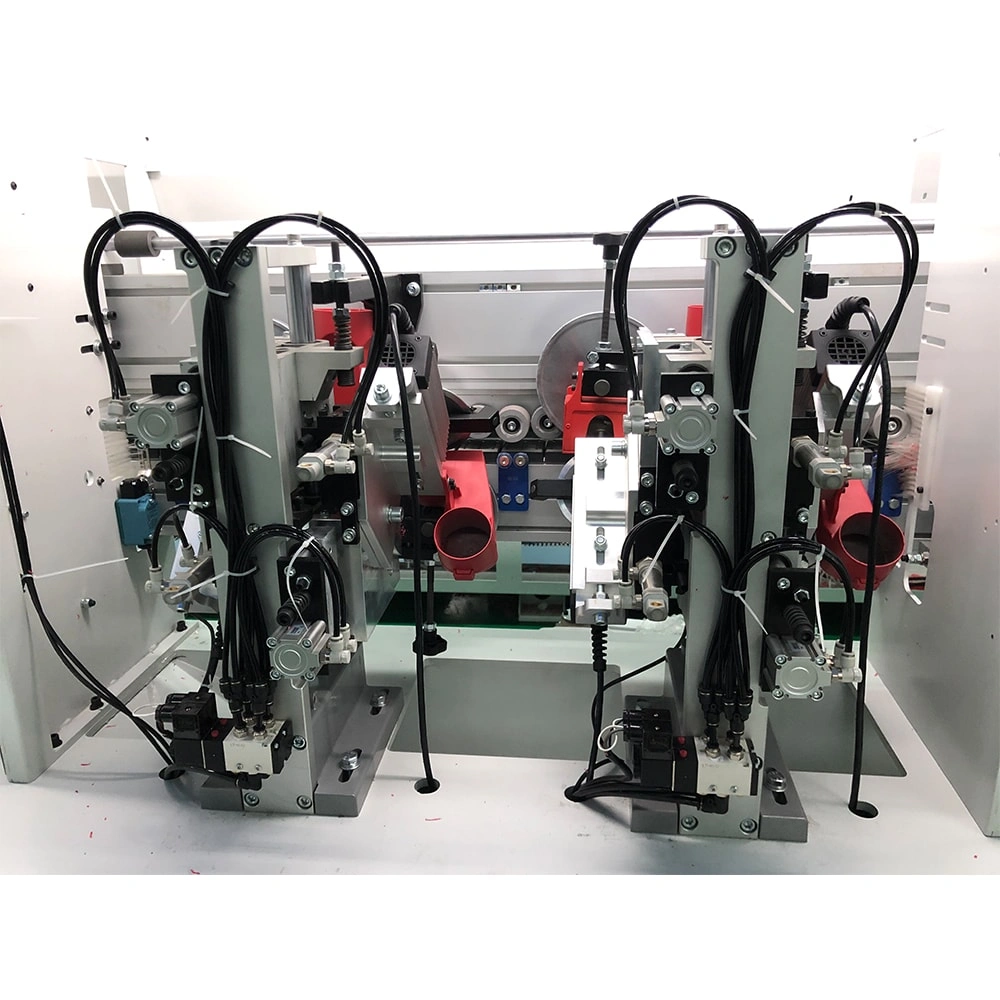

Edge banding machine equipped with Rollers Type Tape Pressing Unit. In order to achieve the stable band sealing, the machine adopts 6 rollers band pressing unit.
The automatic lubrication system automatically lubricates the linear guide rail on the end cutting unit of the edge banding machine, extending the service life of the structure.
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
