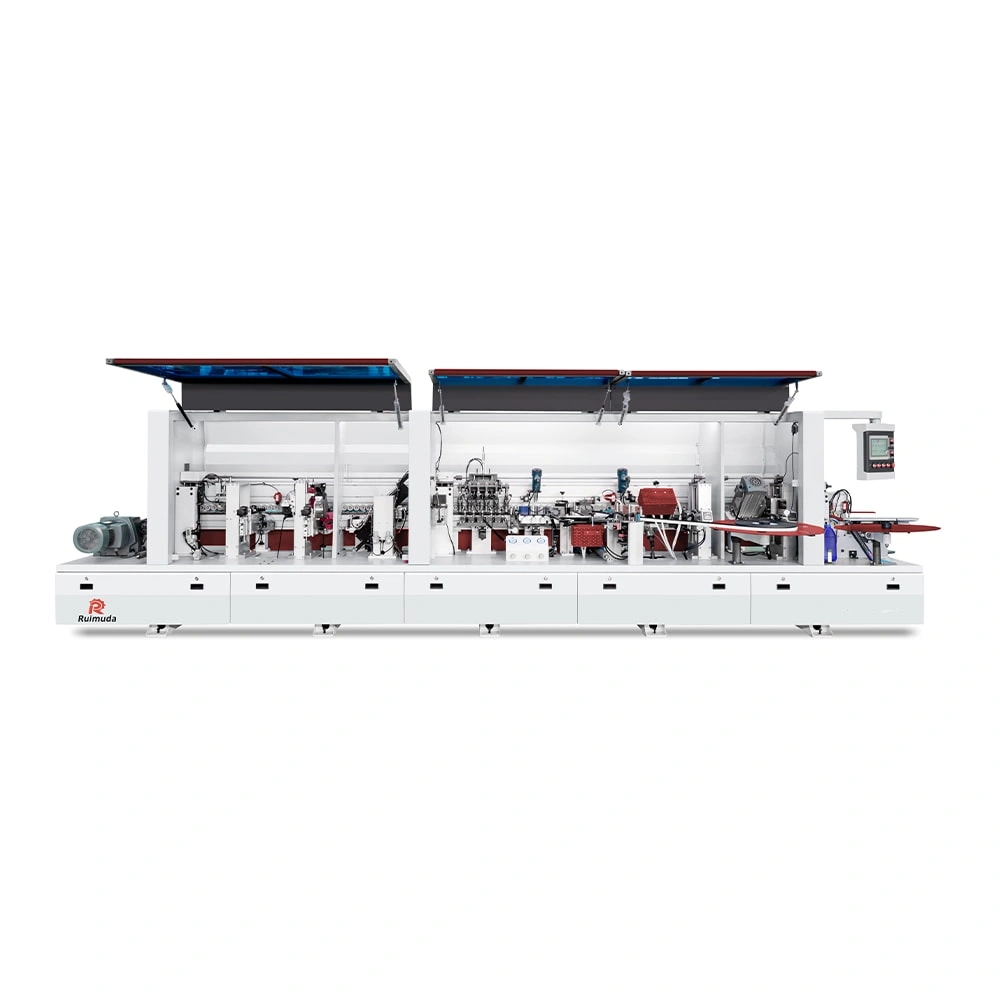

45°Bevel Edge Bander

45°Bevel Edge Bander

Bevel edge banding machine that meets a 45 degree Angle，Press beam conveying, stable pressure plate, no damage to the board, no dust pollution on the board surface, uniform and steady speed, ensuring the stability of processing and transmission.

Inquiry Contact

Technical parameters

Model	RME568
Tape thickness	0.8-1.2mm
Max width of tape	80mm
Work piece thickness	10-25mm
Min work piece width	60mm
Min work piece length	120mm
Feeding speed	18-22m/min
Working pressure	0.6Mpa

Characteristic

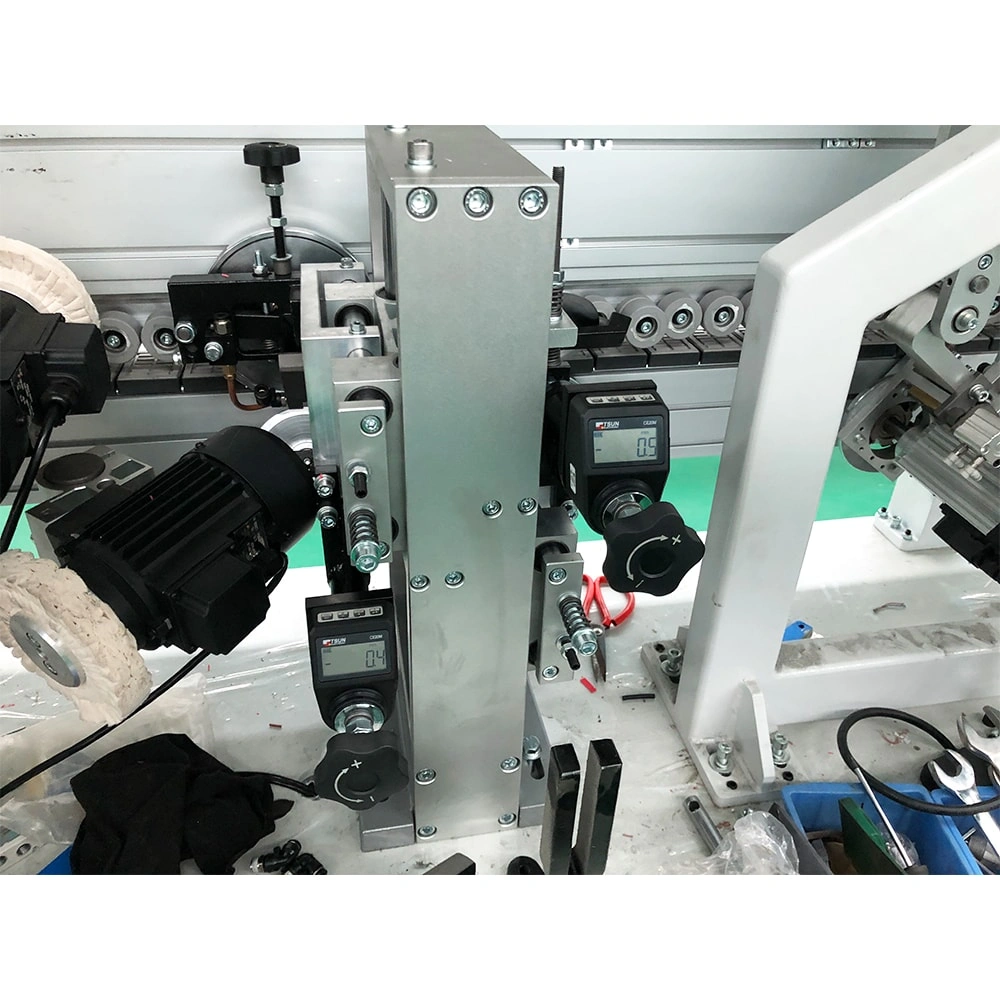

Through precise linear guide movement, it adopts a profiling automatic tracking and high-frequency high-speed motor rapid cutting structure to quickly cut off the edge banding, Bevel edge banding machine ensuring the smooth and flat surface of the board edge.
