PLC Veneer Guillotine

PLC Veneer Guillotine

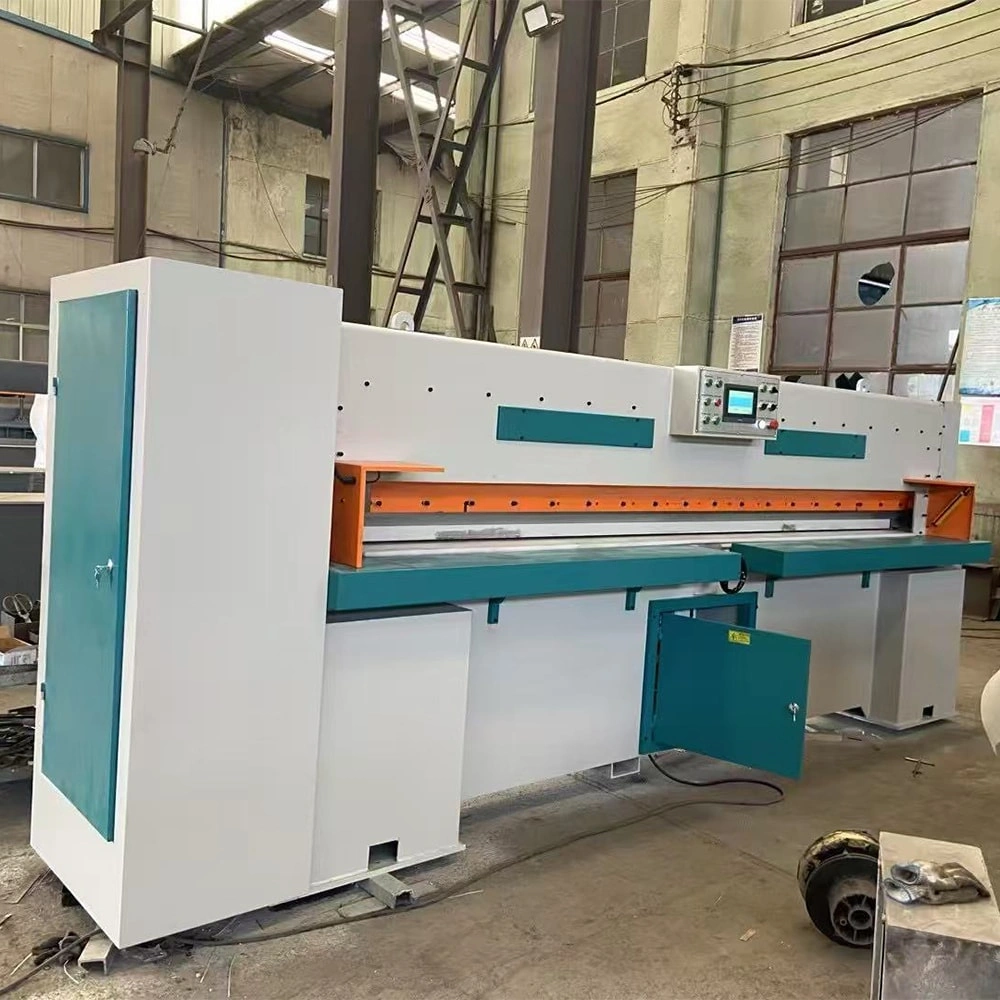

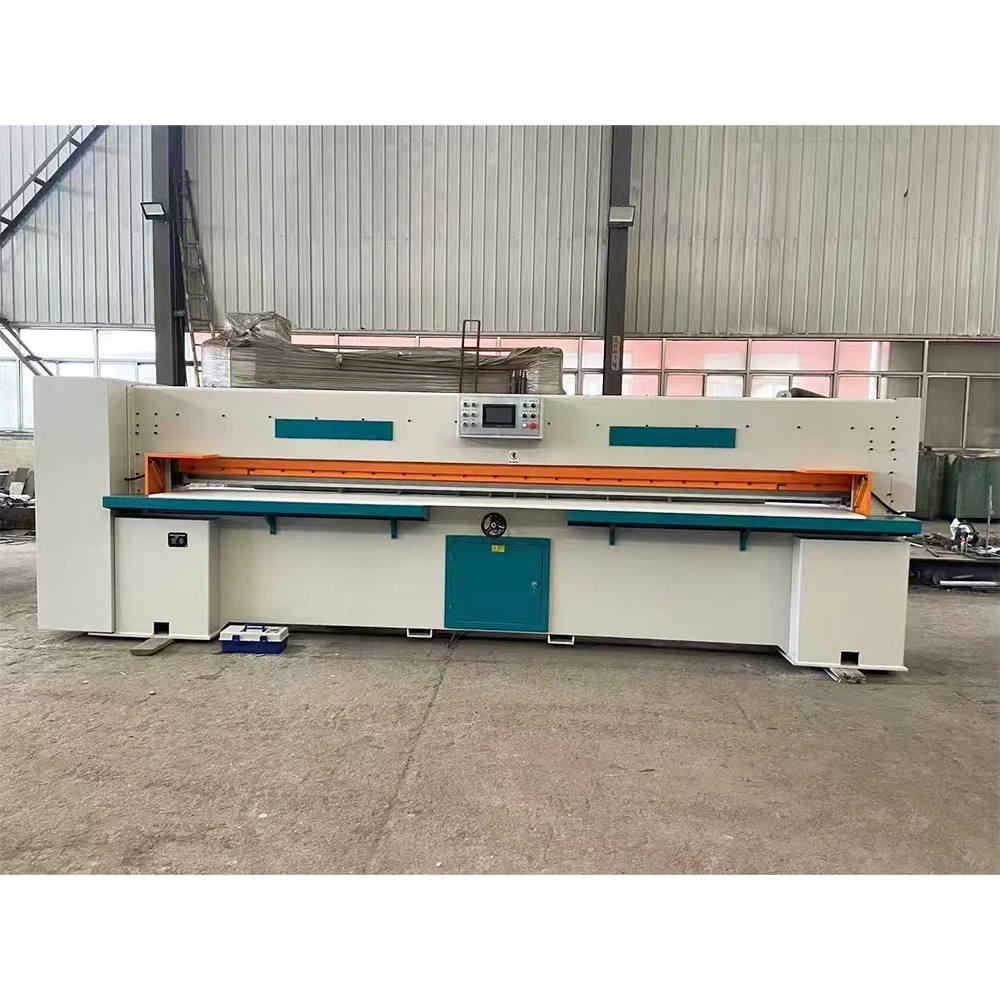

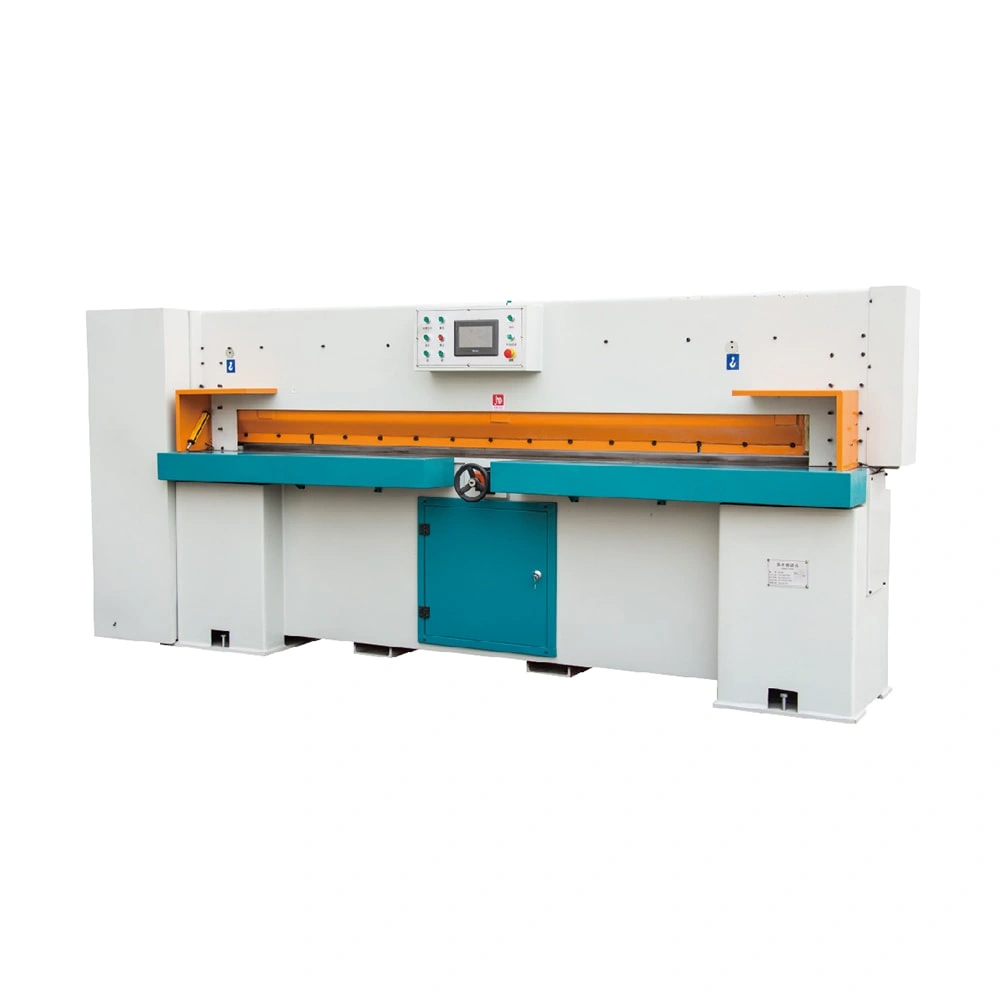

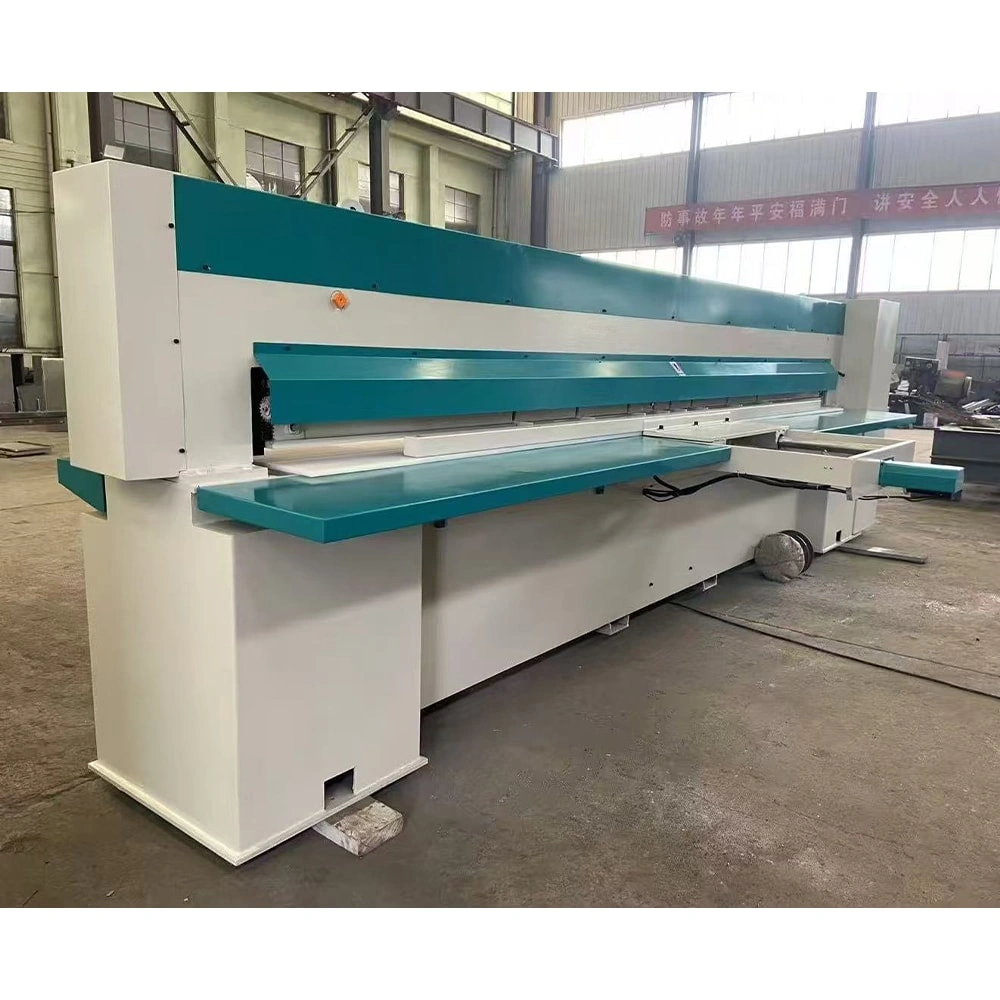

PLC veneer guillotine achieves rapid single-blade cutting and vertical movement of compression components through hydraulic motion. The central touch panel and PLC control of the human-machine interface provide a clear viewing Angle.

Inquiry Contact

Technical parameters

Model	RMQ260A	RMQ320A
Max cutting length	2600mm	3200mm
Max cutting thickness	40mm(wet veneer) 20mm(dry veneer)	40mm(wet veneer) 20mm(dry veneer)
Scissors size	2700x100x10	3200x100x10
Feed motor power	4.37kw	5.86kw
Net weight	2870kg	3120kg

Video

Characteristic

PLC veneer guillotine is equipped with our independently developed operating system, which precisely controls the cutting size.
