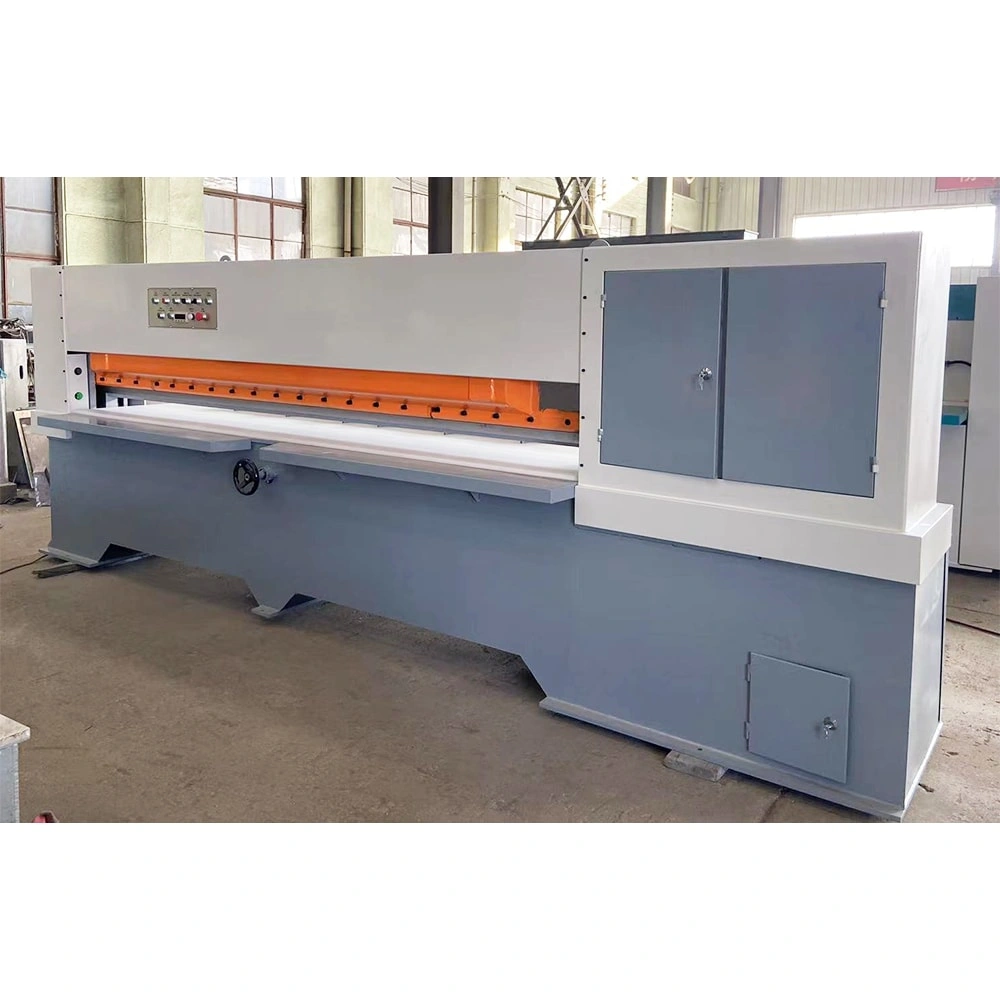

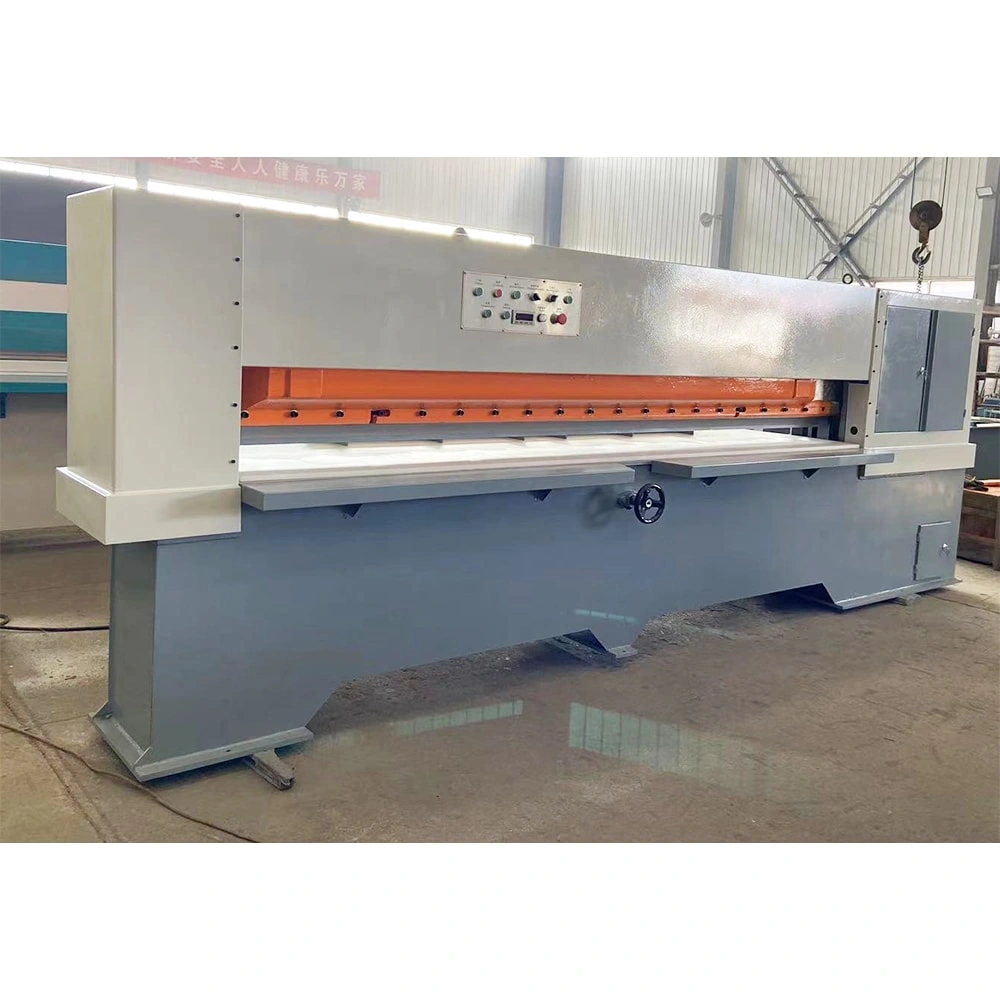

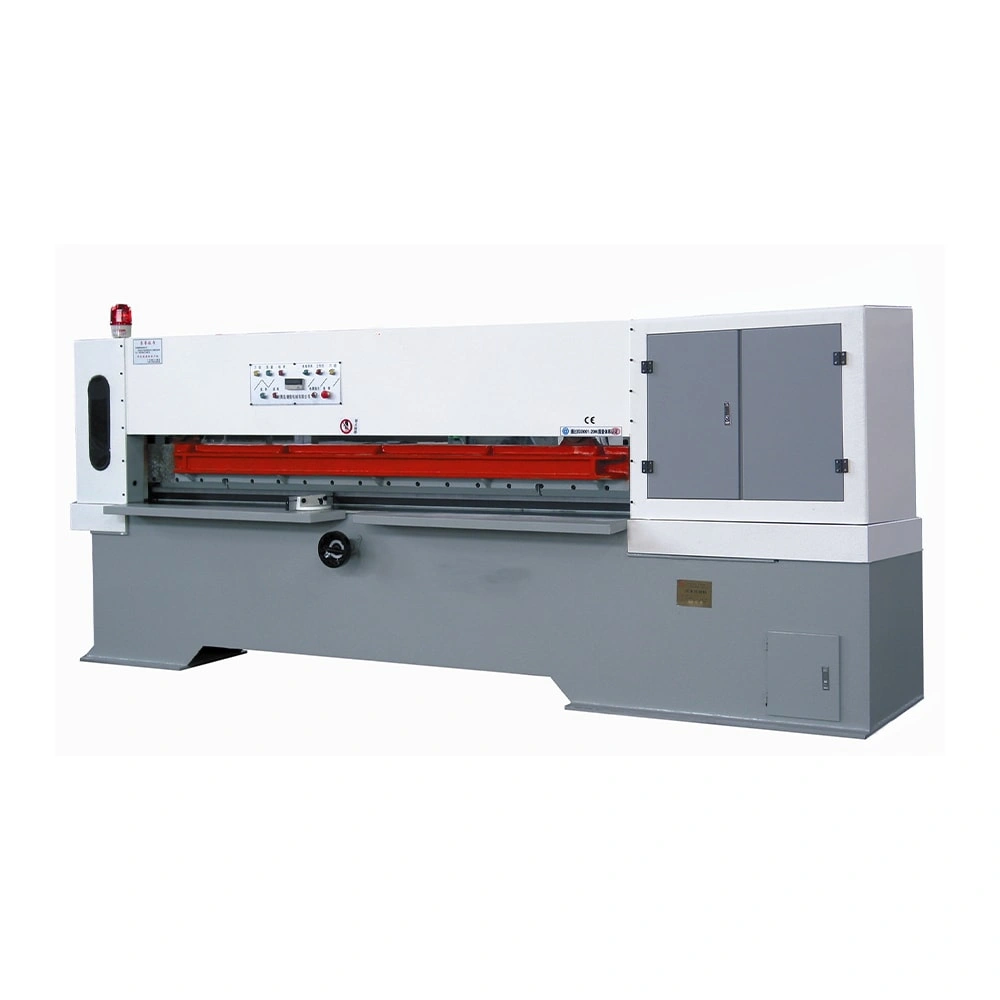

The hydraulic veneer guillotine adopts age-treated casting knife plates and pressure plates to enhance physical stability, and is equipped with a precision mechanical guide rail system to improve shearing accuracy. It can be selected to work in pneumatic or hydraulic mode according to production requirements.
| Model | RMQJ320A | RMQJ360A | |
|---|---|---|---|
| Max cutting length (mm ) | 3100 | 3600 | |
| Max cutting thickness (mm ) | wet cortices | 40 | 40 |
| dry cortices | 20 | 20 | |
| Scissors size (mm) | 3200×145×14 | 3600×145×14 | |
| Max opening between knife and working table | 100mm | 100mm | |
| Hydraulic cutting power | 5.5kw | 5.5kw | |
| Feed motor power( kw ) | 0.37kw | 0.37kw | |
| Hydraulic system pressure (Mpa) | 4-5 | 4-5 | |
The hydraulic veneer guillotine is mainly used for cutting veneers and multi-layer boards according to clients’ requirements.
The hydraulic veneer guillotine is equipped with photoelectric sensing. When the hand touches the light, the machine will automatically stop, ensuring the safety of the operator.
The hydraulic veneer guillotine uses age-treated casting knife plates and pressure plates to enhance physical stability, and is equipped with a precision mechanical guide rail system to improve shearing accuracy.
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
