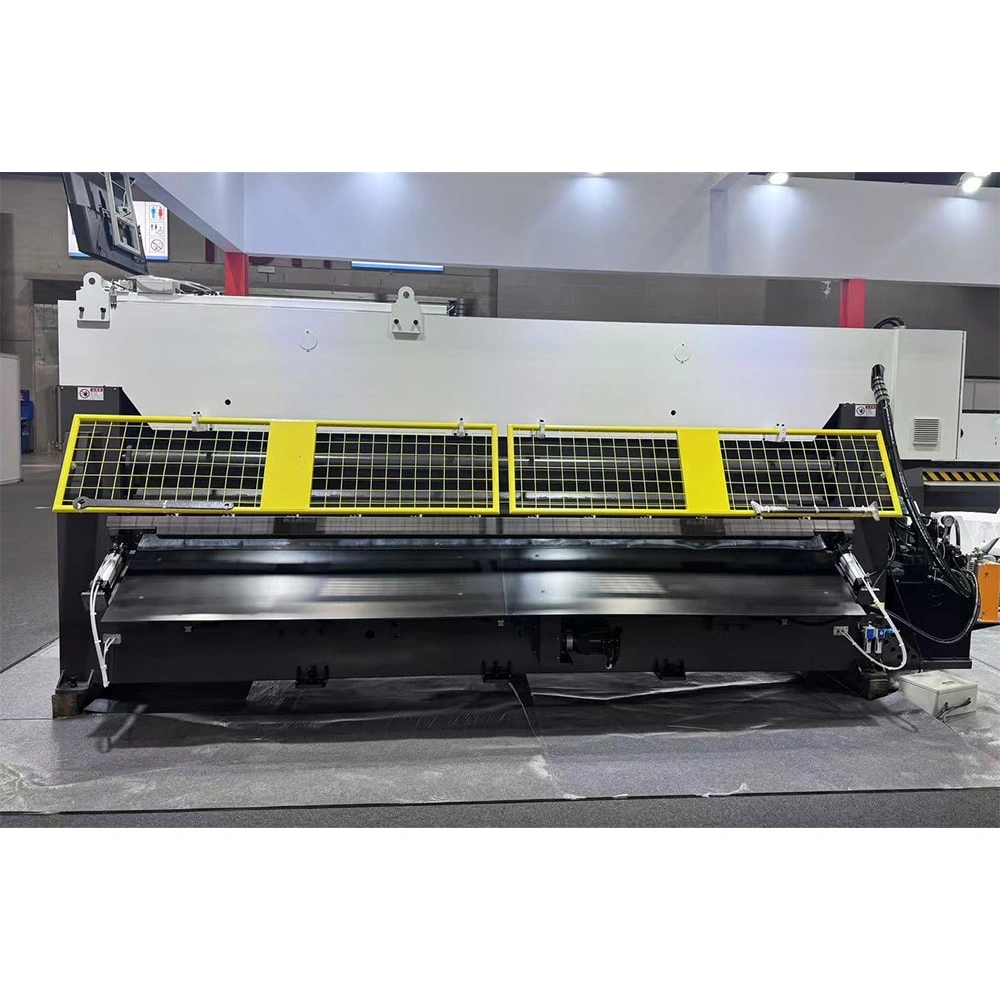

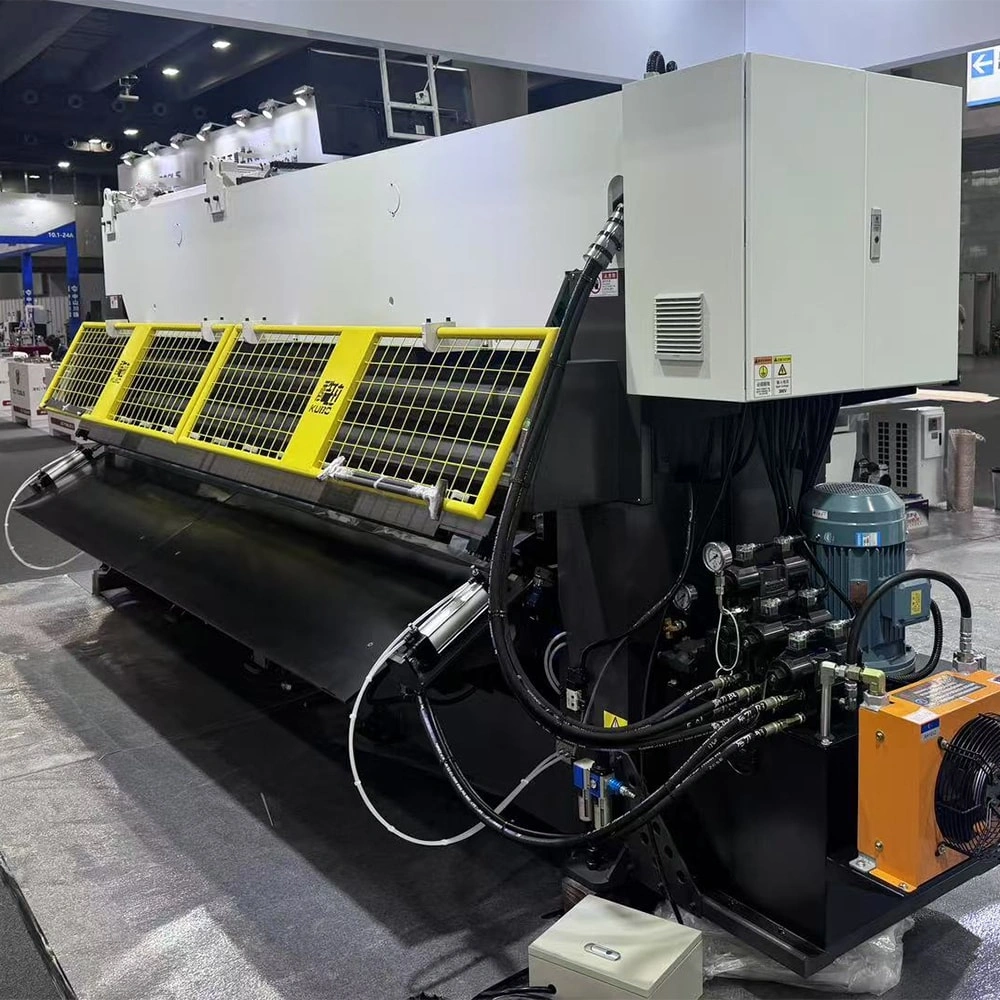

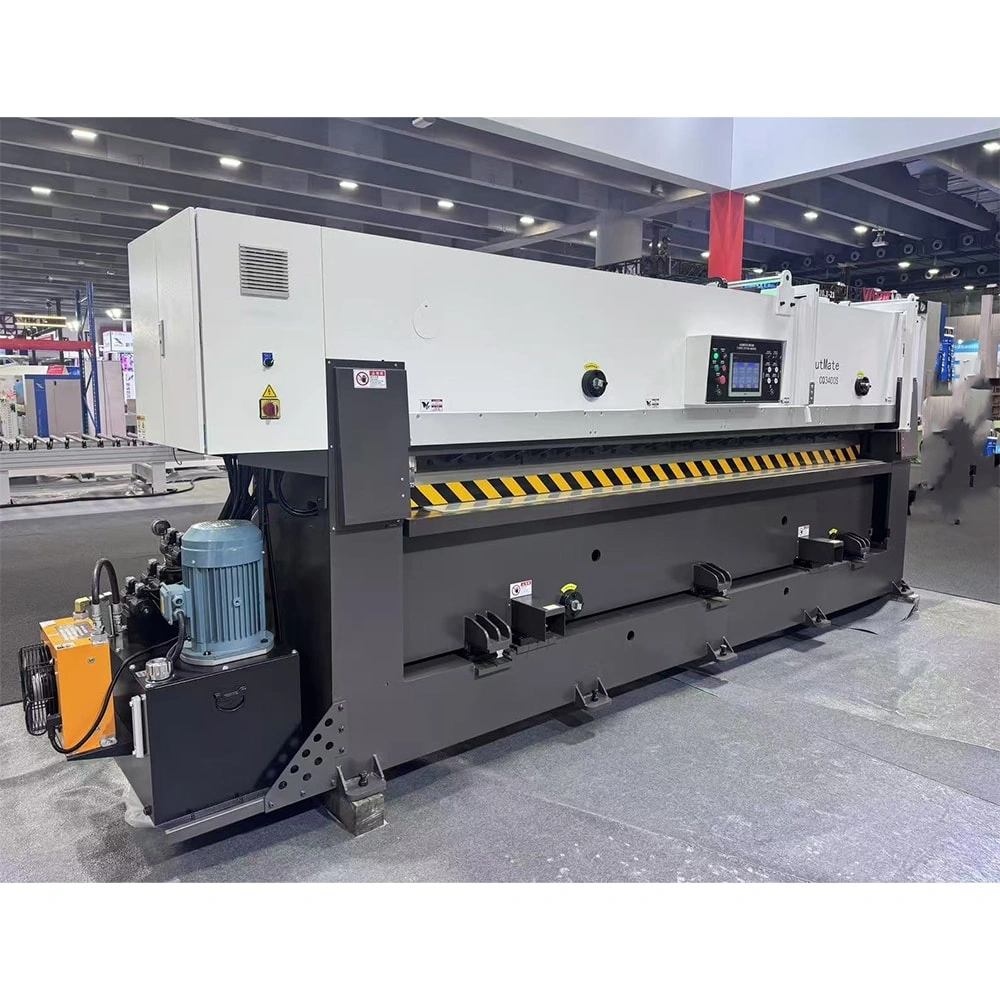

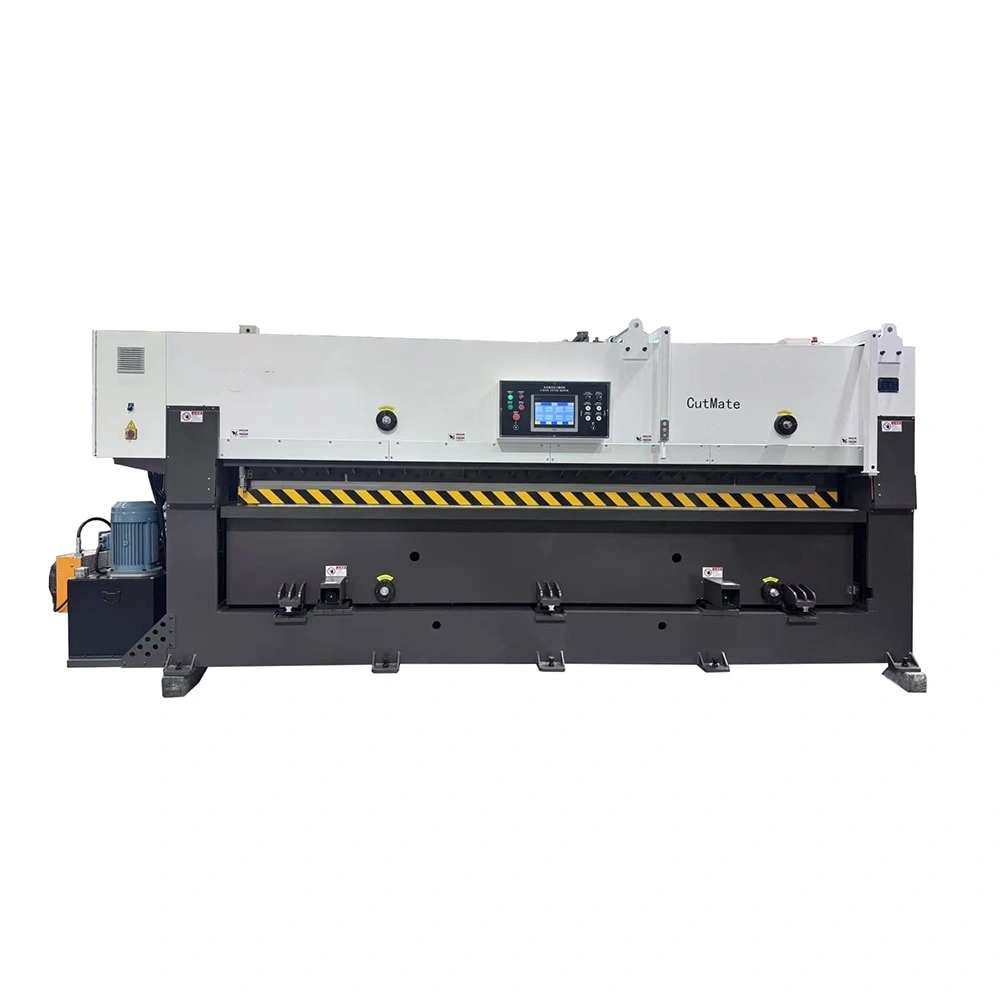

The double knife veneer guillotine is a price of equipment essential for seamless veneer splicing. It solves the problem of cutting arising from the overlaying veneer by single cutter, effectively improves the utilization efficiency of raw materials . Also, it can realize perfect cutting of spliced veneer in processing. One procedure can enable simultaneous precise cutting of both edges, thus ensuring the horizontal cutting precision of veneer.
| Model | RMSD3200 |
|---|---|
| Max. cutting length | 3200mm |
| Max Space between press bar and work table | 80mm |
| Cutting width | 60-400mm |
| Total power | 10.8Kw |
| Dimensions (L*W*H) | 4700*2750*2100mm |
The double knife veneer guillotine is used to tightly press the wood veneer and then perform parallel cutting with two knives, cutting both sides of the wood veneer at once (with both knives cutting simultaneously), reducing the manual flipping step.
Especially for curved wood veneer, Double knife veneer guillotine can completely press the wood veneer tightly, effectively removing the inherent tension of the wood veneer.
The cutting knife and pressure beam of the double knife veneer guillotine are equipped with laser safety gratings in front, ensuring the safety of use.
There are two operation modes to choose from: manual and automatic. Due to the use of a grating ruler for positioning, its accuracy can be controlled within 0.1mm, with a maximum cutting width of 650mm and accurate cutting angle
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
