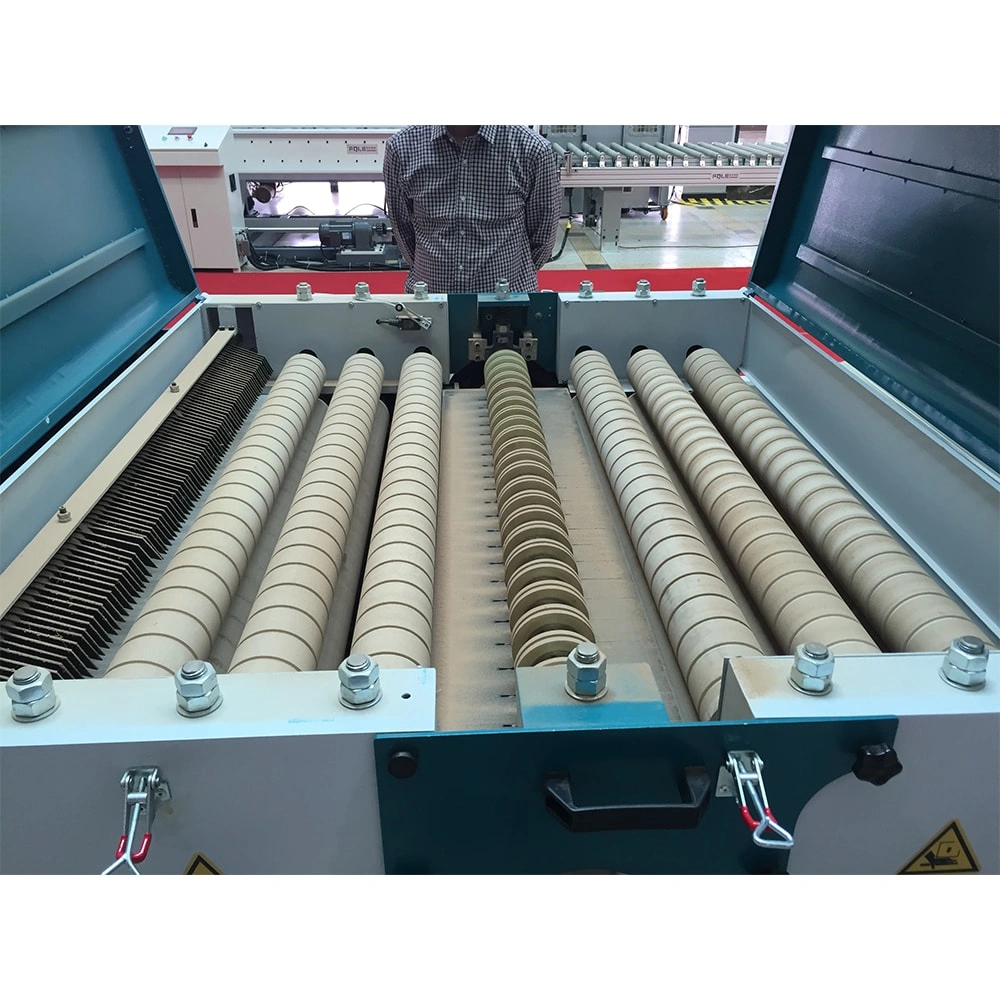

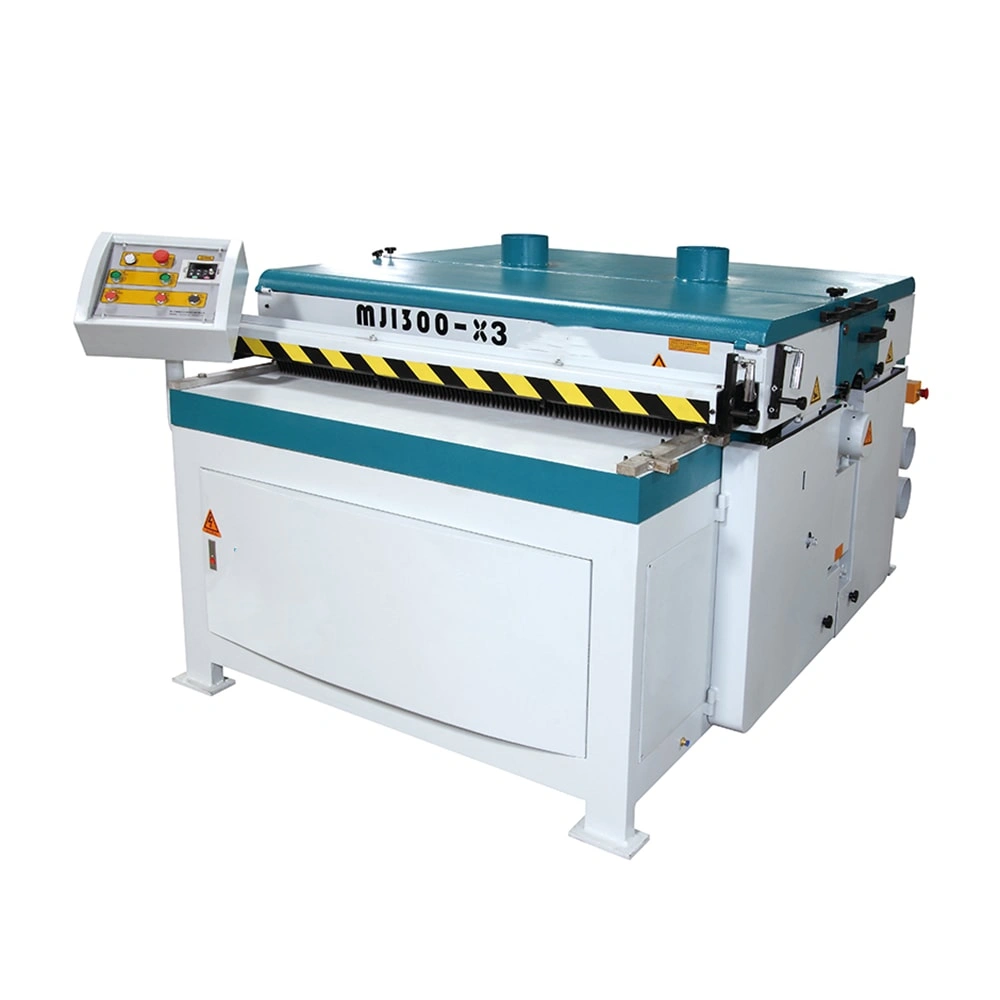

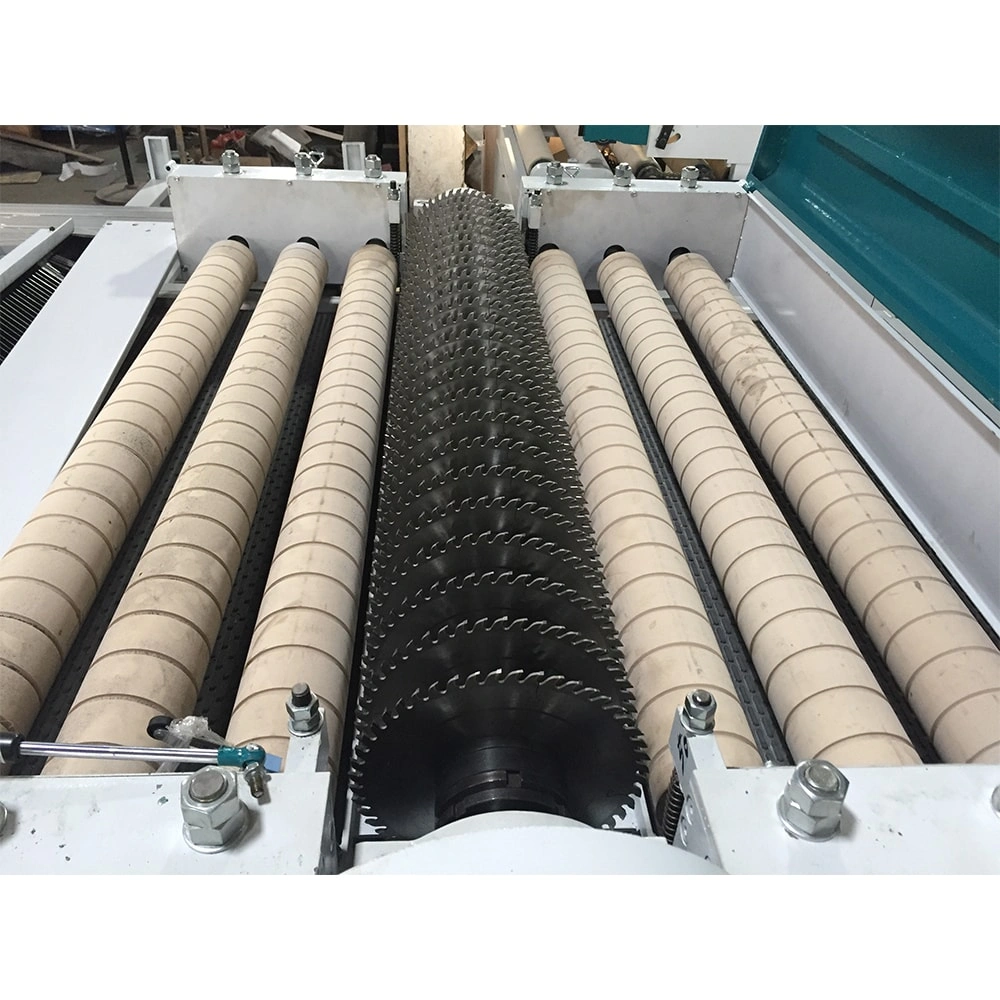

The multi-rip saw are machined by combining multiple saw blades and are mainly used for solid wood processing. The spindle of saw can lift and down, which is suitable for different kinds of wood material. multi-rip saw machine frame has enough strength and rigidity to provide solid basis for power cutting and smooth feeding.
| Model | RM130-X3 | RM65-X3 |
|---|---|---|
| Max Working width (mm) | 1300 | 650 |
| Working thickness(mm) | 5-25 | 5-25 |
| Min. Working Length (mm) | 400 | 400 |
| Spindle Speed (r/min) | 2600 | 2600 |
| Saw Blade Diameter (mm) | 205 | 205 |
| Power of Spindle Motor (kw) | 15 | 7.5 |
| Power of Feeding Motor (kw) | 1.5 | 1.5 |
| Feeding Speed (m/min.) | 0-12 | 0-12 |
| Pair Number / Number of Feeding Roller | 6units/12 pieces | 6units/12 pieces |
The multi-rip saw are machined by combining multiple saw blades and are mainly used for solid wood processing.
The spindle of saw can lift and down, which is suitable for different kinds of wood material. multi-rip saw machine frame has enough strength and rigidity to provide solid basis for power cutting and smooth feeding.
The multi-rip saw equipped with a laser measurement system for width calibration, the feeding speed range is 6 - 80 m/min.
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
