| Model | MJ346 | MJ345 |
|---|---|---|
| Power of model | 4KW | 2.2KW |
| Wheel speed | 750r/min | 600r/min |
| Length of blade | 4500mm | 4060mm |
| Max. cutting thickness | 450mm | 400mm |
| Wheel diameter | Φ600mm | Φ500mm |
| Tilt of working table | 0-20° | 0-20° |

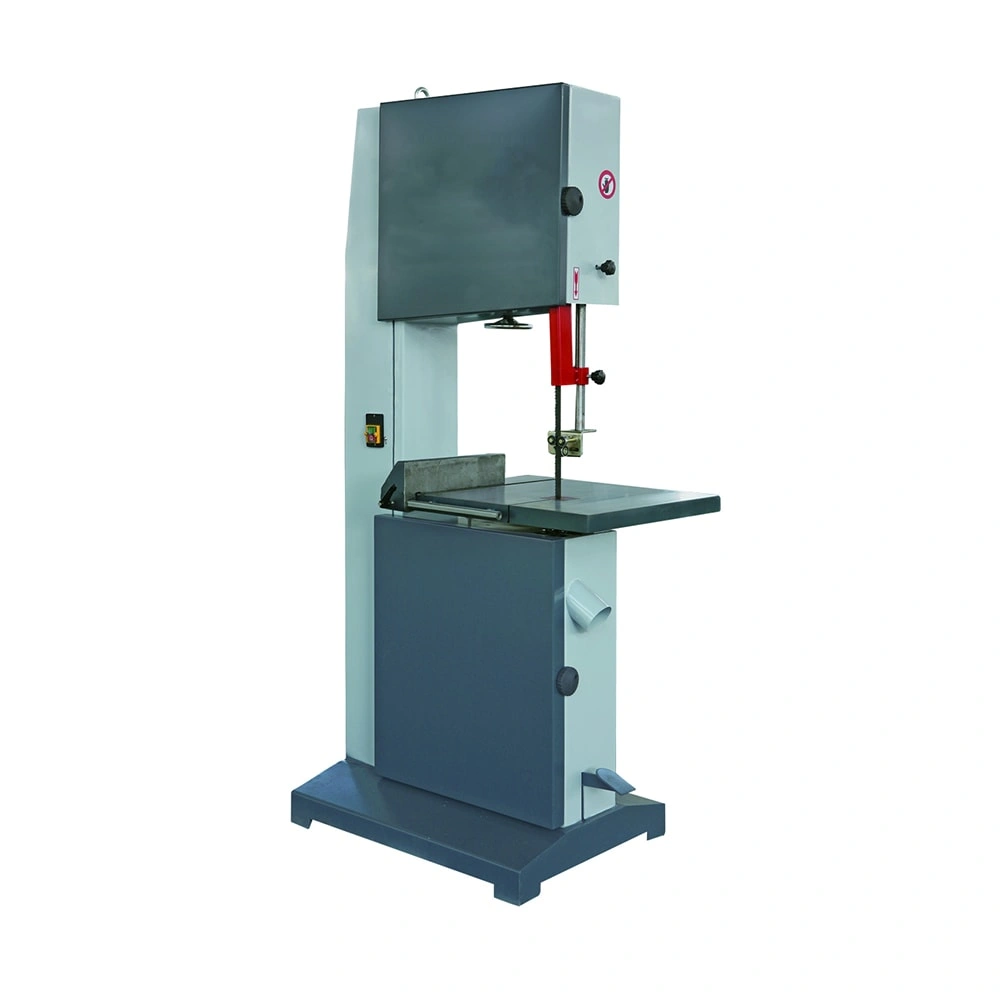

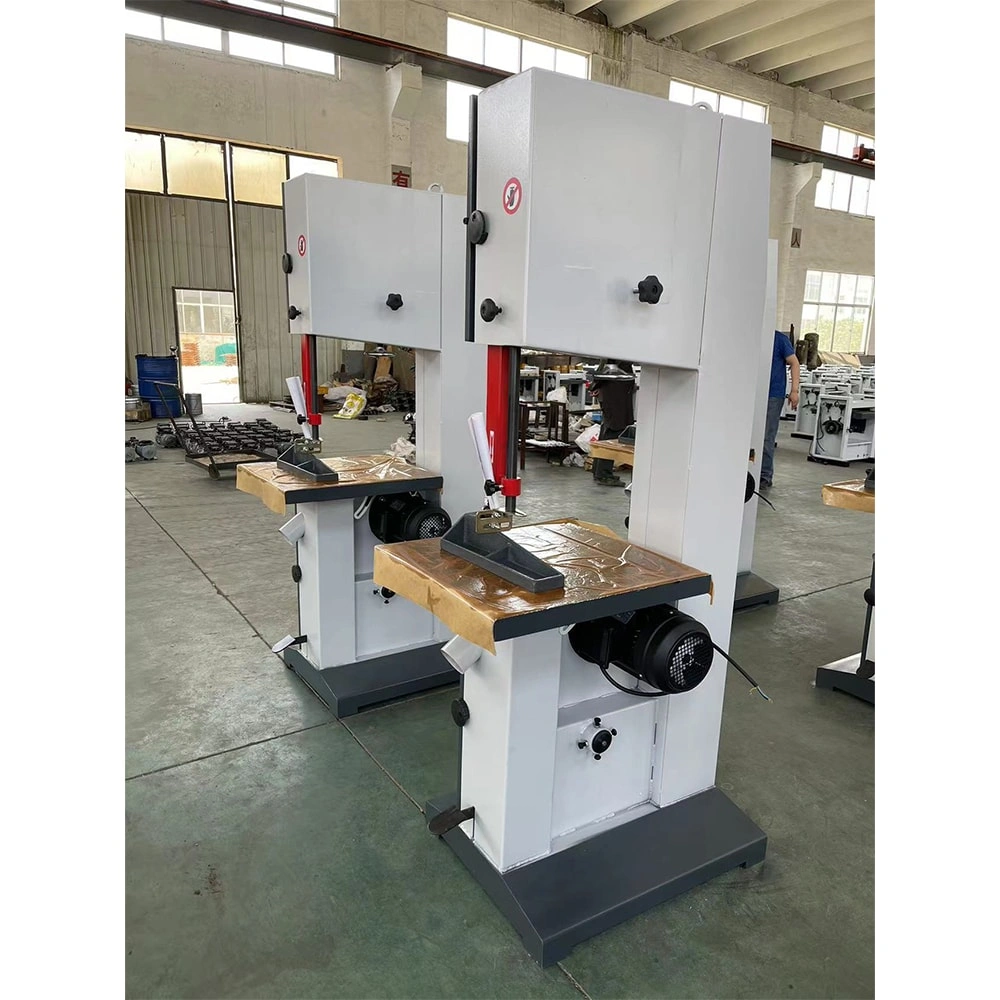

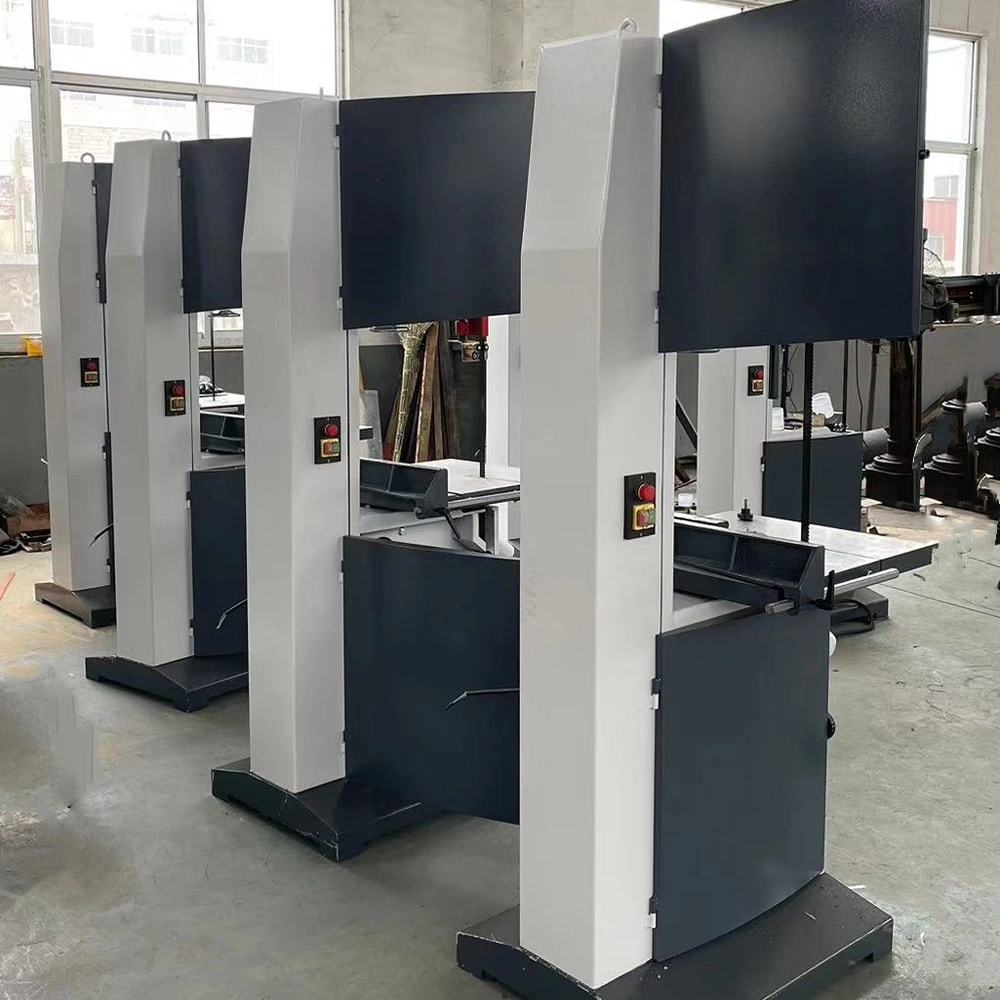

The band saw machine is a sawing machine that uses a circular band saw blade without end as the saw tool, which moves in a unidirectional continuous straight line around two saw wheels to cut wood.
The band saw usually has the lower saw wheel as the driving wheel and the upper saw wheel as the driven wheel.
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
