Cross Cutting Saw

Cross Cutting Saw

The cross cutting saw is a CNC device used for wood cutting, mainly applied in the processing of wood for furniture, solid wood flooring, doors and Windows, etc. This equipment realizes automatic optimal processing through CNC computer numerical control technology.

Inquiry Contact

Technical parameters

Model	RMC300A-2
Working width	20-300mm
Working thickness	10-120mm
Max.cutting size	120*80mm
Min processing length	400mm
Feeding speed	80m/min
Saw blade diameter	510mm
Saw shaft speed	3200r/min
Saw blade motor power	7.5kw
Frequency of sawing up and down movement	2-4time/1sec.
Air Tolerance	1000NL/min
Air Pressure	0.4-0.6mpa
Diameter of dust entrance	Ф140mm

Video

Characteristic

The cross cutting saw is equipped with a powerful sawing motor, capable of processing a maximum thickness of 120mm and maximum width of 300mm.

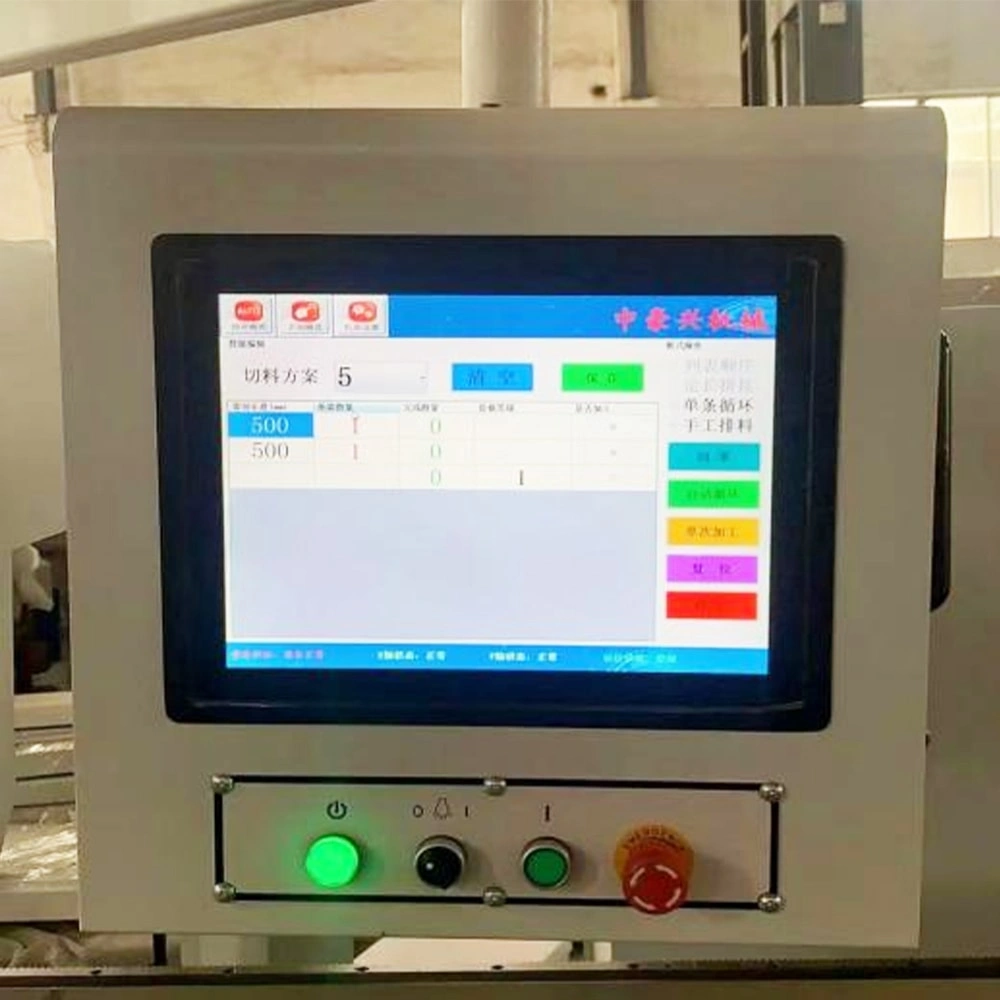

The cross cutting saw is equipped with our independently developed operating system,Simple operation and high efficiency.
