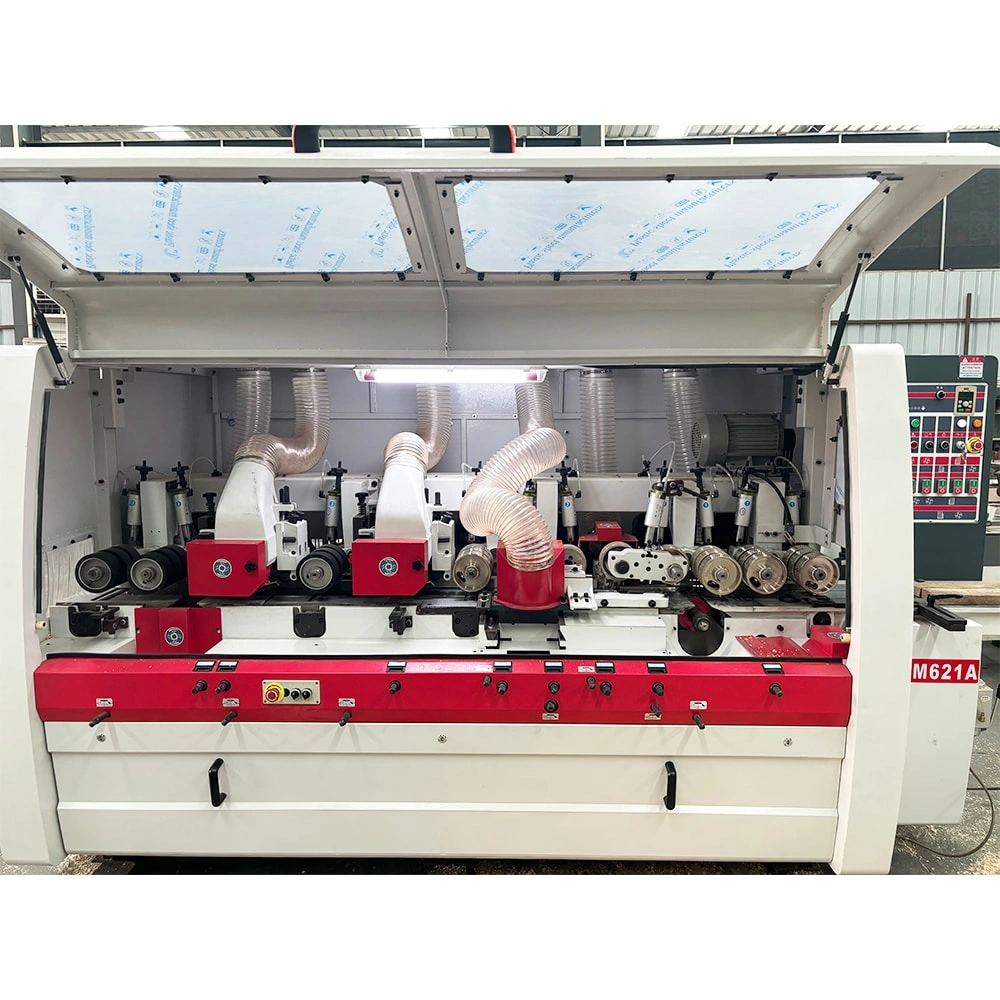

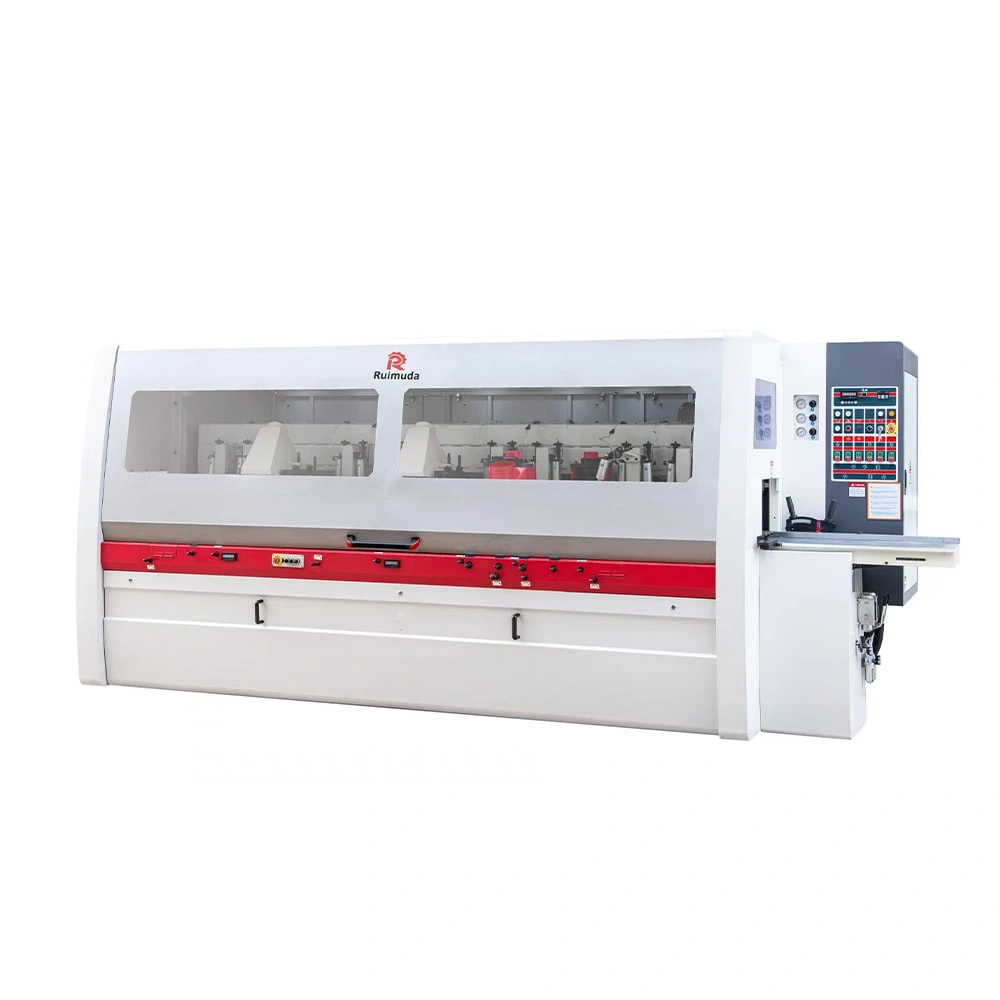

6 Spindles Four Sided Planer Moulder

6 Spindles Four Sided Planer Moulder

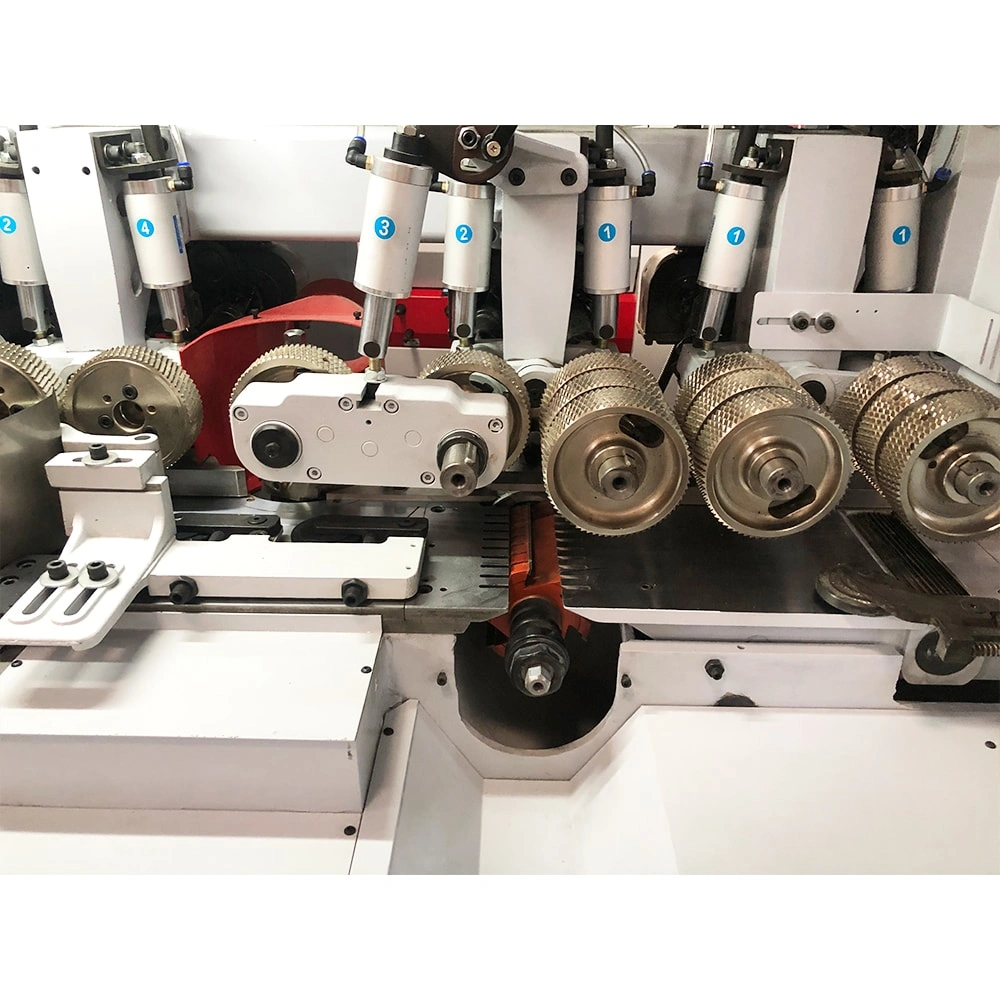

In the four sided planer moulder of woodworking machinery, the pressure roller (also known as the pressure roller or feeding pressure roller) is a key component that ensures stable transportation of wood during processing, prevents vibration or deviation.

Inquiry Contact

Technical parameters

Model	RM616A	RM621A
Working width	15-160mm	15-210mm
Working thickness	8-120mm	8-120mm
Work table length	1600mm	1600mm
Feeding speed	10-45m/min	10-45m/min
Main spindle diameter	Φ40mm	Φ40mm
Rotary speed of main spindle	6800r/min	6800r/min
Air pressure	0.6MPa	0.6MPa

Video

Characteristic

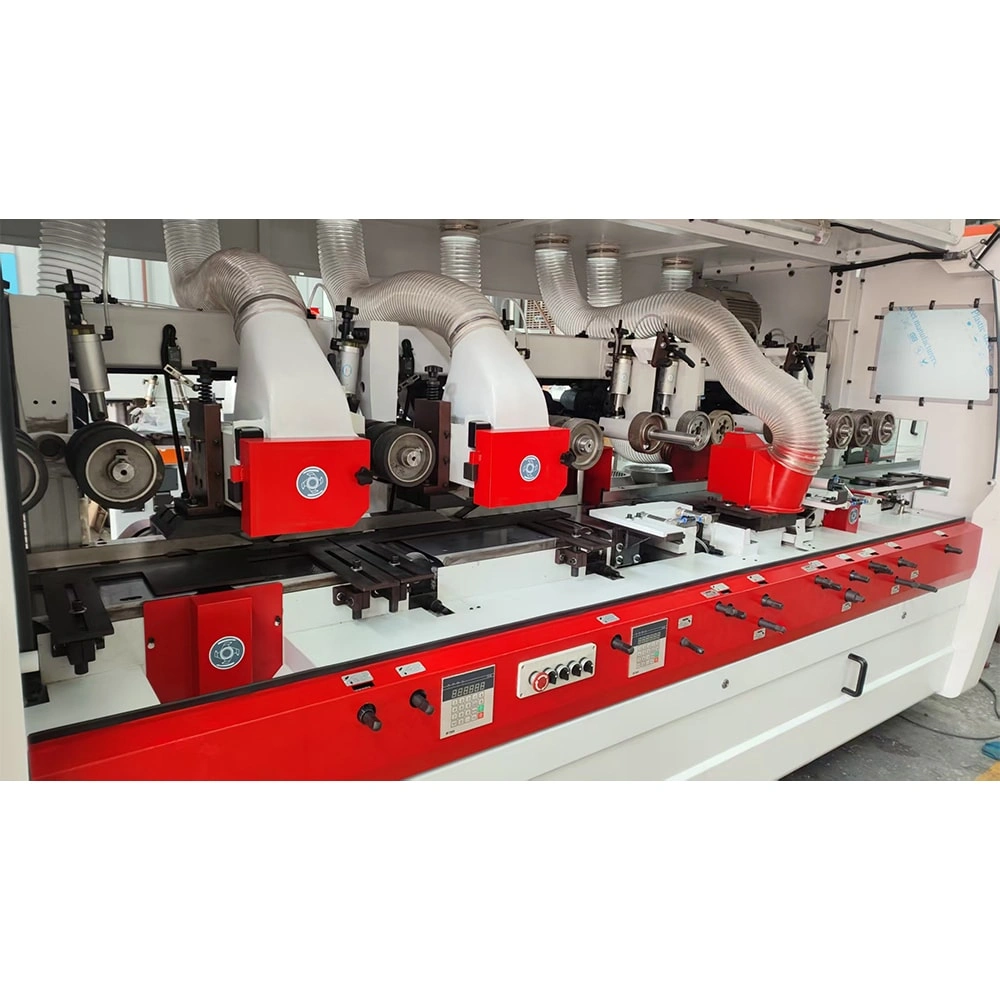

The four sided planer moulder equip with short pieces device with pneumatic double-direction( press and raise) , you can make the workpieces feeding or back in anytime.
