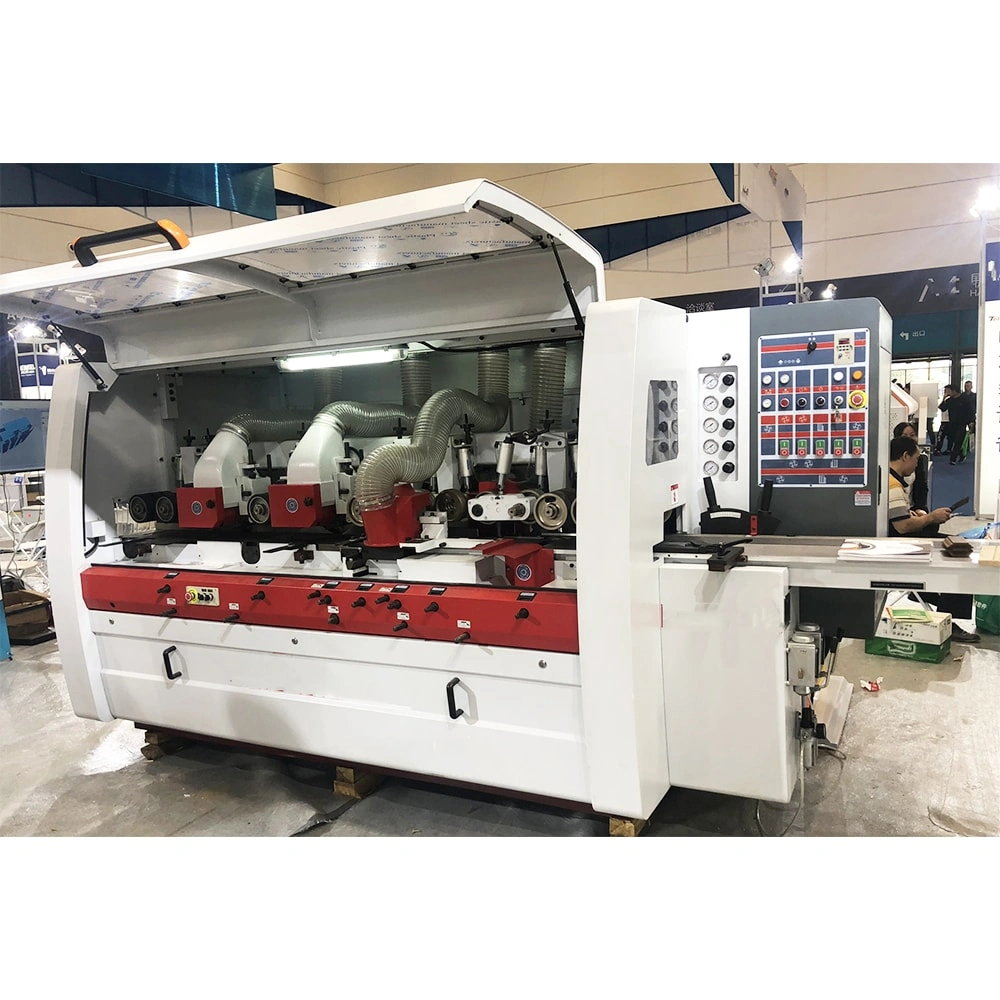

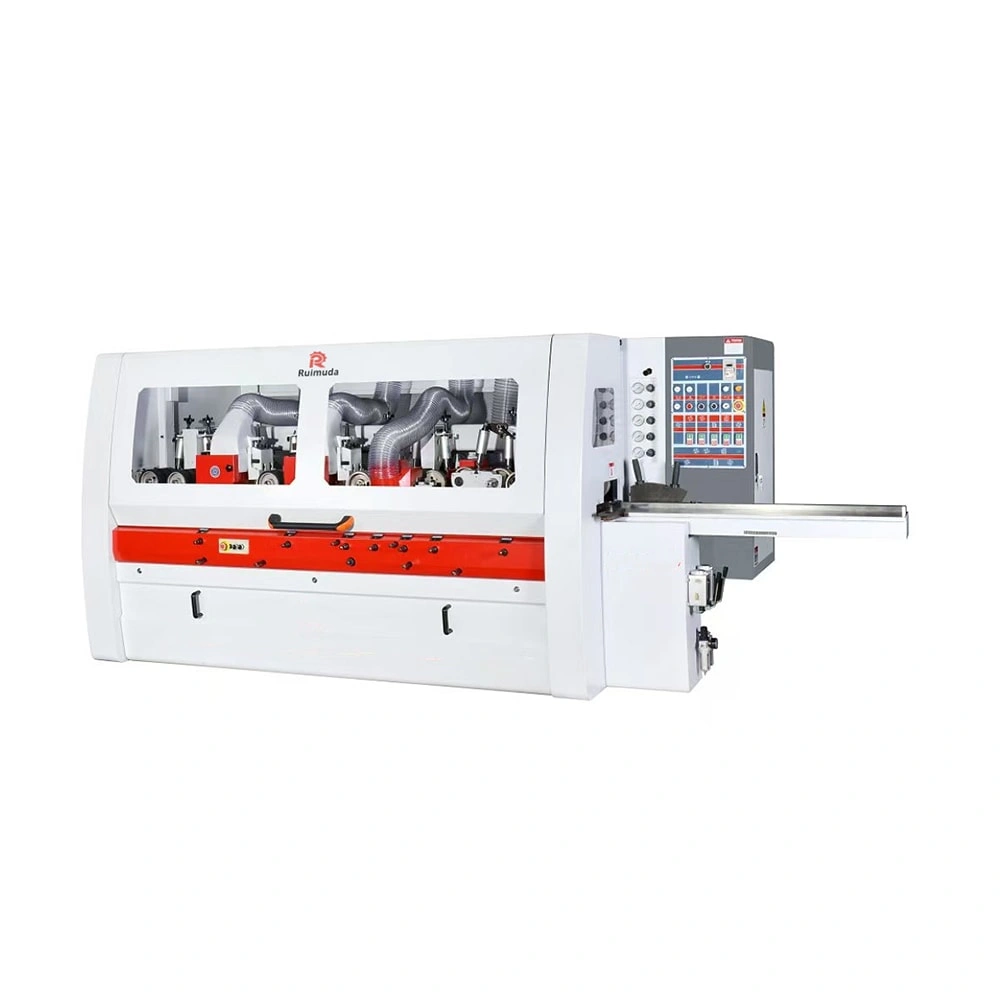

5 Spindles Four Sided Planer Moulder

5 Spindles Four Sided Planer Moulder

The four sided planer moulder workbench is made of high-strength steel and has undergone precision grinding and chrome plating treatment on the surface to ensure flatness and wear resistance.

Inquiry Contact

Technical parameters

Model	RM516A	RM521A
Working width	15-160mm	15-210mm
Working thickness	8-120mm	8-120mm
Work table length	1600mm	1600mm
Feeding speed	10-45m/min	10-45m/min
Main spindle diameter	Φ40mm	Φ40mm
Rotary speed of main spindle	6800r/min	6800r/min
Air pressure	0.6MPa	0.6MPa

Video

Characteristic

The four sided planer moulder workbench is made of high-strength steel and has undergone precision grinding and chrome plating treatment on the surface to ensure flatness and wear resistance.

The four sided planer moulder machine body is made of cast iron, with good shock absorption and wear resistance, suitable for high-precision equipment, and heavy weight.

The control panel is four sided planer moulder "brain" responsible for coordinating the operation of various components, setting processing parameters, and ensuring safety. Can control the start/stop of the main motor,feeding system, and feeding speed.
