| Model | RM350B-PUR-II |
|---|---|
| Max. wrapping width | 350mm |
| Max processing thickness | 120mm |
| Wrapping speed | 0-50m/min |
| Total Power | 13Kw |
| Power of main motor | 2.2Kw |
| Power of dusting motor | 0.37Kw3 |
| Power of PUR glue machine | 8Kw |
| Manner of adjusting width of glue spreading | Change gasket of glue spraying head |

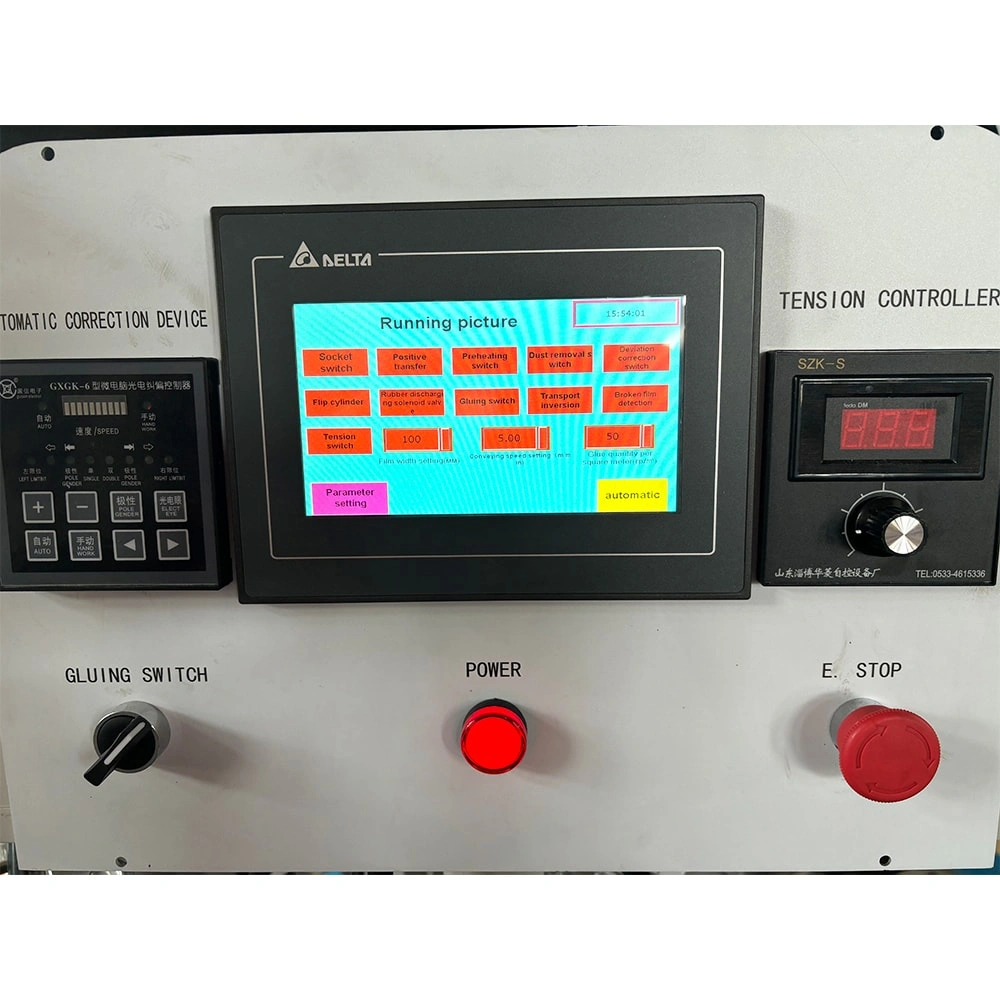

| Electrical control manner | PLC control, Touching screen |

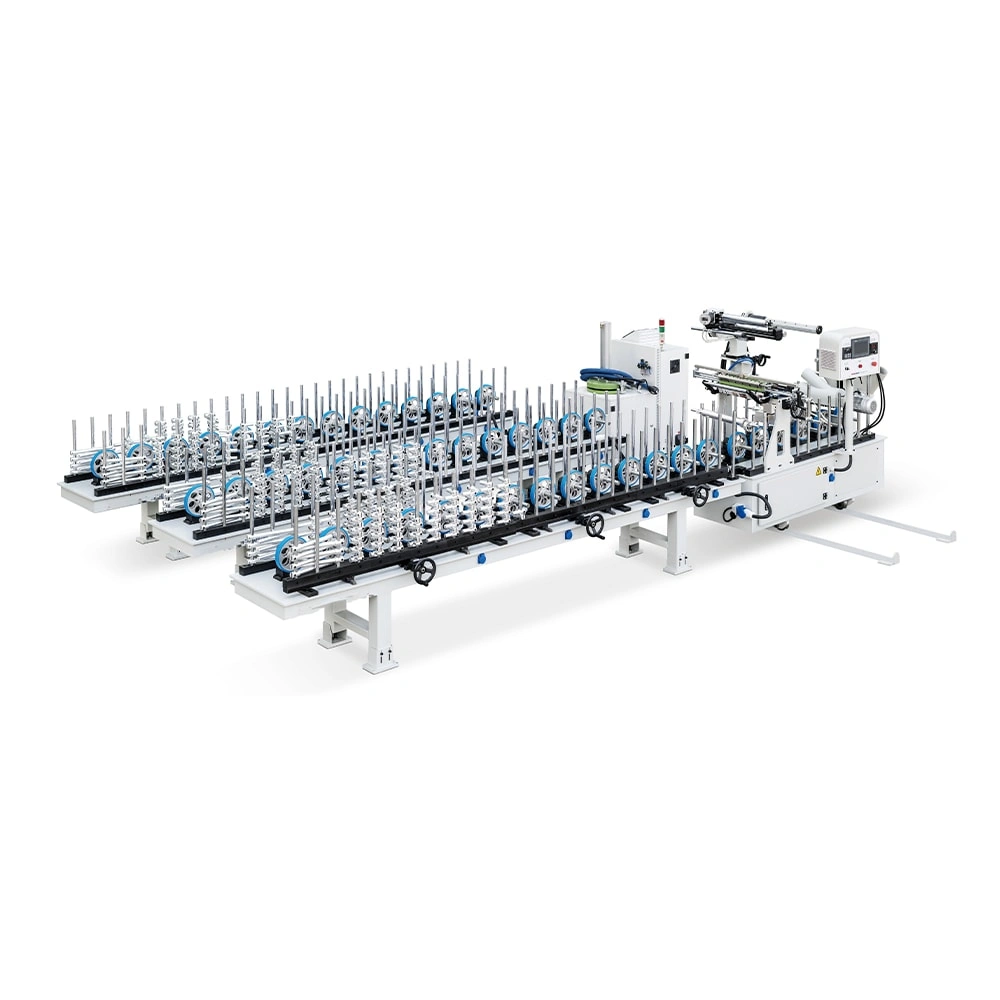

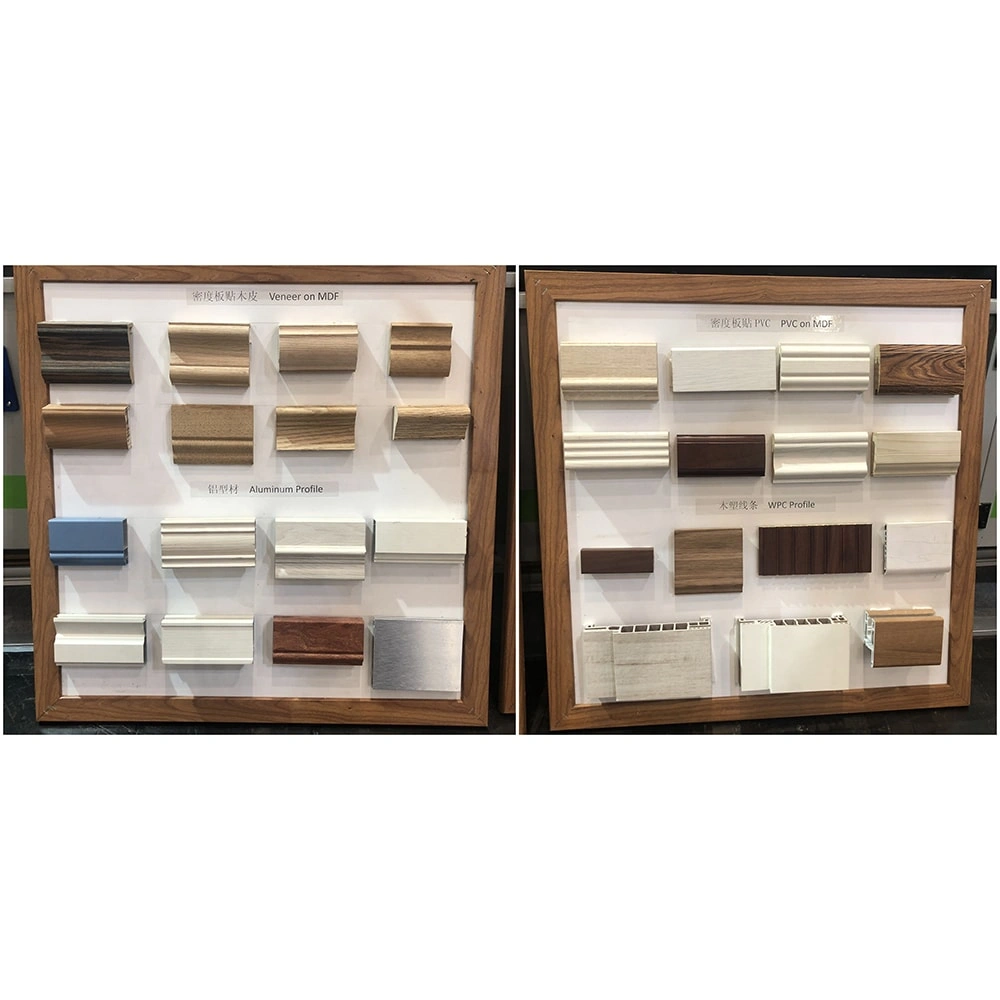

The PUR adhesive profile wrapping machine is special for PUR glue. This machine is suitable for wrapping PVC, PP,PET,Veneer,Paper,foil on the surface of UPVC, wood, MDF, aluminum sheets and so on.

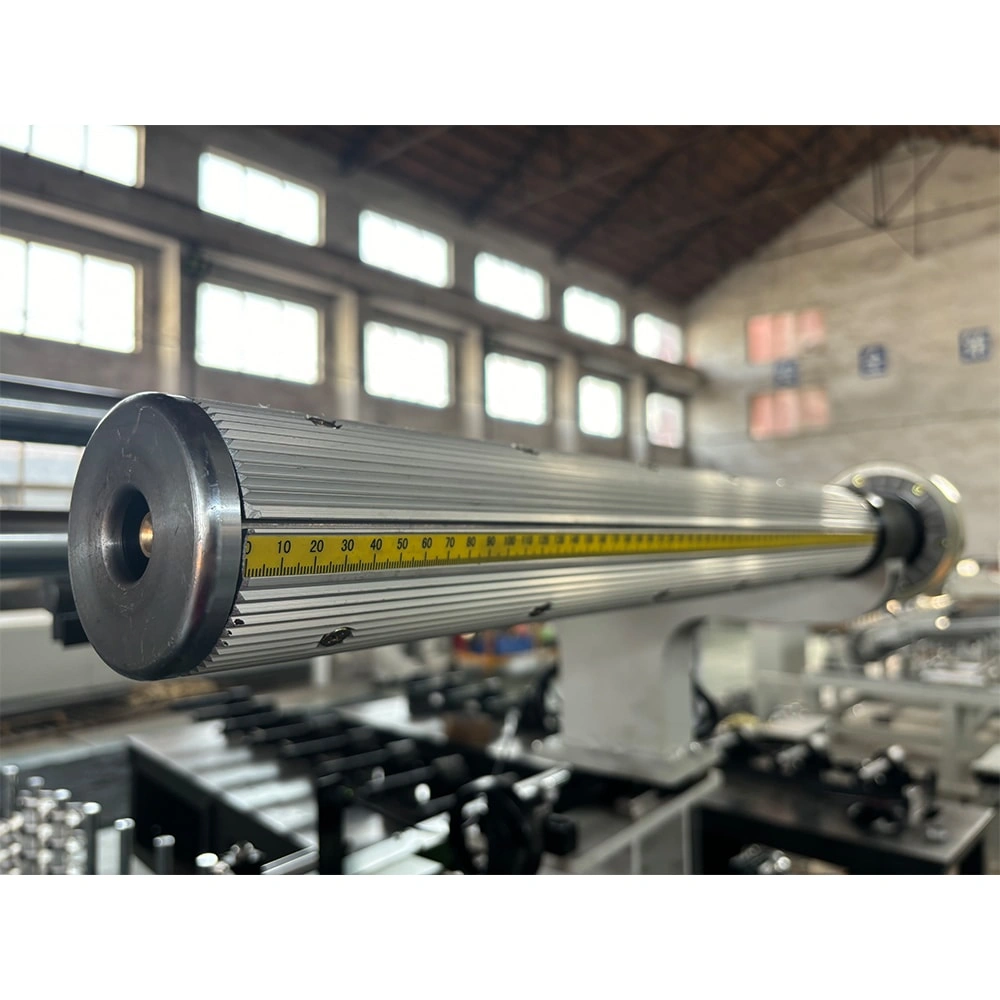

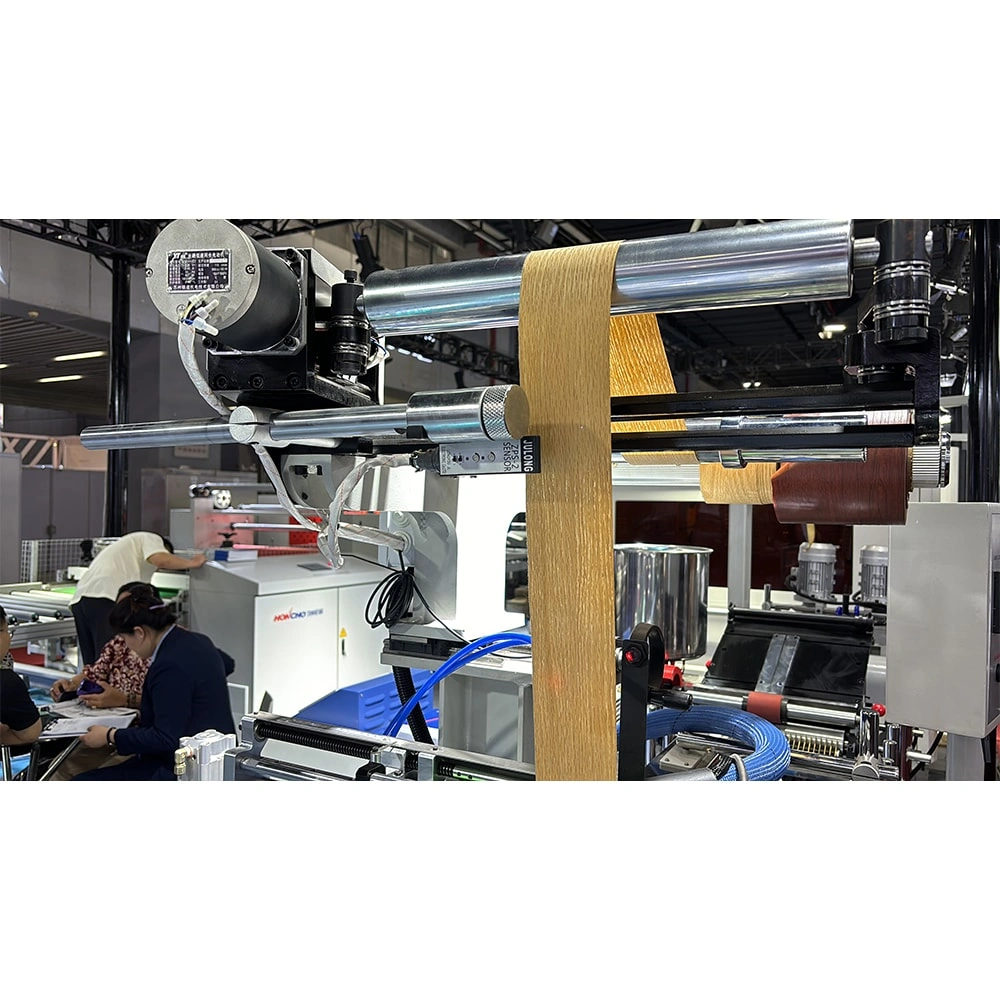

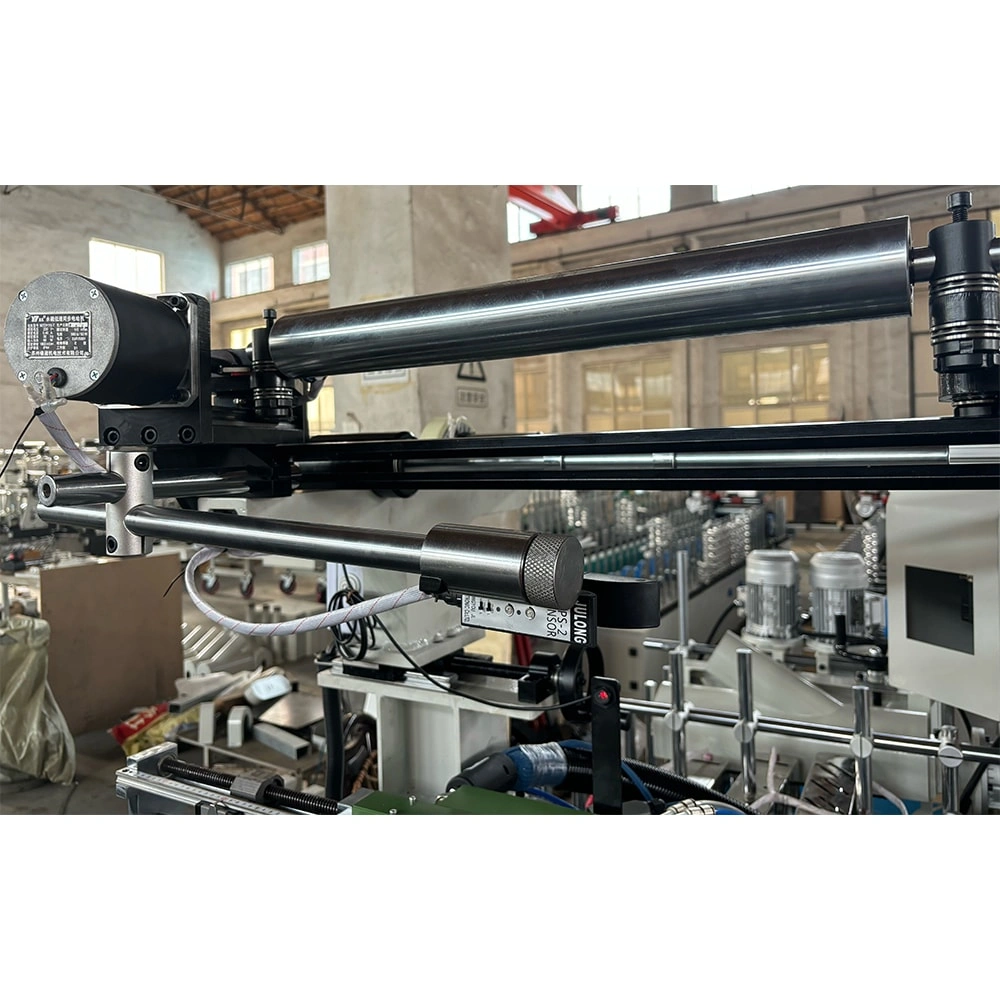

The PUR adhesive profile wrapping machine adopts professional PUR glue melting and glue supply system, with three sides of preheating, air rising shaft, electromagnetic brake system, photoelectric correction system, non-stop rubber changing machine, EVA glue coating device and other advanced configuration.
The PUR adhesive profile wrapping machine is split type, 1 set of glue coating system can be equipped with any number of pressing parts, so as to realize the rapid replacement of lines, greatly improve the production efficiency.
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
