| Model | RM300A |
|---|---|
| Max. wrapping width | 300mm |
| Max wrapping thickness | 120mm |
| Min wrapping width | 2mm |
| Wrapping speed | 0-25m/min |
| Total Power | 5.5Kw |

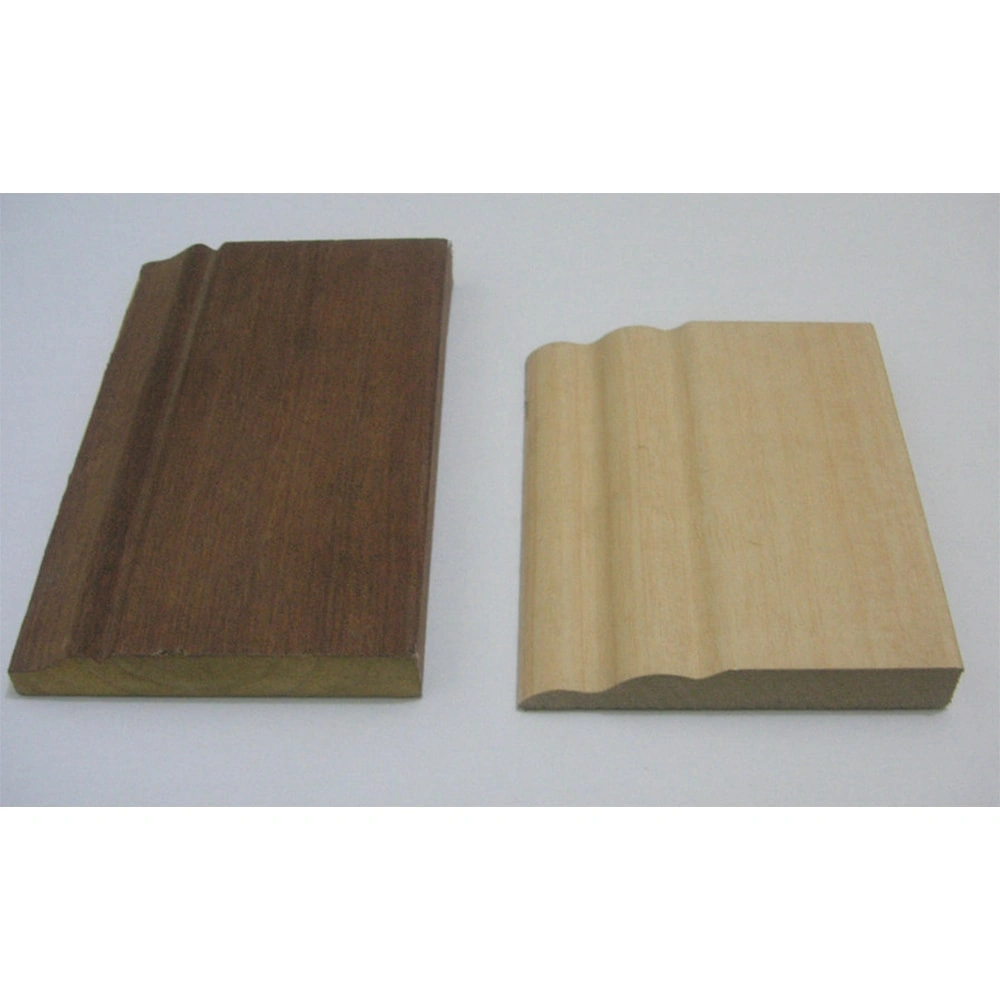

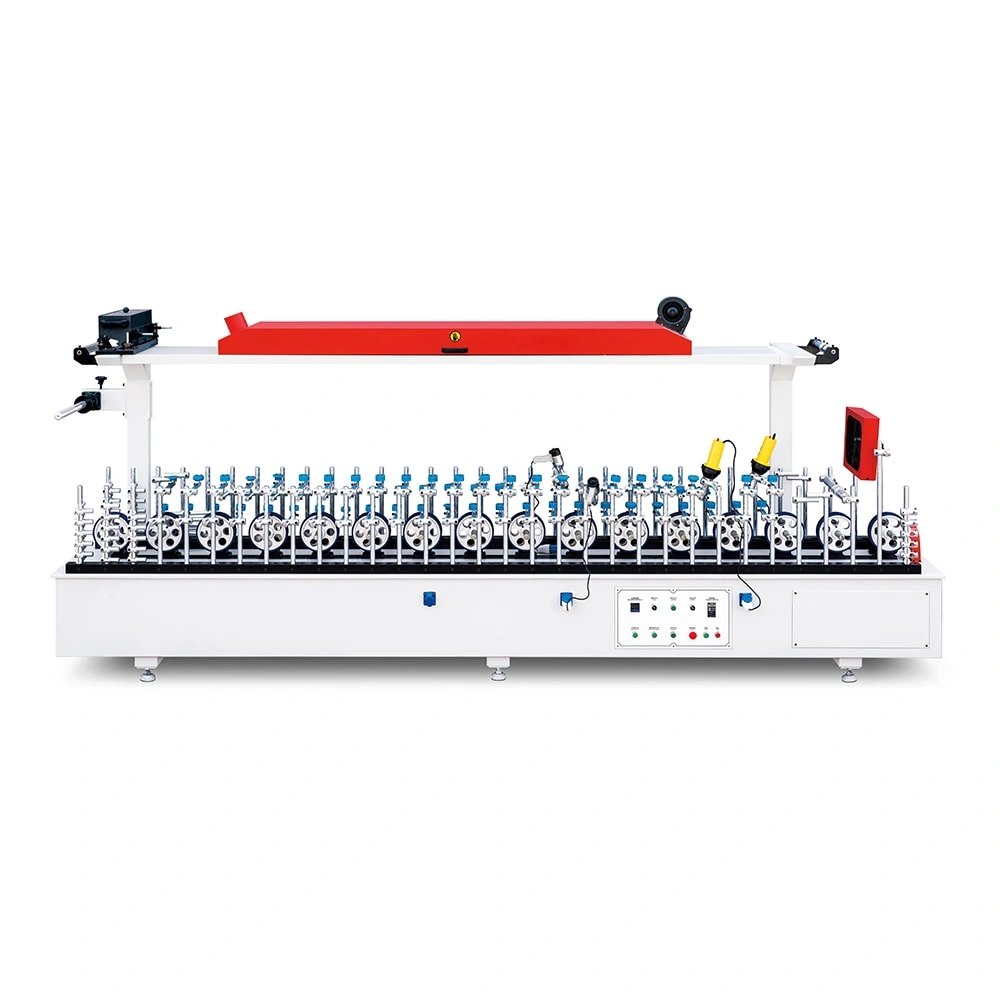

The cold glue profile wrapping machine is a composite device that adheres decorative materials to the surface of profiles,It can be used to wrap PVC on the profile of wood material,aluminum plastic material and froth material , etc.

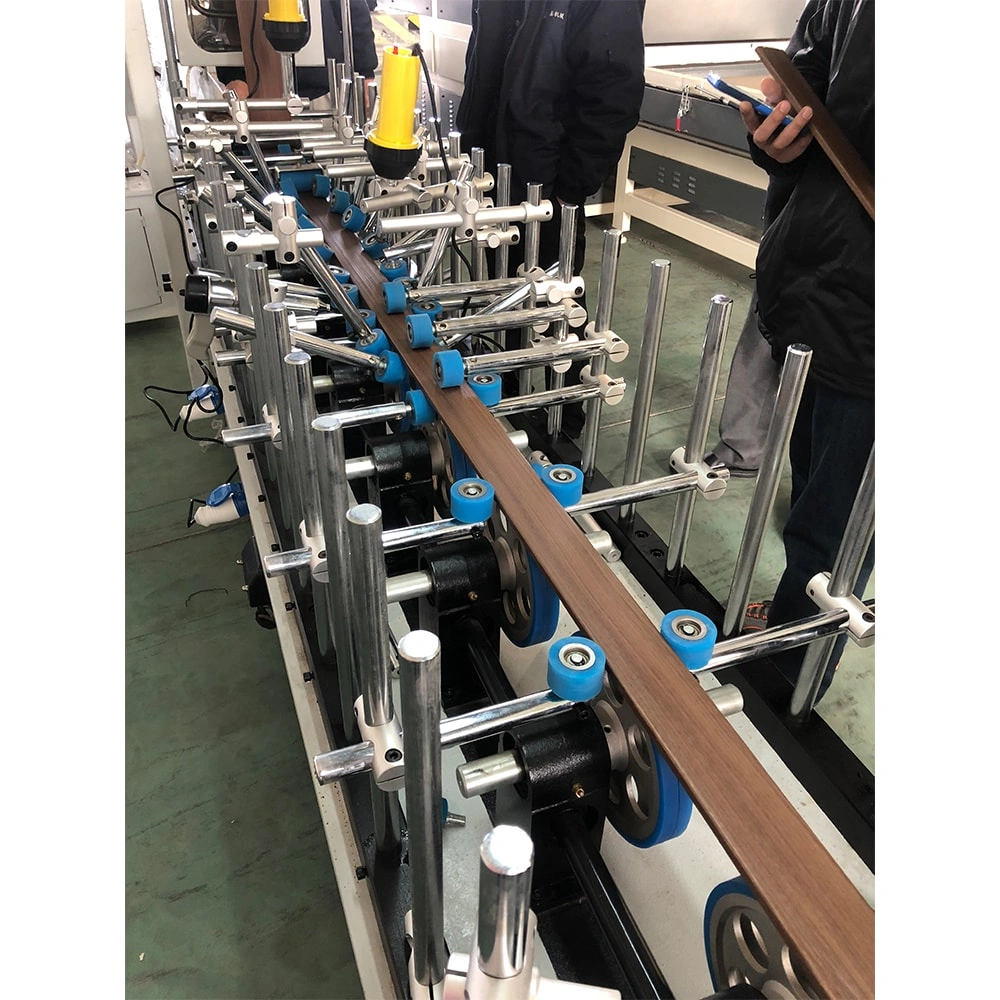

The cold glue profile wrapping machine uses cold glue. Its working principle is that the pressure wheel and the guide wheel gradually press along the profile contour point by point.
There are two gluing methods for the cold glue profile wrapping machine: scraping coating and roller coating. Volatile solvent adhesives should be applied by scraping coating. The adhesive box is easy to seal to prevent the coating adhesive from evaporating.Water-based adhesives and solvent-based adhesives with low volatility are generally applied by roller coating, which is convenient for operation.
The normal swing amplitude and frequency of the abrasive belt have their standard range. If not adjusted properly, the abrasive belt may operate in an abnormal state, causing it to deviate.
Check and adjust the swing amplitude and frequency of the abrasive belt to ensure they are within the normal range (usually the swing amplitude is 15-20mm and the swing frequency is 15-20 times per minute).
1.Regularly inspect and replace worn abrasive belts and contact rollers to ensure the sanding effect and processing accuracy.
2. Conduct a thorough cleaning of the equipment, especially regularly removing wood chips and dust from the surface of the sand belt and rollers.
The power source of the spray gun is controlled by the compressed air pressure valve. The pressure value directly affects the atomization effect of the spray. The working pressure range is 0.3-0.5Mpa.
Pour the cleaning agent into the feeding port of the paint spraying machine, start the paint spraying machine, and let the cleaning agent circulate in the pipeline to clean the paint and dirt inside the pipeline. This process can last for several minutes until the cleaning agent is discharged clearly.
