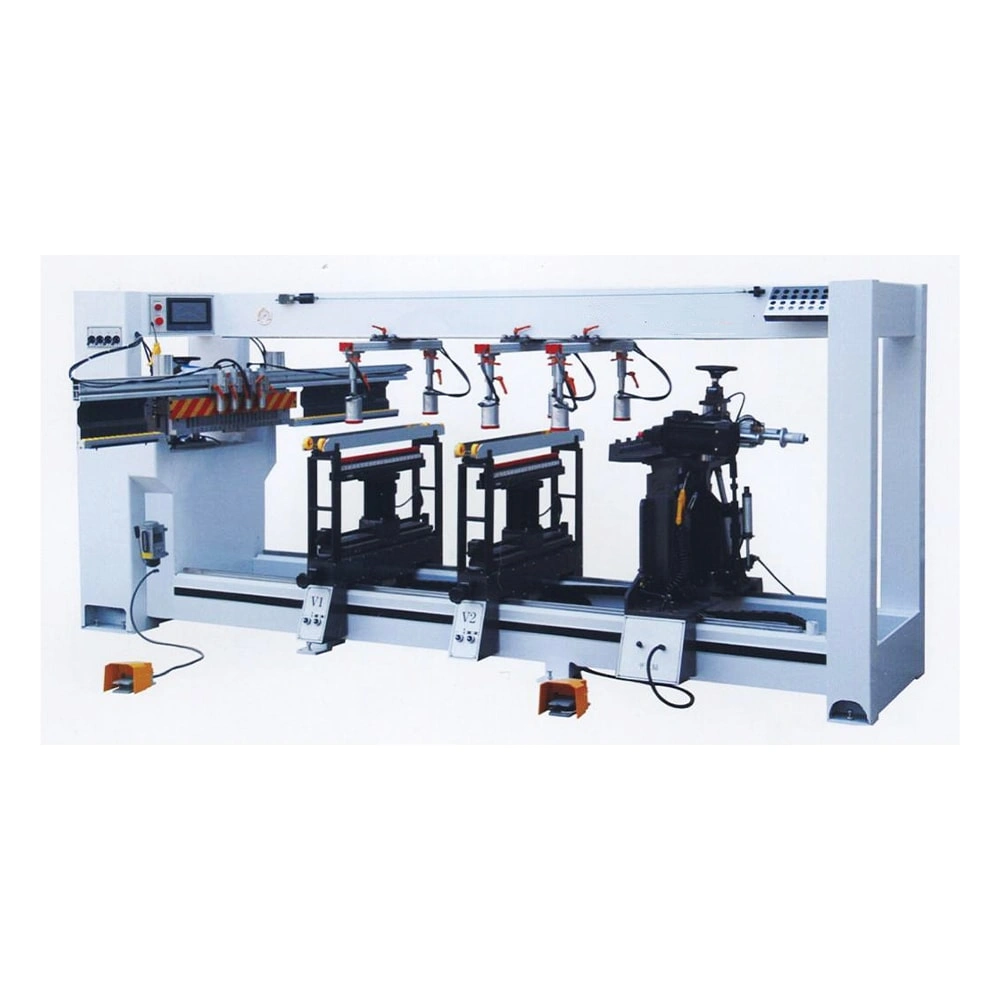

Multi Rows Drilling Boring Machine

Multi Rows Drilling Boring Machine

The multi rows drilling boring machine is applicable to drilling of various density boards, particle boards, artificial boards, PVC boards, acrylic boards and solid wood. The multi rows drilling boring machine can drill at the directions both horizontal and vertica . The boring unit pneumatically inclined at 0°, 45° and 90°.

Inquiry Contact

Technical parameters

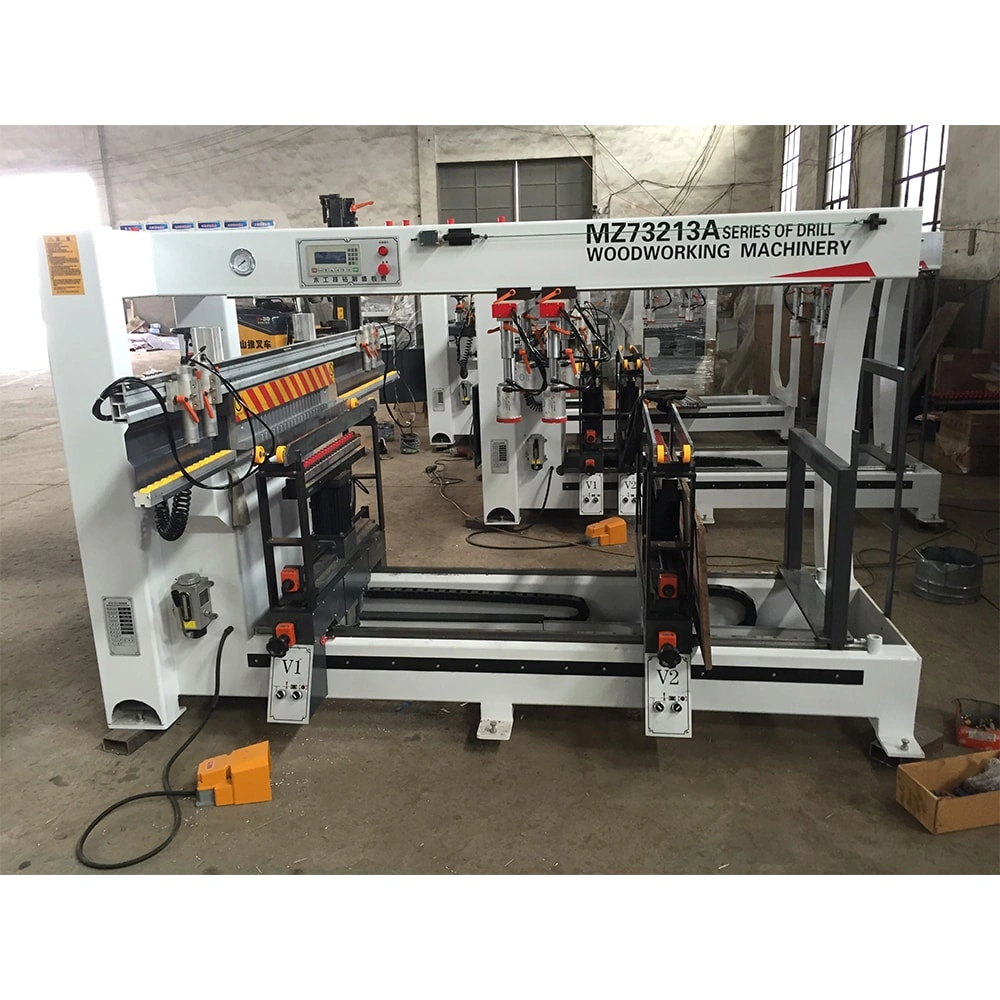

Model	MZ73213A
Max diameter of holes	35mm
Depth of drilled holes	0-60mm
The number of spindles	21shafts*3row=63
Center distance between spindles	32mm
Distance of the two longitudinal heads	140-1700mm
Rotation of spindle	2800r/min
Total motor power	1.5Kw*3
Air pressure	0.5-0.8Mpa

Video

Characteristic

The multi rows drilling boring machine is applicable to drilling of various density boards, particle boards, artificial boards, PVC boards, acrylic boards and solid wood.

The multi rows drilling boring machine can drill at the directions both horizontal and vertica . The boring unit pneumatically inclined at 0°, 45° and 90°.
