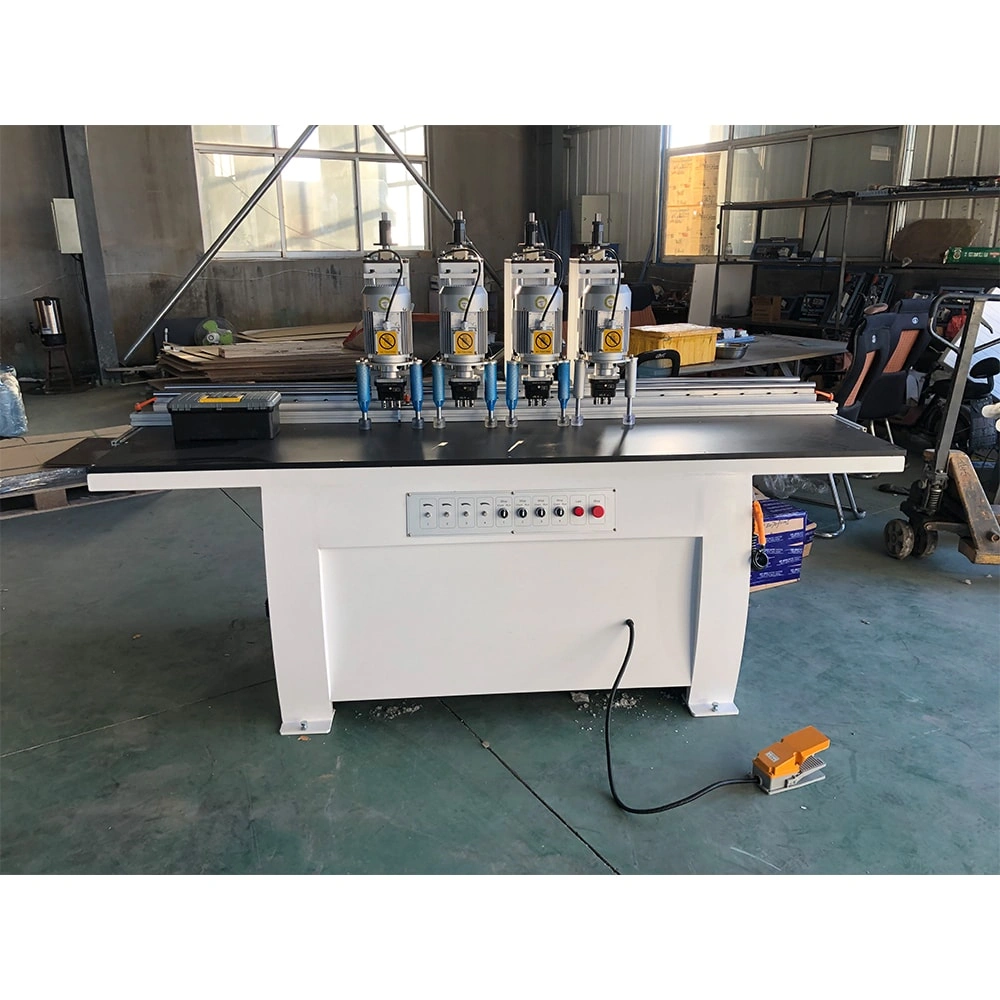

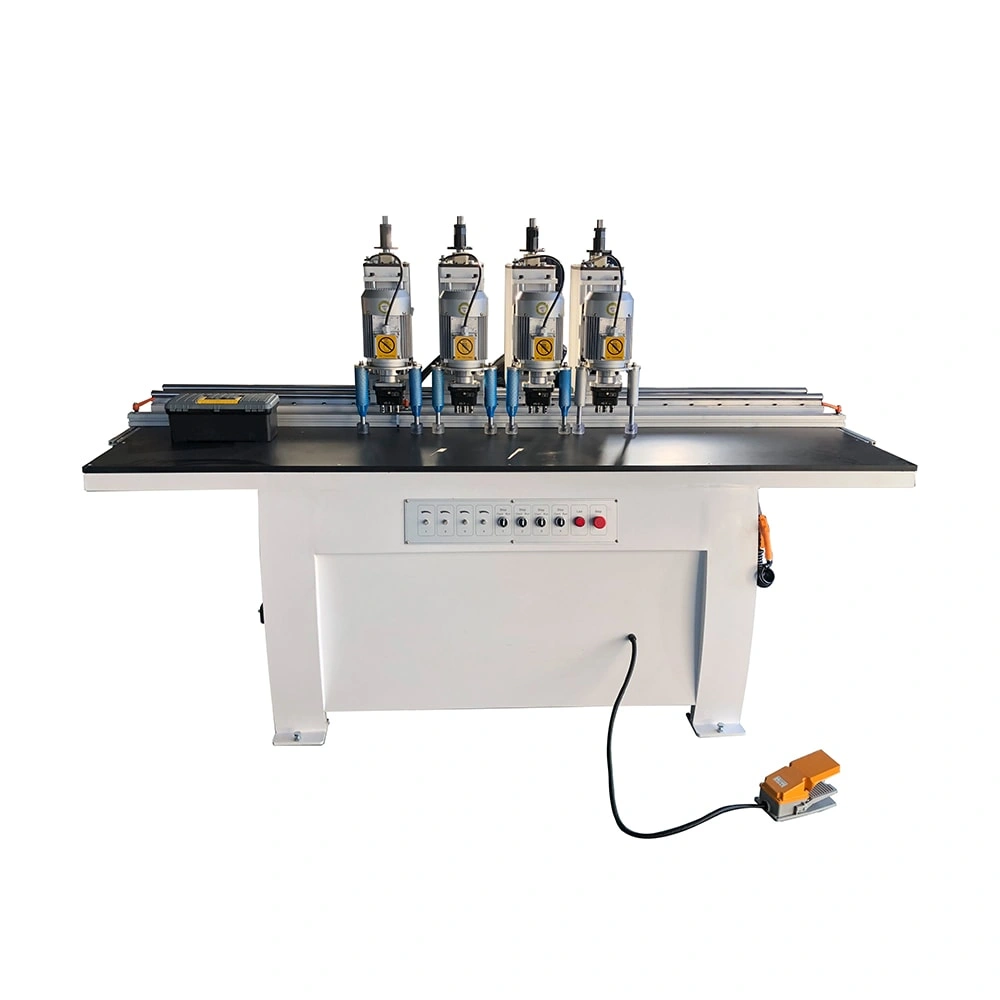

Hinge Drilling Boring Machin

Hinge Drilling Boring Machin

The hinge drilling boring machine is used in the production of furniture hinge woodworking machinery and equipment. The hinge drilling boring machine adopts high strength double guide rail, high precision of position, precision and dust proof facilities.

Inquiry Contact

Technical parameters

Model	MZ73034
Max. drilling diameter	50mm
Max. drilling depth	0-60mm
Drilling distance between two heads	220-2200mm
Number of drill	4spindles*2heads
Spindle speed	2840r/min
Motor power	1.5kw*4
Air pressure	0.6-0.8MPA

Characteristic

The hinge drilling boring machine is used in the production of furniture hinge woodworking machinery and equipment.

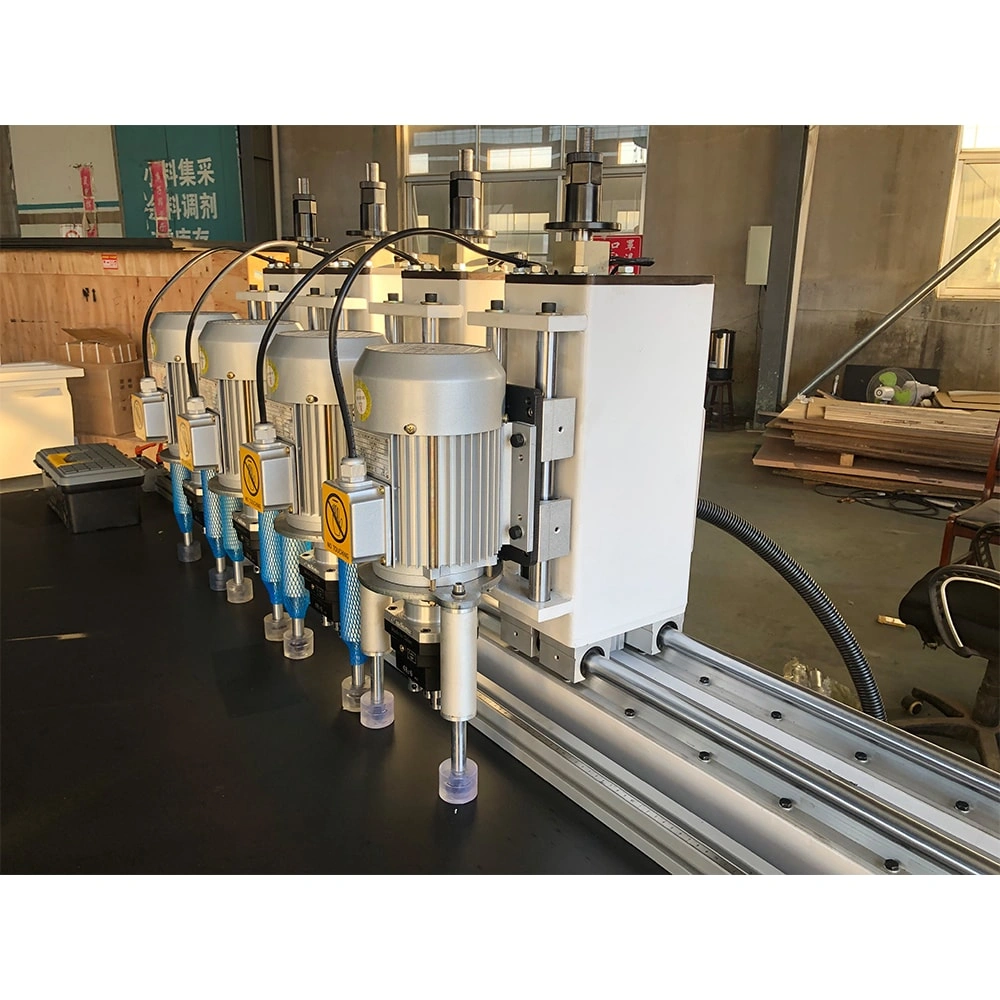

The hinge drilling boring machine adopts high strength double guide rail, high precision of position, precision and dust proof facilities.

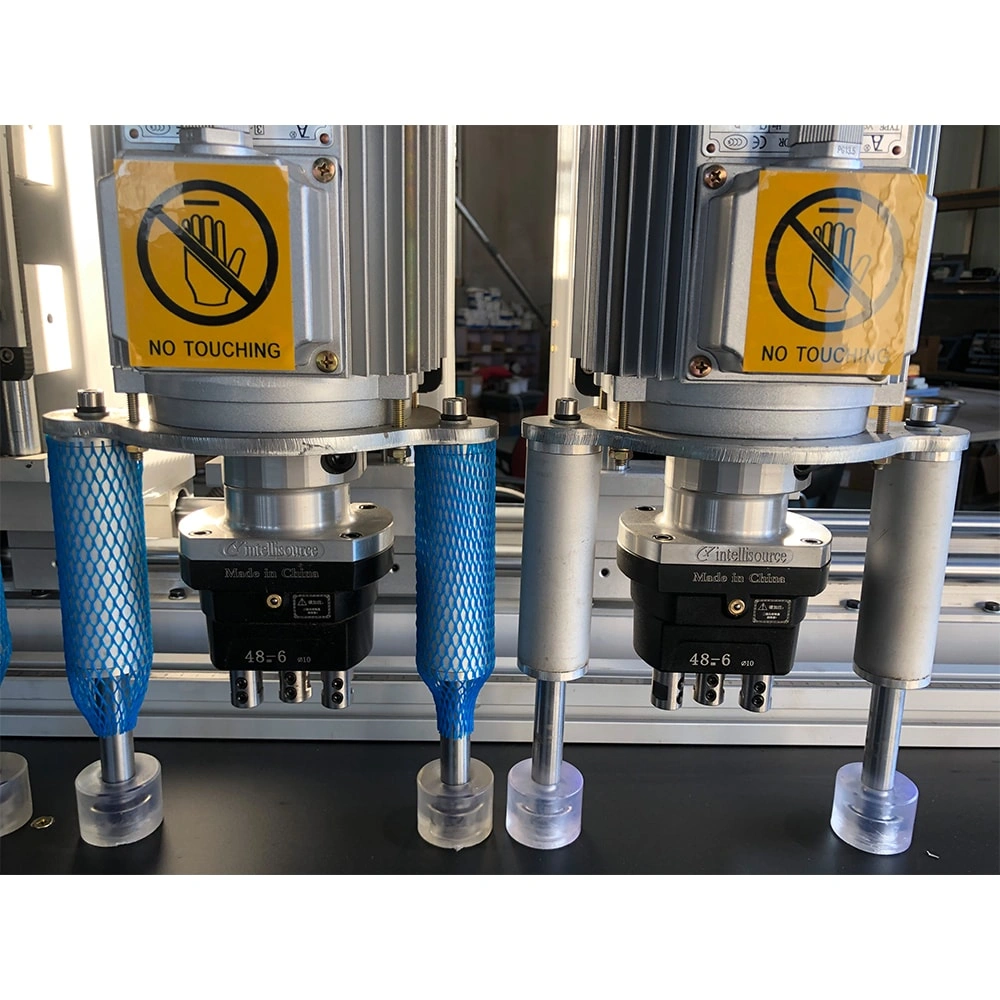

The hinge drilling boring machine is equipped with high power motors, ensuring smooth operation and also has high-precision drill bits with high accuracy and small amplitude.
