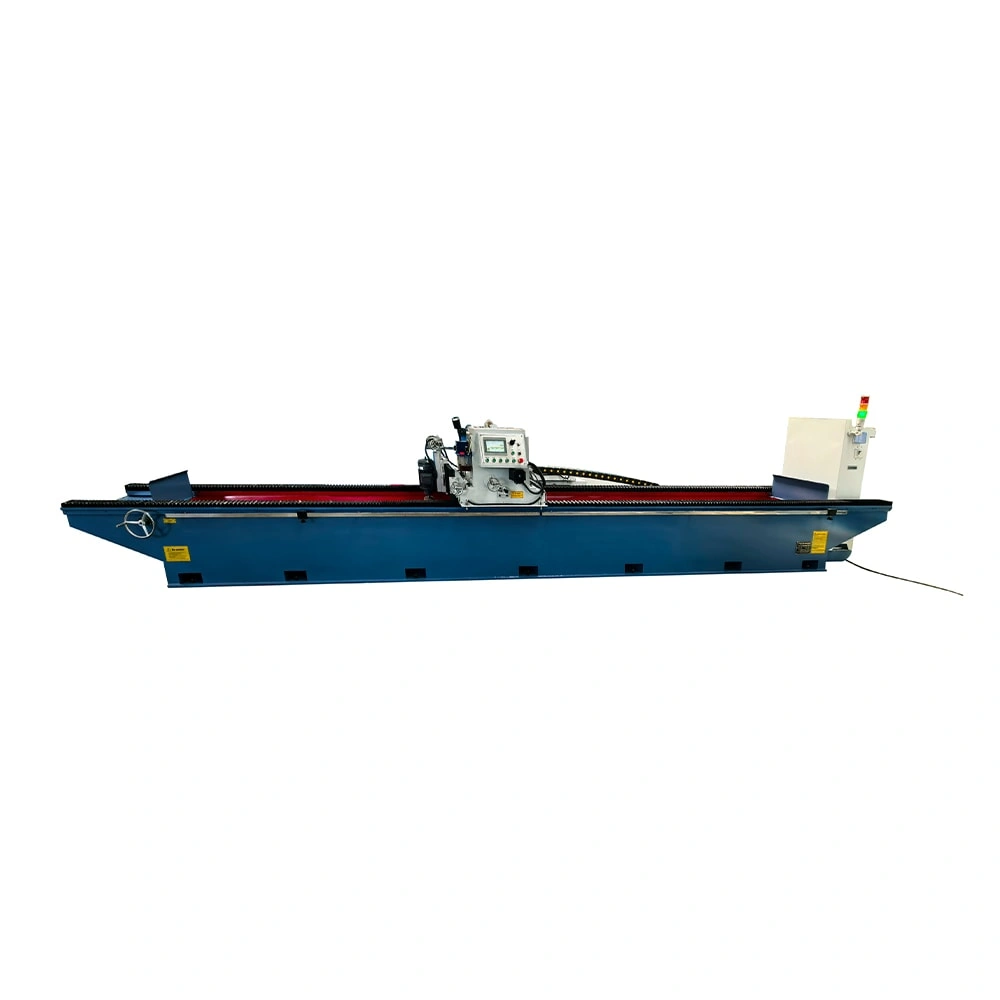

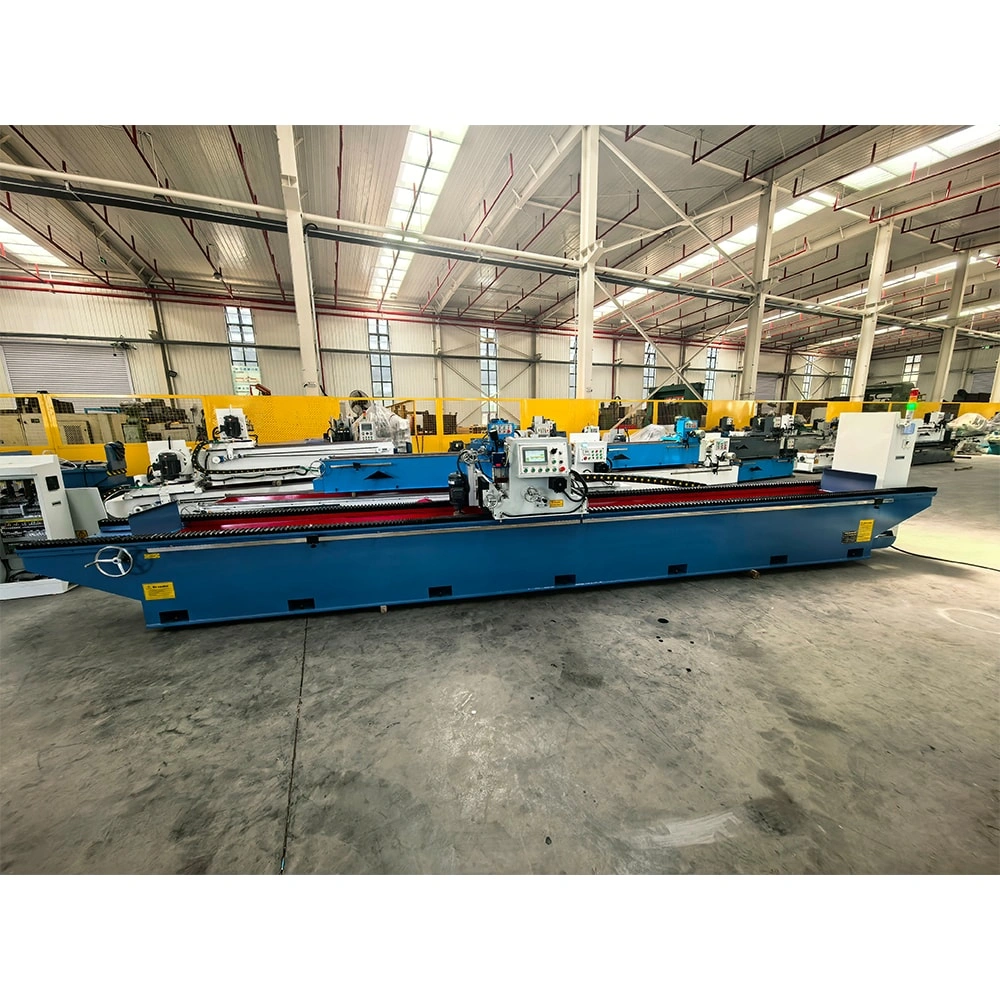

CNC Chipper Knife Grinder

CNC Chipper Knife Grinder

The CNC chipper knife grinder machine is equipped with a PLC control system, and the automatic feeding direction, grinding time, moving speed, etc. can be set through the touch screen.

Inquiry Contact

Technical parameters

Model	RMGN-220
Max grinding length	2270mm
Grinding head power	5.5kw
Linear speed of grinding wheel	15m/s
Total power	10kw
Sliding speed of grinding plate	0-25m/min
Tilting range of the working table	±90°
Tilting range of the grinding wheel	±5°
Grinding wheel speed	1400rpm/min
Form for grinding wheel	Cup Style
Size of grinding wheel (mm)	Φ200x100x32

Video

Characteristic

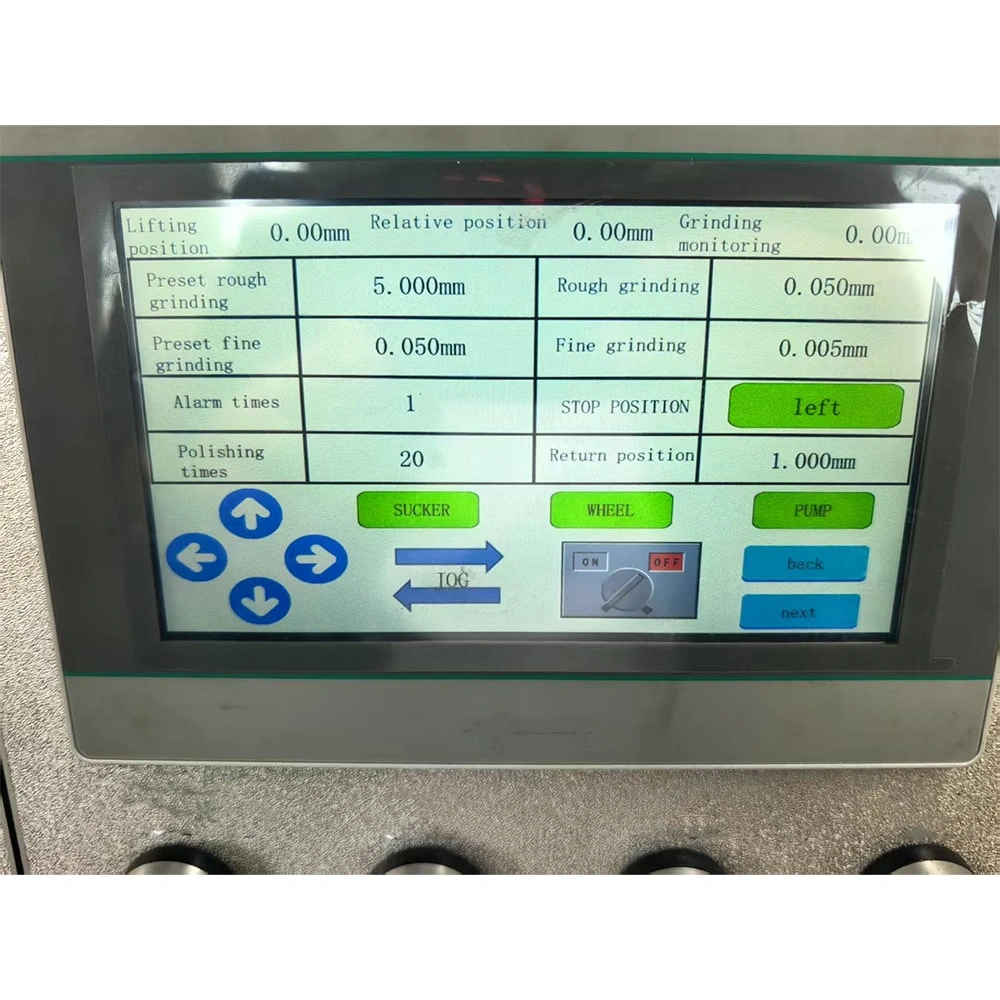

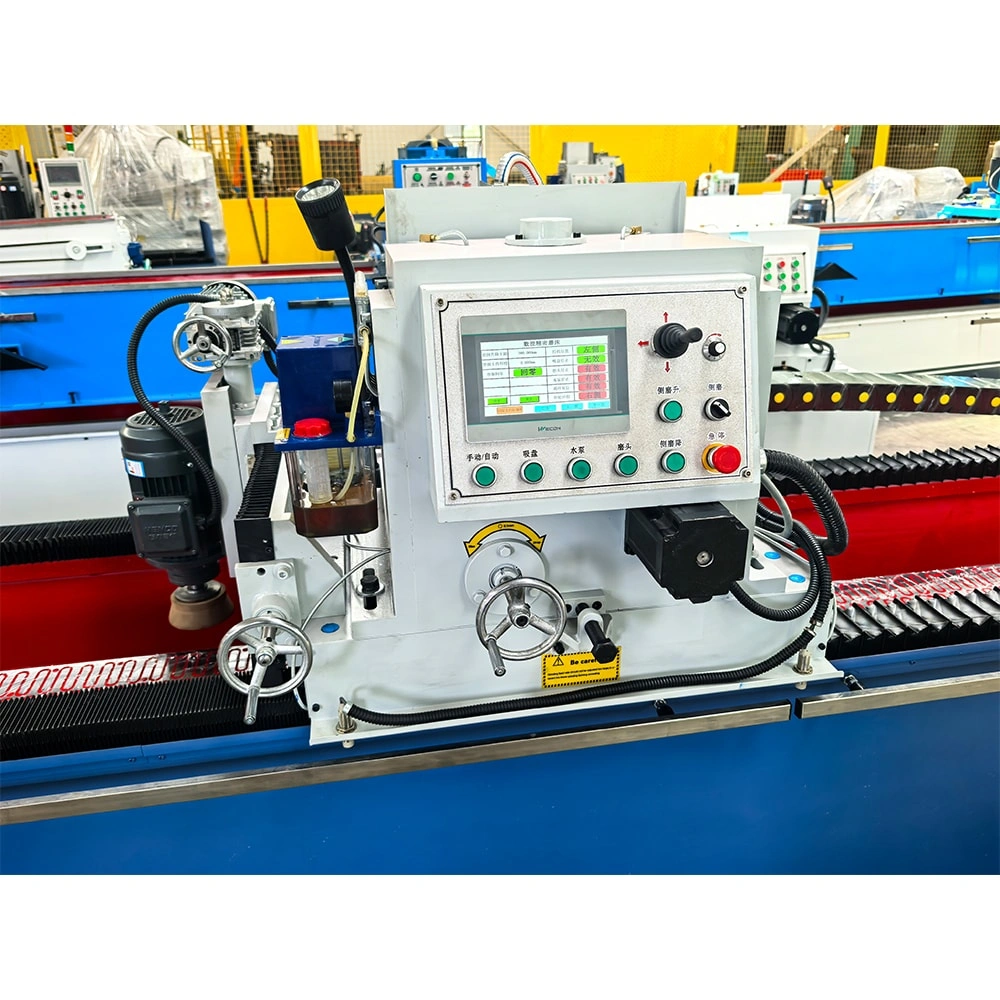

The CNC chipper knife grinder machine is equipped with a PLC control system, and the automatic feeding direction, grinding time, moving speed, etc. can be set through the touch screen.

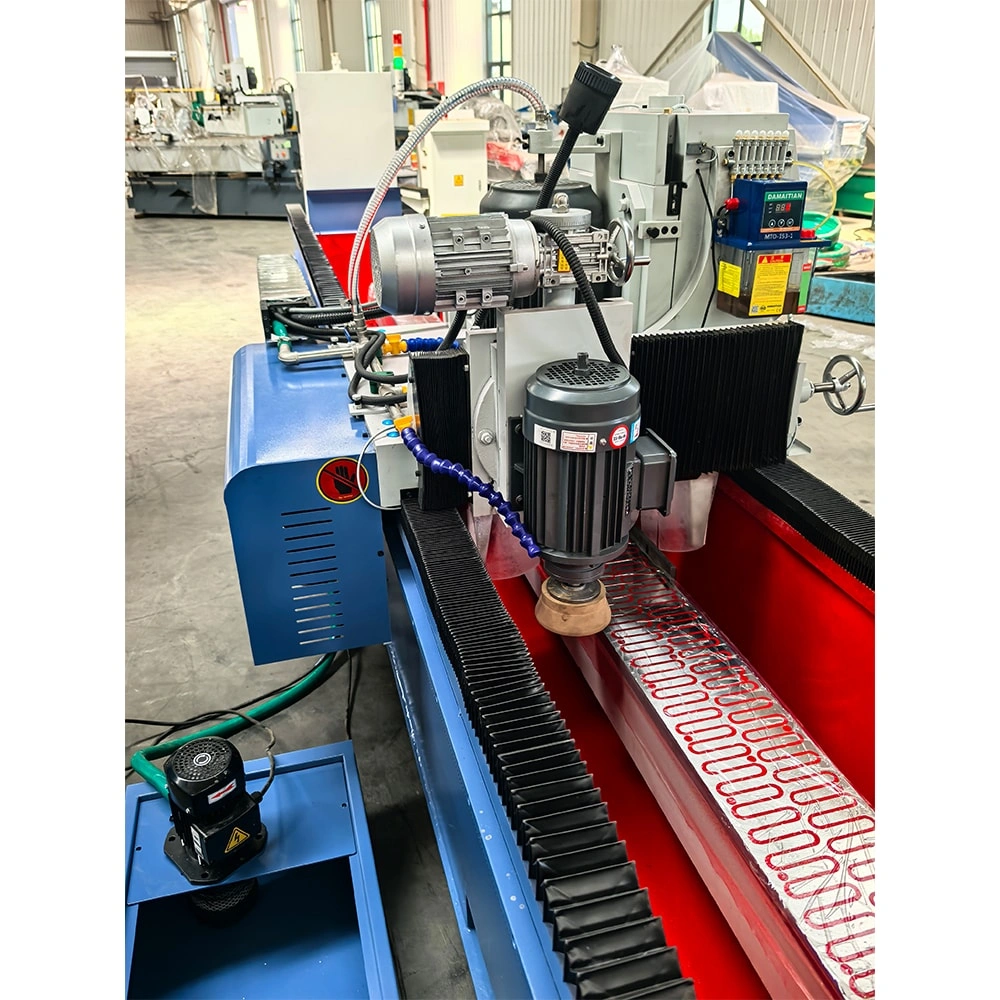

The horizontal movement of the grinding head of the CNC chipper knife grinder adopts linear guides. Linear guides are high-precision, high-rigidity and low-friction linear motion guiding components, which are widely used in mechanical systems.

The CNC chipper knife grinder adopts a water-cooled cooling system to control the temperature in the grinding area, improve grinding quality and efficiency, and protect the cutting tools and grinding wheels.
