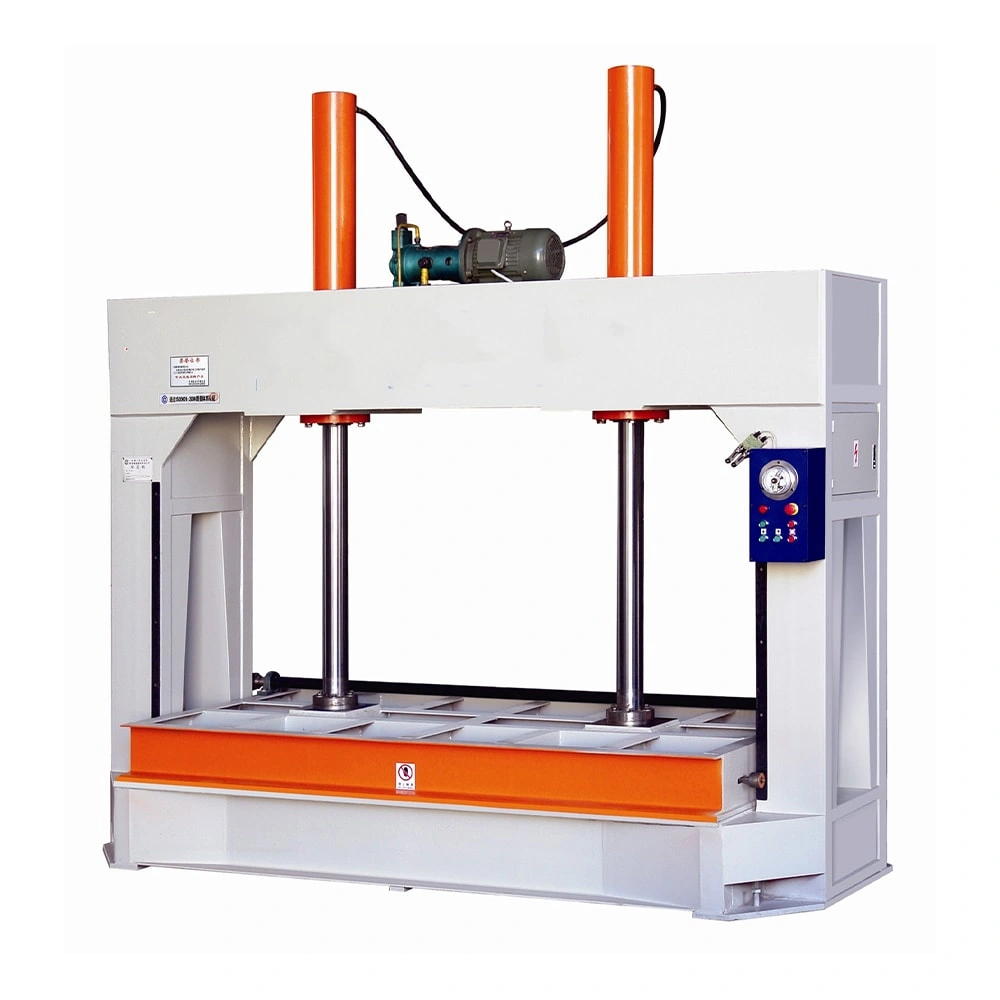

50T Hydraulic Cold Press

50T Hydraulic Cold Press

The cold press is a device that processes and forms at normal temperature. Pressurization is generally achieved through hydraulic transmission. The cold Press adopts an integrated oil cylinder,which can protect against oil leakage for long time use, and can achieve a good pressure holding effect.

Inquiry Contact

Technical parameters

Model	MYJ50T
Max. pressure	50T
Dimension of the platen	1250x2500mm
Working speed	180mm/min
Total power	3Kw
Serve Opening	1000mm
Cylinder Number	2
Cylinder Diameter	Φ110-70mm
Net weight	2800Kg

Video

Characteristic

The cold press is a device that processes and forms at normal temperature. Pressurization is generally achieved through hydraulic transmission.

The cold Press adopts an integrated oil cylinder,which can protect against oil leakage for long time use, and can achieve a good pressure holding effect.

The lower table structure of cold press adopts crisscross welding to make the pressure distribution of the whole table uniform,protect the flatness of the pressing surface for a long time ,and improve the quality of processed products.
